NRH R4201-100 Spring Handle | SPCC Chrome Plated 25kg Equipment Pull

NRH R4201-100 Spring Handle - SPCC Steel, Chrome Plating, Rubber Grip, 25kg Load

The NRH R4201-100 is a professional‑grade spring handle, a reliable component manufactured by NRH Box Hardware with a heritage since 1996. Engineered for durability and daily operation, it is constructed from SPCC steel with a bright and protective chrome plating finish. The handle incorporates a comfortable black rubber grip for a secure, non‑slip hold. Its integrated spring mechanism ensures smooth extension for carrying and provides automatic retraction to a flush, space‑saving position when released. Weighing 126g with a 245N (25kg) tensile load, it offers an optimal blend of strength and practicality for diverse industrial and commercial applications. The product is marked with the “NRH” brand stamp.

Regarding international compliance (ISO 9001:2000, SGS, REACH, RoHS, SVHC), these standards can be supported based on customer requirements and applicable costs - please contact us for specific certification needs. OEM and ODM services are available for custom solutions.

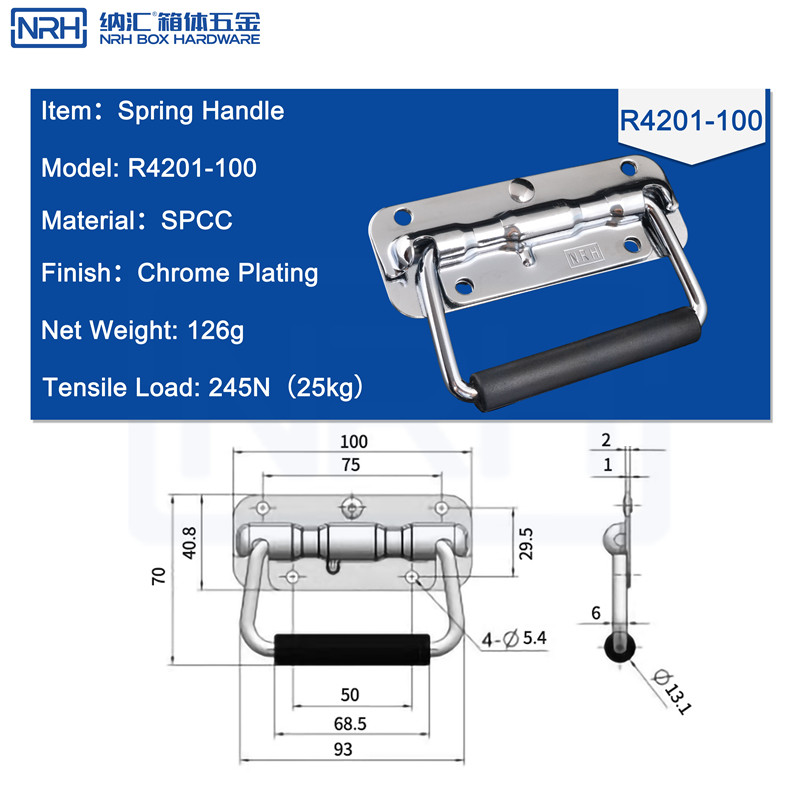

Key dimensions include a base plate total length of 100mm, overall width of 70mm, grip width of 50mm, and hole spacing of 75mm (center‑to‑center), with 4x Ø5.4mm mounting holes.

Primary Applications

• Professional tool and equipment storage: Toolboxes, mobile work carts, and technician's kits
• Instrument and transport cases: Protective cases for portable devices, field instruments, and A/V equipment
• Industrial and electrical enclosures: Access panels and doors on control cabinets, server racks, and modular systems
• General logistics and commercial boxes: Light to medium‑duty shipping and transit containers

How It Works - Spring‑Loaded Mechanism

The handle operates on a dependable spring‑loaded mechanism. To use, pull the rubber‑gripped handle upward; it extends smoothly to a stable working angle. To store, simply release the handle. The internal spring automatically retracts it, folding the handle completely flat against the mounting surface, which ensures a safe, low‑profile, and snag‑free design.

Features & Specifications

• Durable SPCC construction: SPCC steel core with chrome plating offers reliable strength and good corrosion resistance for industrial environments
• Ergonomic rubber grip: A soft black rubber overlay ensures operator comfort and provides a secure, non‑slip hold
• Automatic spring return: The handle retracts to a flush position automatically upon release, maximizing space efficiency and safety
• Optimized load capacity: Rated for a 245N (25kg) tensile load, perfectly suited for the frequent handling of standard‑weight doors, lids, and cases
• Precision engineered mounting: Designed for secure installation with a base plate total length of 100mm, 75mm hole spacing, and 4x Ø5.4mm mounting holes

Technical Specifications

• Brand: NRH Box Hardware
• Model Number: R4201-100
• Product Name: Spring Handle / Equipment Pull
• Primary Material: SPCC Steel
• Surface Finish: Chrome Plating
• Grip Material: Rubber (Black)
• Product Weight: 126g
• Tensile Load: 245N (25kg)
• Key Dimensions: Base Plate Total Length: 100mm, Overall Width: 70mm, Grip Width: 50mm, Hole Spacing (Center): 75mm, Mounting Holes: 4 x Ø5.4mm
• Compliance: ISO 9001:2000, SGS, REACH, RoHS, SVHC (available upon request)
• Additional Info: Manufacturer Since 1996. OEM/ODM Services Available.

Why Trust NRH

NRH Box Hardware has been producing industrial spring handles and hardware since 1996. The NRH R4201-100 is made under a certified quality management system. Compliance with ISO, SGS, REACH, RoHS, or SVHC is available upon request - please inquire for feasibility and pricing. Our long‑standing expertise in steel handles ensures a reliable product for critical applications.
