NRH R4201-140 Heavy Duty Spring Handle | 40kg Load SPCC Chrome Plated

NRH R4201-140 Heavy Duty Spring Handle - SPCC Steel, Chrome Plating, Rubber Grip, 40kg Load

The NRH R4201-140 is a robust heavy‑duty spring handle designed for maximum strength and daily reliability. Manufactured from durable SPCC steel with a bright and protective chrome plating finish, this handle features a comfortable black rubber grip for a secure, non‑slip hold. Its high‑tensile spring mechanism ensures smooth extension for carrying and provides automatic retraction to a flush, space‑saving position when released. Weighing 190g with an impressive 392N (40kg) tensile load, it is engineered for the most demanding industrial and transport applications.

Proudly manufactured by NRH Box Hardware with a heritage since 1996, this handle is produced under a certified quality management system. Regarding international compliance (ISO 9001:2008, SGS, REACH, SVHC, RoHS), these standards can be supported based on customer requirements and applicable costs - please contact us for specific certification needs. OEM and ODM services are available.

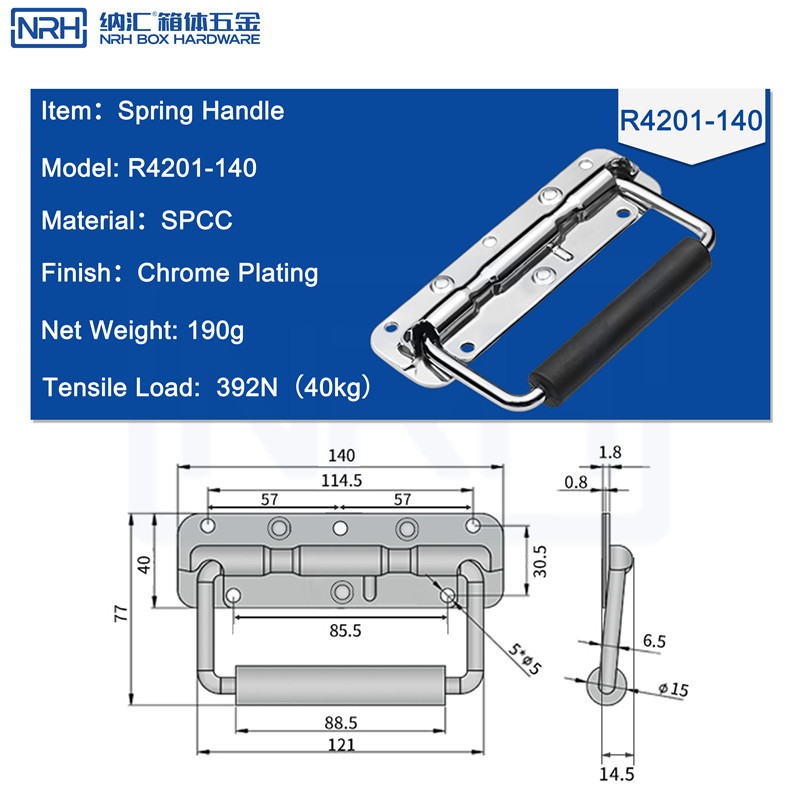

Key dimensions include an overall length of 140mm, mounting base width of 40mm, and hole spacing of 85.5mm, with 5x Φ5mm mounting holes and a material thickness of 0.8mm. Additional drawing dimensions: 114.5mm, 57mm, 6.5mm, 15mm, 88.5mm, 121mm, 14.5mm.

Primary Applications

• Server racks and data cabinets: Heavy doors on server racks, network cabinets, and communication enclosures
• Industrial toolboxes and machinery: Large rolling tool chests, welding equipment cases, and heavy‑duty service kits
• Professional flight and road cases: Extra‑large ATA cases and transit boxes for broadcasting and touring equipment
• Industrial control panels: Large access doors on control and power distribution panels

How It Works - Spring‑Loaded Mechanism

The handle operates on a powerful spring‑loaded mechanism. To use, pull the rubber‑gripped handle upward; it extends smoothly to a stable, locked position for carrying. To store, simply release it. The internal spring automatically and firmly retracts the handle, folding it completely flat against the mounting surface for a safe, streamlined profile.

Features & Specifications

• High load capacity: Rated for a 392N (40kg) tensile load, suitable for lifting heavy lids and cases
• Durable SPCC construction: SPCC steel with chrome plating provides excellent strength and corrosion resistance
• Ergonomic rubber grip: Ensures operator comfort and a secure, non‑slip hold
• Automatic spring return: Retracts flush automatically when released, maximizing space and safety
• Secure mounting: Features 5x Φ5mm mounting holes with 85.5mm hole spacing for stable installation

Technical Specifications

• Brand: NRH Box Hardware
• Model Number: R4201-140
• Product Name: Spring Handle
• Primary Material: SPCC Steel
• Surface Finish: Chrome Plating
• Grip Material: Rubber (Black)
• Product Weight: 190g
• Tensile Load: 392N (40kg)
• Key Dimensions: Overall Length: 140mm, Mounting Base Width: 40mm, Hole Spacing: 85.5mm, Mounting Holes: 5 x Φ5mm, Material Thickness: 0.8mm. Additional drawing dimensions: 114.5, 57, 6.5, 15, 88.5, 121, 14.5mm
• Compliance: ISO 9001:2008, SGS, REACH, SVHC, RoHS (available upon request)
• Additional Info: Manufacturer Since 1996. OEM/ODM Services Available.

Why Trust NRH

NRH Box Hardware has been producing industrial handles and hardware since 1996. The NRH R4201-140 is made under a certified quality management system. Compliance with ISO, SGS, REACH, SVHC, or RoHS is available upon request - please inquire for feasibility and pricing. Our long‑standing expertise in steel spring handles ensures a reliable product for critical applications.
