Spherical Corner Protector In Stock No MOQ

Spherical Corner Protector for Flight Cases - Chrome Plated 52.5mm 3 Holes

Applicable Buyers

• Large flight case and ATA case manufacturers
• Heavy equipment and machinery transport case builders
• Military and defense case suppliers
• Medical equipment transport case manufacturers
• Industrial tool box and heavy-duty case producers

Request Sample Contact Sales

Core Design Principles

Engineering Principle: Impact Energy Distribution

The spherical curved surface operates on a fundamental physics principle - converting a single-point impact into multi-directional force distribution across the dome. Unlike flat or right-angle corners where impact force concentrates at the screw holes (causing pull-through failure and wood splitting), the spherical geometry reduces localized pressure by spreading the load across the entire domed surface. This design effectively minimizes peak force, eliminating the stress concentration that leads to case cracking and deformation.

Scratch and Snag Prevention

The design fully encloses sharp metal edges of cases and containers, eliminating dangerous protrusions. It won't snag tarpaulins, scratch operators, or damage surrounding equipment during transport.

Structural Mechanics Optimization

The spherical raised section creates a natural "buffer cavity." On impact, it absorbs energy through slight elastic deformation, further reducing vibration transmitted to the case interior and protecting sensitive equipment.

Technical Specifications

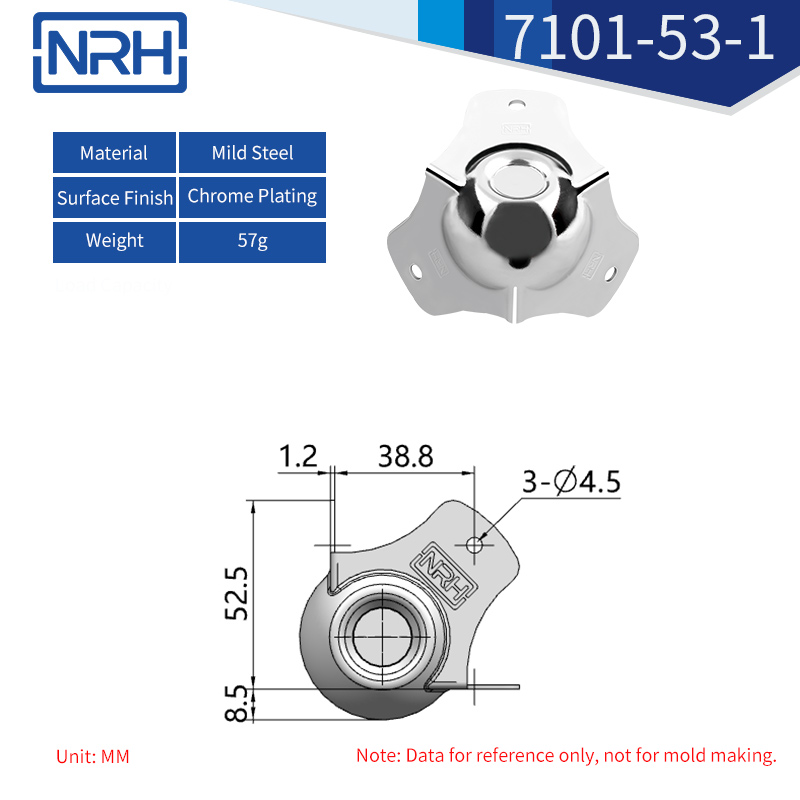

Data based on engineering drawing 7101-53-1-FE-CR. For reference only - not for mold making.

Why Choose This 52.5mm Model

Maximum Coverage Area

At 52.5mm total width, this is the widest model in the NRH spherical corner protector series. It is specifically engineered for large-format cases with thick edges that require maximum surface protection - ideal for heavy-duty equipment cases, large flight cases, and multi-plywood box structures where the wider footprint provides the most comprehensive edge coverage and impact energy absorption.

3-Hole Fixation System

Three mounting holes (Ø4.5mm) provide secure fixation, compatible with M4 or M5 rivets or self-tapping screws. The triangular hole layout creates a geometrically stable mounting pattern that resists rotation under impact. Installation is quick and straightforward - each corner takes less than 3 minutes to mount.

Material and Finish

Engineering Principle: Chrome Plating Protection

Chrome plating is an electrochemical process that deposits a thin layer of chromium onto the steel substrate. This provides:

• Corrosion barrier: The chromium layer acts as a passive film that resists oxidation, preventing rust formation even in high-humidity environments such as shipping containers.
• Surface hardness: Chrome plating increases surface hardness (up to 800-1000 HV), providing scratch and abrasion resistance during transport and handling.
• Low friction coefficient: The smooth chrome surface reduces friction when cases slide against each other during stacking.

Base Material: Mild Steel

Provides sufficient strength for standard case protection requirements with good formability and structural stability. Unlike zinc alloy which fractures on impact, mild steel may dent but remains functional.

Application Guide

Installation and Maintenance

Installation Steps:

1. Verify case corner flatness and clean the mounting surface
2. Position the corner protector against the case edge
3. Pre-drill with a 4.0mm drill bit at marked positions (slightly smaller than 4.5mm to ensure tight fastener fit)
4. Clear debris and burrs from holes
5. Secure with M4 or M5 rivets or self-tapping screws - under 3 minutes per corner

Maintenance:

• Wipe with a soft cloth and mild detergent
• Do not use thinners, strong acids, or strong alkalis - these damage the plating
• For welding, use unplated blanks to avoid heat damage to the finish
• Store in dry, ventilated areas - avoid prolonged damp conditions

Model Comparison (Within Series)

Why Industry Professionals Choose NRH

Trusted by Case Manufacturers Worldwide

NRH hardware is used by professional case manufacturers across North America, Europe, and Asia. Our corner protectors are installed on flight cases for major touring artists, medical equipment transport boxes for hospitals, and military-grade shipping containers for defense contractors.

Proven in the Field

• A European audio equipment distributor reported zero corner-related failures after switching to NRH spherical corners for their rental fleet
• A medical device manufacturer chose NRH for their hospital-grade transport cases requiring corrosion resistance and easy sanitation
• Multiple ATA case builders in the US specify NRH as their preferred corner hardware

About NRH

NRH started manufacturing case hardware in 1996, with over 25 years of brand history.

Four product lines: latches, handles, hinges, and corner protectors. Over 3,000 product variations. OEM/ODM supported.

Certifications:

• National High-Tech Enterprise (2023)
• ISO 9001 Quality Management (2018)

Our hardware is used in military cases, medical equipment cases, ATA flight cases, and touring equipment cases across multiple export markets.

Five production and distribution centers: Shanghai HQ, plus Beijing, Guangzhou, Zhengzhou, and Chongqing.

In Stock - No Minimum Order

No 500-piece minimum. No 100-piece minimum. Order 1 piece and we ship.

First-time buyers often need to test fit before committing. Order a few samples. Test them on your cases. Verify dimensions, finish, and installation. When you're satisfied, order production quantities.

Same-day dispatch on payment confirmation.

Key Takeaways

• 52.5mm width provides maximum case edge coverage - the widest model in the NRH spherical corner protector series
• Spherical dome design distributes impact energy across curved surface, reducing point stress concentration
• 3-hole triangular mounting pattern delivers stable, rotation-resistant fixation for most applications
• Chrome plating provides corrosion resistance, surface hardness, and low-friction finish
• Mild steel base material offers strength with ductility - dents rather than fractures on impact
• 1.2mm material thickness optimized for strength-to-weight ratio
• 3 × Ø4.5mm mounting holes compatible with M4 or M5 fasteners
• In stock with no minimum order - samples ship same day
• Customizable in 304/316 stainless steel and alternative finishes
• NRH has been manufacturing case hardware since 1996 with ISO 9001 certification

Contact Sales

Email: nrh-gz@nrh.cn
Phone: +86 180 1797 5137

For bulk pricing, customization, or sample requests, contact our sales team directly.

When inquiring, please provide: Model number + quantity + destination port.
