Wide Spherical Corner Protector 57.5mm Chrome Plated

Spherical Corner Protector for Flight Cases - Chrome Plated 57.5mm 3 Holes

Applicable Buyers

• Large flight case and ATA case manufacturers
• Heavy equipment and machinery transport case builders
• Military and defense case suppliers
• Medical equipment transport case manufacturers
• Industrial tool box and heavy-duty case producers

Request Sample Contact Sales

Core Design Principles

Engineering Principle: Impact Energy Distribution

The spherical curved surface operates on a fundamental physics principle - converting a single-point impact into multi-directional force distribution across the dome. Unlike flat or right-angle corners where impact force concentrates at the screw holes (causing pull-through failure and wood splitting), the spherical geometry reduces localized pressure by spreading the load across the entire domed surface. This design effectively minimizes peak force, eliminating the stress concentration that leads to case cracking and deformation.

Scratch and Snag Prevention

The design fully encloses sharp metal edges of cases and containers, eliminating dangerous protrusions. It won't snag tarpaulins, scratch operators, or damage surrounding equipment during transport.

Structural Mechanics Optimization

The spherical raised section creates a natural "buffer cavity." On impact, it absorbs energy through slight elastic deformation, further reducing vibration transmitted to the case interior and protecting sensitive equipment.

Technical Specifications

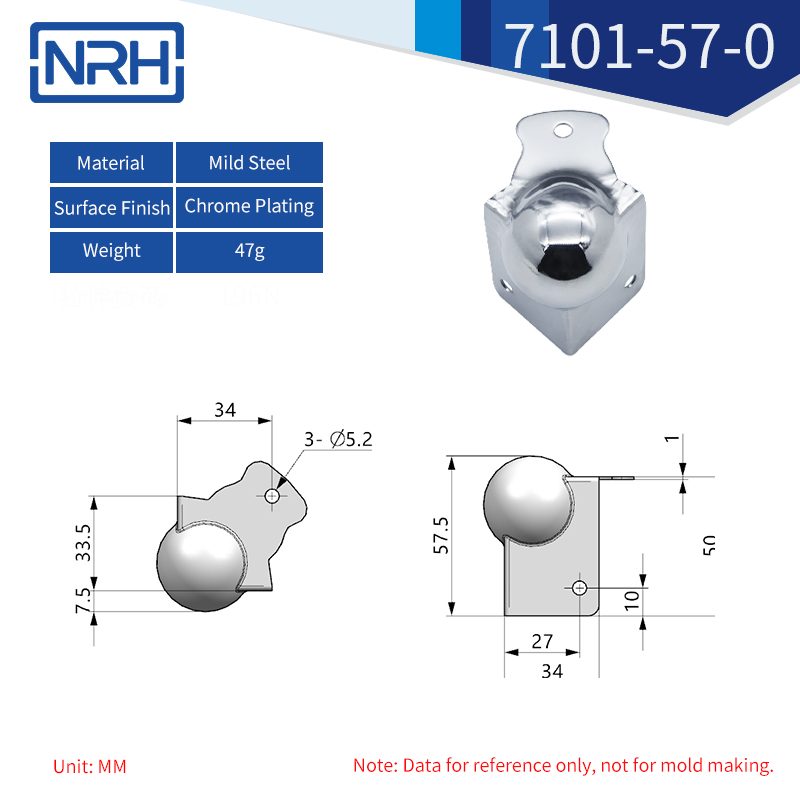

Data based on engineering drawing 7101-57-0-FE-CR. For reference only - not for mold making.

Why Choose This 57.5mm Model

Maximum Coverage at Light Weight

At 57.5mm total width, this is the widest model in the NRH spherical corner protector series, offering comprehensive edge coverage for large-format cases. The 1.0mm material thickness keeps weight at just 47g, making it ideal for airline-shipped flight cases where every gram counts while still providing maximum surface protection.

3-Hole Fixation System

Three mounting holes (Ø5.2mm) provide secure fixation, compatible with M5 rivets or self-tapping screws. The triangular hole layout creates a geometrically stable mounting pattern that resists rotation under impact. Installation is quick and straightforward - each corner takes less than 3 minutes to mount.

Application Guide

About NRH

NRH started manufacturing case hardware in 1996, with over 25 years of brand history.

Four product lines: latches, handles, hinges, and corner protectors. Over 3,000 product variations. OEM/ODM supported.

Certifications:

• National High-Tech Enterprise (2023)
• ISO 9001 Quality Management (2018)

Five production and distribution centers: Shanghai HQ, plus Beijing, Guangzhou, Zhengzhou, and Chongqing.

In Stock - No Minimum Order

No 500-piece minimum. No 100-piece minimum. Order 1 piece and we ship.

First-time buyers often need to test fit before committing. Order a few samples. Test them on your cases. Verify dimensions, finish, and installation. When you're satisfied, order production quantities.

Same-day dispatch on payment confirmation.

Key Takeaways

• 57.5mm width provides maximum case edge coverage - widest model in the NRH series
• 1.0mm thickness offers lighter weight (47g) with robust impact resistance
• Spherical dome design distributes impact energy across curved surface, reducing point stress concentration
• 3-hole triangular mounting pattern delivers stable, rotation-resistant fixation
• Chrome plating provides corrosion resistance, surface hardness, and low-friction finish
• Mild steel base material offers strength with ductility - dents rather than fractures on impact
• 3 × Ø5.2mm mounting holes compatible with M5 fasteners
• In stock with no minimum order - samples ship same day
• Customizable in 304/316 stainless steel and alternative finishes
• NRH has been manufacturing case hardware since 1996 with ISO 9001 certification

Contact Sales

Email: nrh-gz@nrh.cn
Phone: +86 180 1797 5137

For bulk pricing, customization, or sample requests, contact our sales team directly.

When inquiring, please provide: Model number + quantity + destination port.
