Wide Corner Protector 76mm Chrome Plated 6 Holes

Wide Corner Protector for Flight Cases - Chrome Plated 76mm 6 Holes

Applicable Buyers

• Flight case and ATA case manufacturers working with extra wide boxes
• Heavy equipment and machinery transport case builders
• Military and defense case suppliers requiring rugged hardware
• Industrial tool box and heavy-duty case producers
• Anyone building cases with thick plywood edges needing maximum coverage

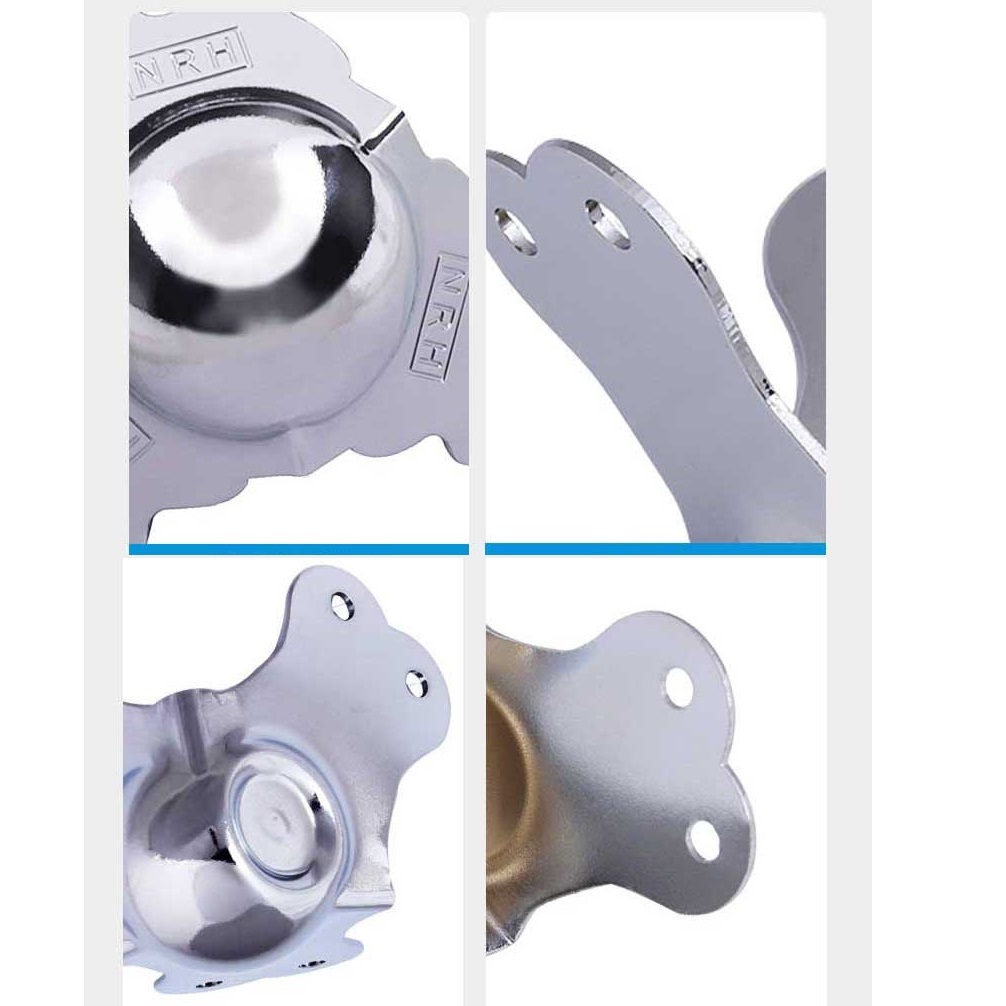

What Makes This Corner Protector Different

How It Works: The Engineering Behind the Spherical Design

Spherical corner protectors (also known as ball corners) are specialized hardware designed for flight cases, equipment cases, and heavy-duty storage boxes. The defining feature is the spherical raised structure at the edge - it disperses impact through curved surfaces rather than concentrating force at a single point.

How it works: When a case corner takes a hit, the spherical surface converts a single-point impact into multi-directional force distribution across the dome. Unlike flat or right-angle corners where impact force concentrates at the screw holes (causing pull-through failure and wood splitting), the spherical geometry reduces localized pressure by spreading the load across the entire domed surface. This design effectively minimizes peak force, eliminating the stress concentration that leads to case cracking and deformation.

Additional benefits: The design fully encloses sharp metal edges of cases, eliminating dangerous protrusions that snag tarpaulins, scratch operators, or damage surrounding equipment. When stacking cases, spherical surfaces create point contact rather than surface contact, reducing friction and making separation easier. The chrome plating provides corrosion resistance and easy cleaning - essential for shipping container environments.

Widest Coverage in the Series

At 76mm total width with 63.5mm face length, this is the widest model in the NRH spherical corner protector series. If you're building cases with thick plywood (12mm, 15mm, or even 18mm Baltic birch), this model wraps completely around the edge, protecting the entire vulnerable area. No exposed edges, no gaps.

Optimized 1.3mm Thickness

Most corner protectors are either 1.0mm (too thin for heavy-duty) or 1.5mm (heavy). At 1.3mm, this model hits the sweet spot - thicker than standard corners for better impact resistance, but lighter than 1.5mm options at just 80g. Balanced strength for demanding applications.

6 Holes. Not 4. Not 3.

More anchor points mean less movement. Under vibration or repeated impacts, 3-hole corners can rotate. 6 holes lock the corner in place across the entire face. Use M5 rivets or self-tapping screws, and it stays where you put it - no twisting, no loosening.

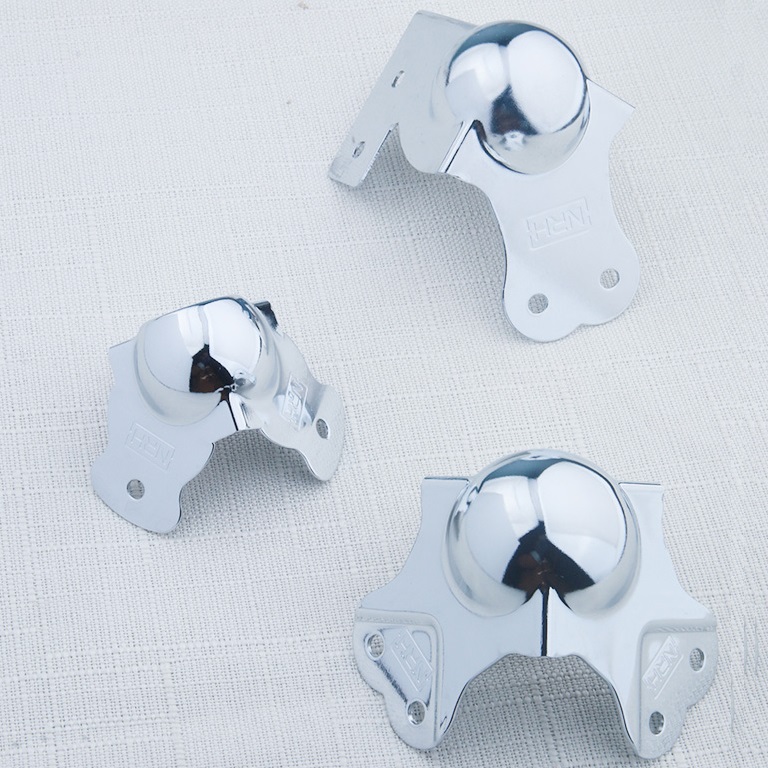

Spherical vs. Right-Angle: What's the Difference?

Why Choose This 76mm Model

1. You need the widest coverage available. At 76mm total width and 63.5mm face length, this covers thicker plywood edges than any other NRH model. If your case uses 12mm, 15mm, or 18mm Baltic birch, this gives complete protection without exposed edges.

2. You need balanced strength without excess weight. 1.3mm steel is thicker than standard 1.0mm or 1.2mm corners, but lighter than 1.5mm options at just 80g. It takes hard hits without adding unnecessary weight for air freight.

3. You need it to stay put under vibration. 6 mounting holes lock the corner in place across the entire face. Under vibration or rough handling, it won't twist or shift like 3-hole designs can.

4. You're building for extra wide, demanding conditions. Oversized flight cases, heavy industrial equipment, military shipping containers - this model is built for the widest, toughest jobs where standard corners simply don't provide enough coverage.

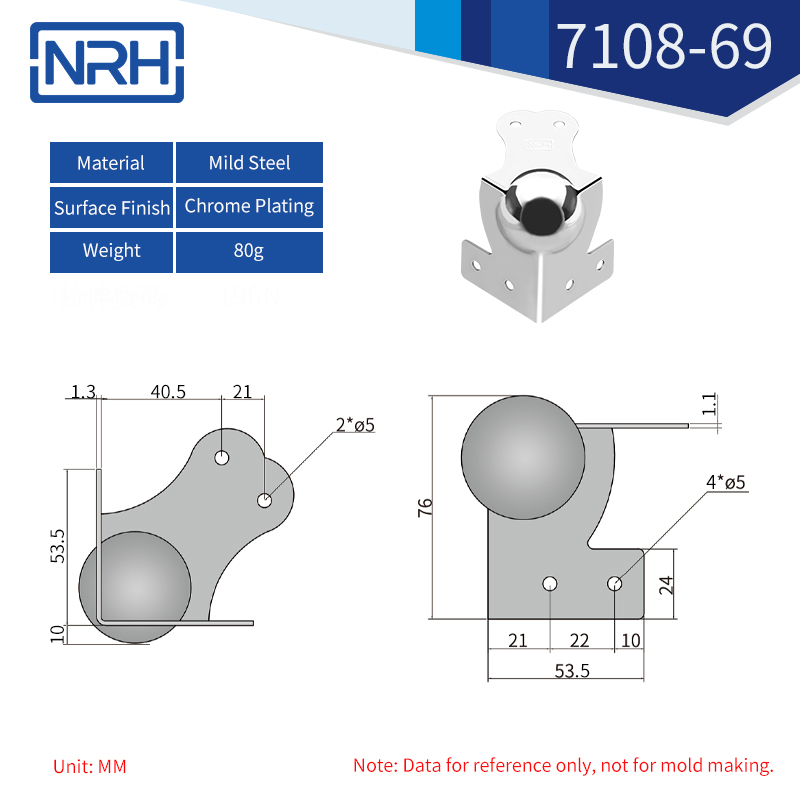

Technical Specifications

Data based on engineering drawing 7108-69-FE-CR. For reference only - not for mold making.

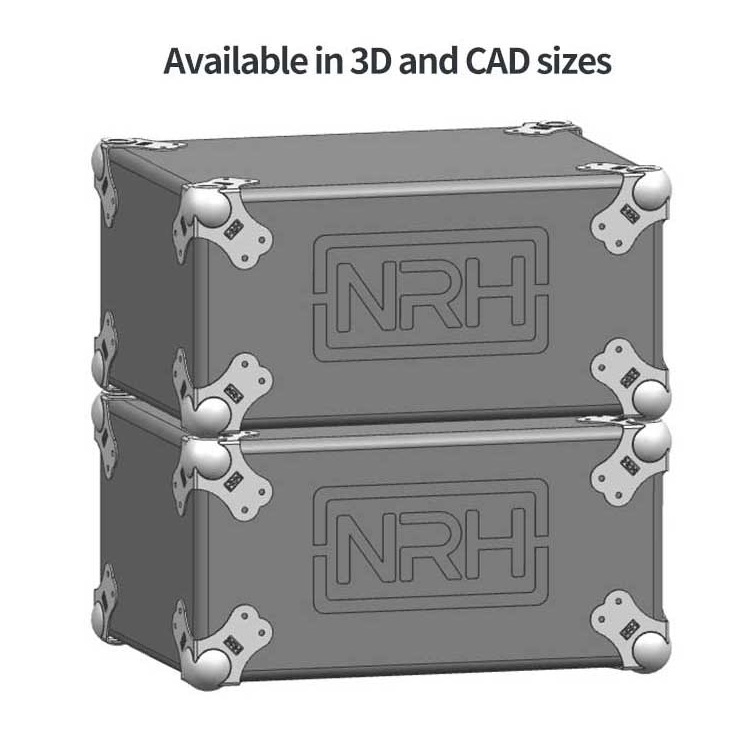

Proven in the Field

NRH corner protectors are used by case manufacturers across North America, Europe, and Asia. Applications range from touring audio equipment flight cases and medical device transport boxes to military-grade shipping containers and heavy industrial equipment cases.

Common applications include:

• ATA flight cases for professional audio and lighting equipment
• Medical equipment transport cases requiring corrosion resistance
• Military-grade containers for field operations
• Heavy industrial machinery transit boxes
• Oversized tool boxes and workshop equipment cases

Application Guide

About NRH

NRH started manufacturing case hardware in 1996, with over 25 years of brand history.

Four product lines: latches, handles, hinges, and corner protectors. Over 3,000 product variations. OEM/ODM supported.

Certifications:

• National High-Tech Enterprise (2023)
• ISO 9001 Quality Management (2018)

Five production and distribution centers: Shanghai HQ, plus Beijing, Guangzhou, Zhengzhou, and Chongqing.

In Stock - No Minimum Order

No 500-piece minimum. No 100-piece minimum. Order 1 piece and we ship.

First-time buyers often need to test fit before committing. Order a few samples. Test them on your cases. Verify dimensions, finish, and installation. When you're satisfied, order production quantities.

Same-day dispatch on payment confirmation.

Key Takeaways

• 76mm total width + 63.5mm face length - widest model in the NRH series
• 1.3mm steel - balanced thickness, stronger than 1.0/1.2mm, lighter than 1.5mm
• 6-hole fixation - locks the corner in place, prevents twisting under vibration
• Spherical dome - spreads impact force across the surface, not at a single point
• Chrome plating - corrosion resistance, surface hardness, easy to clean
• Mild steel - dents rather than fractures, stays functional after impacts
• 6 × Ø5mm holes - compatible with M5 rivets or self-tapping screws
• 80g weight - substantial protection without excess weight for air freight
• In stock - no minimum order, samples ship same day
• Customizable in 304/316 stainless steel and alternative finishes upon request
• NRH manufacturing case hardware since 1996 - ISO 9001 certified

Contact Sales

Email: nrh-gz@nrh.cn
Phone: +86 180 1797 5137

For bulk pricing, customization, or sample requests, contact our sales team directly.

When inquiring, please provide: Model number + quantity + destination port.
