Chrome Plated Corner Protector for Flight Case

Product Overview

Model: 7101-40-FE-CR
Material: Iron (Mild Steel)
Finish: Chrome Plated
Weight: 25g
Dimensions: 44.5 × 44.5 × 1.2 mm
Mounting Holes: 6 × Ø5.2 mm

Request Sample Contact Sales

What This Corner Protector Does

Flight cases, equipment racks, and transit cases take abuse. Loading, stacking, cargo handling - the corners absorb the impact every time.

One bad hit can split the plywood, crack the edge, and compromise the entire case. Repairing a damaged corner costs more in labor and materials than buying a new corner protector.

The 7101-40-FE-CR mounts on all eight corners of a case. It takes the hit so your case doesn't have to. At 25g per piece, eight corners add only 200g to total weight - no shipping cost penalty - but the difference in case lifespan is months vs. years.

Why Spherical Beats Right-Angle

The Problem with Right-Angle Corners

When a right-angle corner hits the ground, the impact force concentrates at the two screw holes. Enough force and the screws pull through, the wood splits, the entire corner fails. Sharp edges can also cut hands and snag cargo during handling.

How the Spherical Design Fixes It

The spherical (domed) surface spreads impact force across the curved surface rather than concentrating it at a single point. The same impact that would destroy a right-angle corner might only dent a spherical one - and it keeps working.

When stacking cases, spherical surfaces create point contact, not surface contact. Less friction means easier separation. No prying, no damage.

Why Chrome Plating Matters

Not just for appearance. Shipping containers see high humidity and temperature swings. Painted corners rust after one ocean voyage. Chrome plated corners don't - and they wipe clean with a damp cloth.

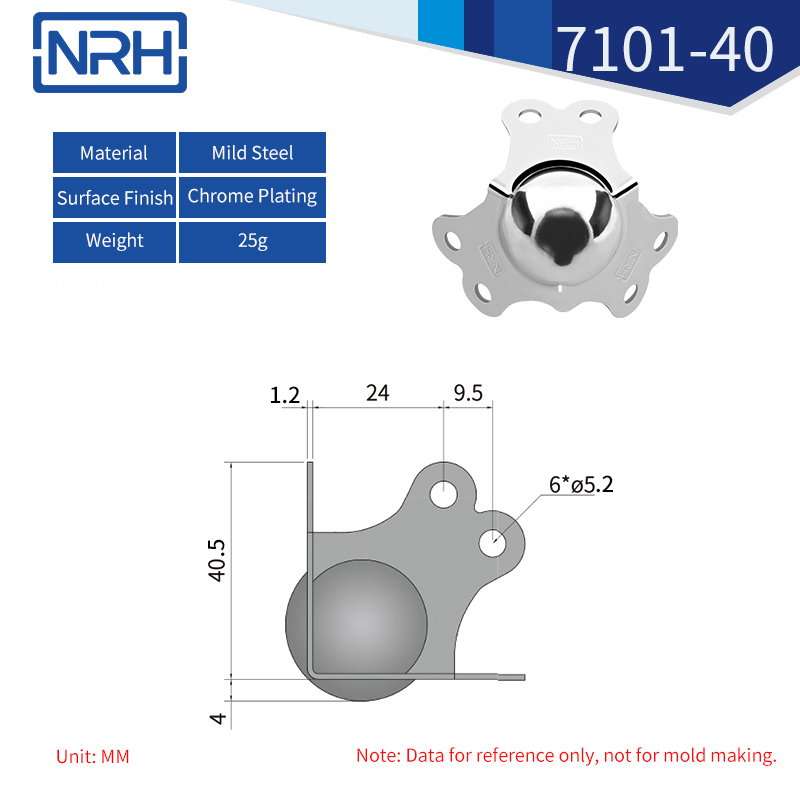

Technical Specifications

Data based on engineering drawing 7101-40-FE-CR. For reference only - not for mold making.

Why These Specs Matter

6 Mounting Holes (Not 4)

Industry standard is 4 holes. We use 6. Two additional anchor points prevent rotation on impact and maintain clamping force under vibration. Install one and try to twist it - 4-hole corners shift; 6-hole corners don't.

1.2mm Wall Thickness

Too thin and it crumples on impact, offering no protection. Too thick and it adds unnecessary weight and cost. At 1.2mm, it's optimized for this size - strong enough to handle routine impacts without adding bulk.

44.5×44.5mm Footprint

Fits most standard flight case and equipment rack corner dimensions. Not sure if it fits? Measure your case corner width. If it matches, it fits.

Flat Corner vs. Spherical Corner

Applications

• ATA flight cases
• Touring equipment cases
• Stage lighting transit cases
• Medical equipment transport cases
• Military transport cases
• Industrial tool boxes
• Instrument and meter cases

Installation Instructions

1. Position the corner protector against the case edge. The two flanges should sit flush against both adjacent panels.
2. Pre-drill with a 4.5mm drill bit (slightly smaller than 5.2mm to prevent wood splitting).
3. Clear all debris and burrs from the holes.
4. Secure with M5 rivets or self-tapping screws.

Important: Tighten firmly. Do not over-torque - excessive force can crush the plywood core.

About NRH Nahui

NRH started manufacturing case hardware in 1996, with over 25 years of brand history.

Four product lines: latches, handles, hinges, and corner protectors. Over 3,000 product variations. OEM/ODM supported.

Certifications:

• National High-Tech Enterprise (2023)
• ISO 9001 Quality Management (2018)

Our hardware is used in military cases, medical equipment cases, ATA flight cases, and touring cases across multiple export markets.

Five production and distribution centers: Shanghai HQ, plus Beijing, Guangzhou, Zhengzhou, and Chongqing.

Lead Time

Stock items: Ships same day payment is received.

Custom orders: Material changes, size adjustments, finish options, and logo stamping typically require 15-20 business days depending on complexity and quantity. Some special processes may take up to 30 days - confirm at time of order.

Quality Assurance

NRH is ISO 9001 certified. Quality control covers every stage: product development, material management, production control, packaging, and shipping.

• Supplier management: Strict supplier review with quality assurance agreements
• Production standards: Detailed work instructions ensure consistent quality
• Incoming/outgoing inspection: Products must pass inspection before warehousing or shipping. Non-conforming items are reworked and re-inspected

Our philosophy: Quality builds reputation. Reputation builds the brand.

After-Sales Support

We stand behind our products.

• Full refund for quality issues: If a quality issue is confirmed, we refund the full purchase price
• 5-minute response: Customer support team responds within 5 minutes

In Stock - No Minimum Order

No 500-piece minimum. No 100-piece minimum. Order 1 piece and we ship.

First-time buyers often need to test fit before committing. Order a few samples. Test them on your cases. Verify dimensions, finish, installation. When you're satisfied, order production quantities.

Same-day dispatch on payment confirmation.

How to Confirm You Have the Right Model

Different suppliers use different names: spherical corner protector, ball corner, round corner guard, flight case corner.

If you're unsure about the model, check these dimensions:

• Width: 44.5mm
• Height: 44.5mm
• 6 mounting holes at Ø5.2mm
• 1.2mm material thickness

Match all four - it's the same part. Not sure? Contact us with drawing number 7101-40-FE-CR - we'll confirm fit.

Request a Sample or Contact Sales

Email: nrh-gz@nrh.cn · Phone: +86 180 1797 5137

For bulk pricing, customization, or sample requests, contact our sales team directly.

When inquiring, please provide: Model number + quantity + destination port.
