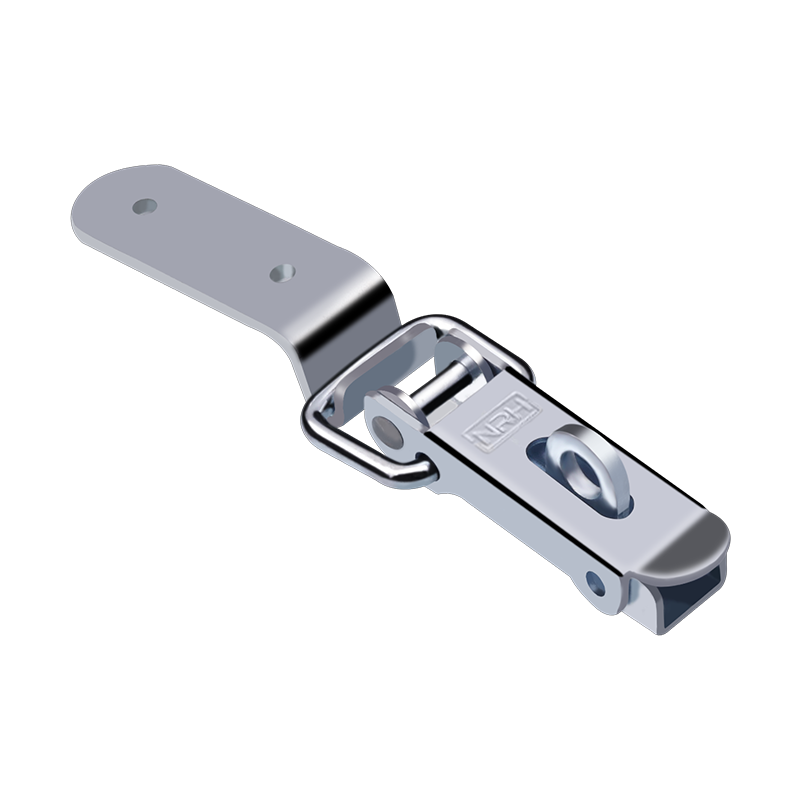

Latch 5410-88k 3D Model

Product Overview

The 5410-88k heavy-duty latch delivers robust, secure latching performance for demanding industrial applications and heavy enclosures. Engineered to withstand significant forces and harsh operating conditions, it provides reliable closure when equipment integrity is critical.

Design & Construction

The 5410-88k heavy-duty latch incorporates a heavy-duty toggle mechanism engineered for rigorous industrial use on large enclosures, heavy equipment, and transportation cases. The massive base plate distributes loads across a wide mounting area, and the forged or heavy-stamped steel components deliver exceptional tensile strength. An adjustable catch assembly allows precise tuning of latching force and closure depth.

Materials & Finish

Built from sturdy Cold-Rolled Carbon Steel (SPCC) with a Zinc Plated coating, the 5410-88k latch delivers strong, reliable latching performance with good corrosion resistance for typical industrial environments. The steel construction provides the tensile strength needed for secure latching under load, while the surface finish adds a layer of protection against oxidation and wear.

Performance & Specifications

The 5410-88k heavy-duty latch delivers substantial latching force for heavy enclosures, transportation equipment, and demanding industrial applications. The reinforced mechanism is built to handle high loads and harsh conditions, with heavy-gauge components that resist deformation and maintain performance over extended service life. The over-center lock provides a wide safety margin against accidental release, even under significant vibration and shock loads. Working load: 60kg.

Typical Applications

The 5410-88k heavy-duty latch is essential for heavy equipment enclosures, transportation cases, large industrial machinery, and outdoor equipment where secure closure under demanding conditions is critical. It is commonly used on heavy construction equipment access panels, railway equipment enclosures, military and defense equipment cases, and large generator housings. The robust construction ensures reliable latching even when subjected to vibration, shock loads, and harsh environmental conditions.

Installation & Usage

Heavy-duty latches such as the 5410-88k demand careful, professional installation for safe, reliable performance in demanding applications. Start by evaluating the mounting structure to ensure it can handle the rated latching and pull-up forces without yielding or fatigue failure. Add reinforcement plates or structural backing where needed, especially on thinner panel materials. Carefully position and mark both the latch body and catch locations, maintaining precise alignment for proper engagement. Drill or machine mounting holes for heavy-duty fasteners, then install both components with appropriate hardware and backing support. Adjust the catch position to achieve the desired tension and over-center lock, then thoroughly test the installation. Create a maintenance and inspection schedule to verify tightness, wear, and proper latching performance at regular intervals throughout the service life.

Why Choose NRH

With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.

Every Latch in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
