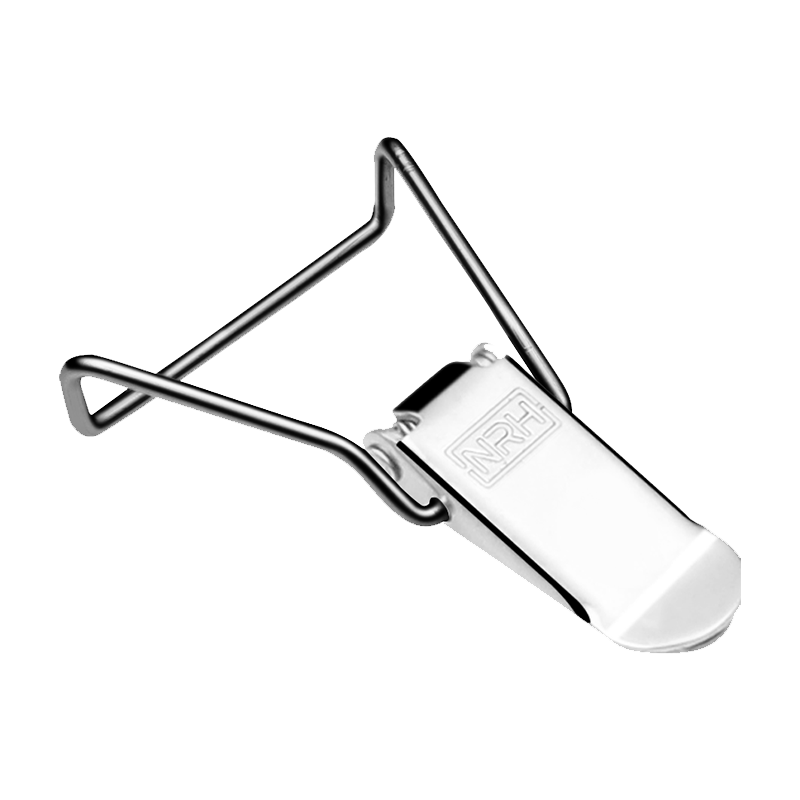

Latch 5203-85 3D Model

Product Overview

Versatile and dependable, the 5203-85 latch is built for medium-duty industrial applications. Its balanced construction ensures positive latching while maintaining ease of use for operators accessing equipment regularly.

Design & Construction

Built with a heavy-duty hook and catch assembly, this medium-duty latch provides strong, positive latching for industrial cabinets and equipment enclosures. The lever design offers good mechanical advantage for drawing panels tightly together, and the spring-supported mechanism maintains tension even under varying load conditions. Mounting holes are sized and spaced for straightforward installation on standard enclosure profiles.

Materials & Finish

Constructed from durable 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC), the 5203-85 latch offers exceptional resistance to corrosion and oxidation, making it well-suited for outdoor, marine, and food industry applications. The stainless steel material maintains its appearance and structural properties even under continuous exposure to moisture, salt air, and cleaning chemicals, ensuring long-term reliable performance.

Performance & Specifications

Engineered for dependable industrial use, the 5203-85 latch provides secure closure with good mechanical advantage for drawing panels tightly together. The latch mechanism is designed for smooth, positive operation with a clear engagement point that gives operators confidence the latch is properly secured. Rated working load: 25kg. Performance ratings assume proper installation and use within recommended parameters.

Typical Applications

The 5203-85 medium-duty latch is widely used across industrial and commercial applications for securing equipment enclosures, control cabinets, and access panels. Common applications include electrical distribution cabinets, industrial machine enclosures, network and server racks, HVAC equipment access doors, and industrial tool storage. The dependable latching performance and straightforward installation make it a standard choice for panel builders and enclosure manufacturers.

Installation & Usage

Proper installation of the 5203-85 latch is essential for dependable performance and long service life. Begin by marking the latch location on the door, taking into account the required clearance and ergonomic access height. Drill mounting holes and install the latch body securely using appropriate fasteners. Next, transfer the catch position to the frame using a marking tool or by carefully measuring the alignment. Install the catch or keeper plate, leaving room for initial adjustment. Close the latch and check engagement quality and pull-up force. Adjust the catch position as needed to achieve proper latching with adequate gasket compression (if applicable) and a positive over-center feel. Once adjusted, tighten all fasteners securely. Test the latch through multiple cycles to confirm consistent operation.

Why Choose NRH

With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.

Every Latch in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
