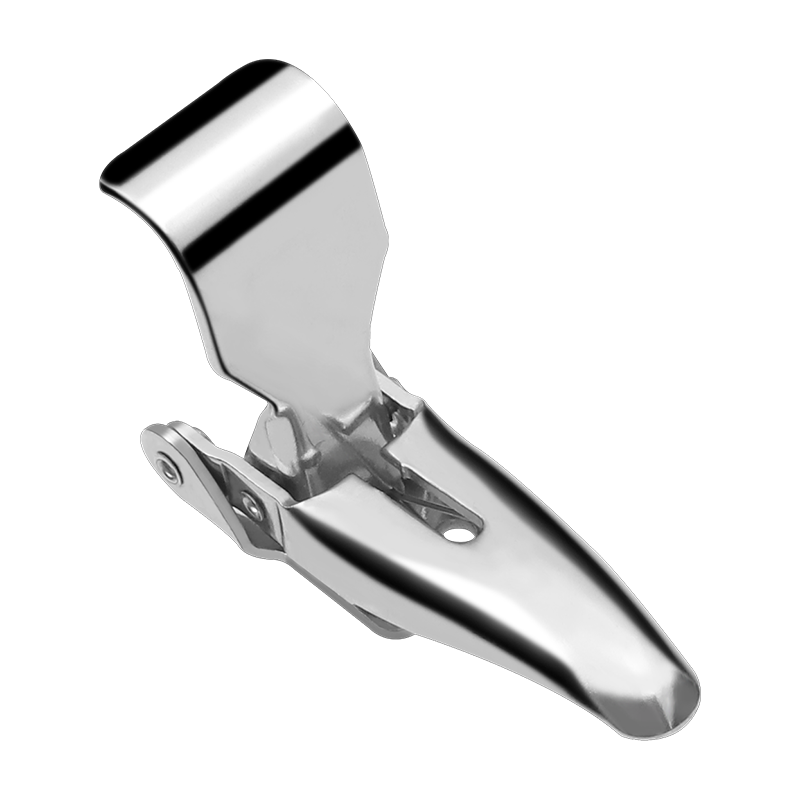

Latch 5253-106 3D Model

Product Overview

Built for heavy-duty industrial environments, the 5253-106 latch provides strong, dependable closure for heavy enclosures, equipment cabinets, and transportation cases. The reinforced construction ensures reliable performance even under demanding conditions.

Design & Construction

Engineered for heavy-duty service, the 5253-106 latch features a reinforced draw-latch mechanism built to handle substantial loads and harsh operating conditions. The thick-gauge steel base and heavy-duty toggle linkage are sized for maximum strength, while the oversized pivot pins ensure smooth operation under high mechanical stress. The robust hook and catch geometry provides wide engagement surfaces for secure, dependable latching even under shock and vibration.

Materials & Finish

Constructed from durable 304 Stainless Steel (SUS304), the 5253-106 latch offers exceptional resistance to corrosion and oxidation, making it well-suited for outdoor, marine, and food industry applications. The stainless steel material maintains its appearance and structural properties even under continuous exposure to moisture, salt air, and cleaning chemicals, ensuring long-term reliable performance.

Performance & Specifications

The 5253-106 heavy-duty latch delivers substantial latching force for heavy enclosures, transportation equipment, and demanding industrial applications. The reinforced mechanism is built to handle high loads and harsh conditions, with heavy-gauge components that resist deformation and maintain performance over extended service life. The over-center lock provides a wide safety margin against accidental release, even under significant vibration and shock loads. Working load: 50kg.

Typical Applications

The 5253-106 heavy-duty latch is essential for heavy equipment enclosures, transportation cases, large industrial machinery, and outdoor equipment where secure closure under demanding conditions is critical. It is commonly used on heavy construction equipment access panels, railway equipment enclosures, military and defense equipment cases, and large generator housings. The robust construction ensures reliable latching even when subjected to vibration, shock loads, and harsh environmental conditions.

Installation & Usage

Heavy-duty latches such as the 5253-106 demand careful, professional installation for safe, reliable performance in demanding applications. Start by evaluating the mounting structure to ensure it can handle the rated latching and pull-up forces without yielding or fatigue failure. Add reinforcement plates or structural backing where needed, especially on thinner panel materials. Carefully position and mark both the latch body and catch locations, maintaining precise alignment for proper engagement. Drill or machine mounting holes for heavy-duty fasteners, then install both components with appropriate hardware and backing support. Adjust the catch position to achieve the desired tension and over-center lock, then thoroughly test the installation. Create a maintenance and inspection schedule to verify tightness, wear, and proper latching performance at regular intervals throughout the service life.

Why Choose NRH

With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.

Every Latch in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.

Specifications

Frequently Asked Questions
