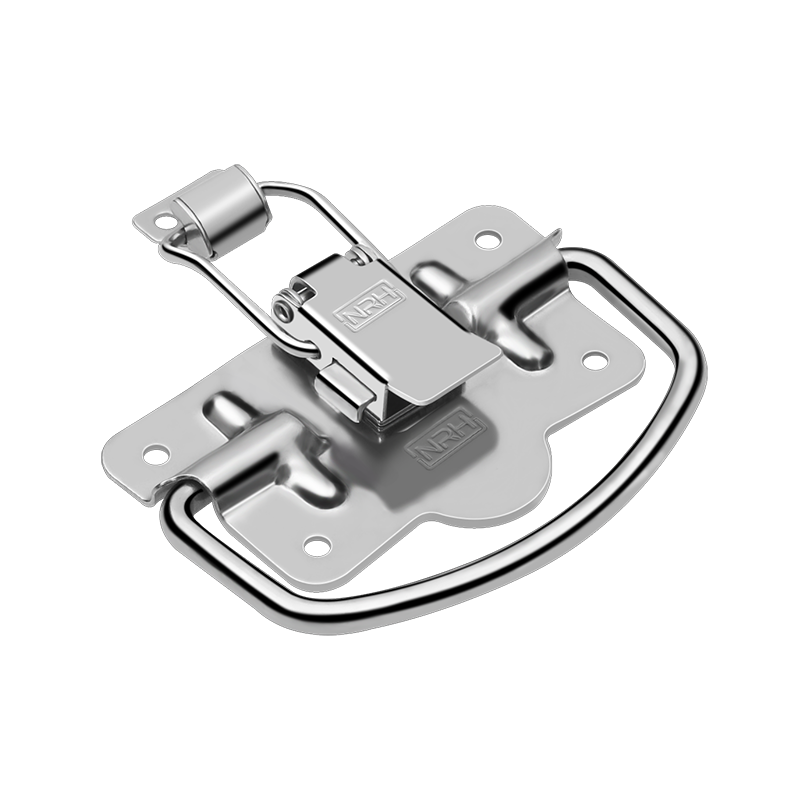

Latch 5005-100s 3D Model

Product Overview

The 5005-100s medium-duty latch delivers reliable, consistent latching performance for a wide range of industrial enclosures and equipment. Engineered for everyday use across multiple industries, it provides secure closure with straightforward operation.

Design & Construction

Built with a heavy-duty hook and catch assembly, this medium-duty latch provides strong, positive latching for industrial cabinets and equipment enclosures. The lever design offers good mechanical advantage for drawing panels tightly together, and the spring-supported mechanism maintains tension even under varying load conditions. Mounting holes are sized and spaced for straightforward installation on standard enclosure profiles.

Materials & Finish

Constructed from durable 304 Stainless Steel (SUS304), the 5005-100s latch offers exceptional resistance to corrosion and oxidation, making it well-suited for outdoor, marine, and food industry applications. The stainless steel material maintains its appearance and structural properties even under continuous exposure to moisture, salt air, and cleaning chemicals, ensuring long-term reliable performance.

Performance & Specifications

The 5005-100s medium-duty latch delivers reliable latching performance for standard industrial enclosures and equipment access panels. The draw-latch mechanism provides solid pull-up force for gasket compression and secure closure, and the over-center lock position ensures the latch remains closed under vibration and normal operating loads. Under typical conditions, the latch maintains consistent performance over thousands of operating cycles. Working load: 20kg.

Typical Applications

Found in manufacturing facilities, data centers, food processing plants, pharmaceutical equipment, and commercial building systems, the 5005-100s latch provides reliable closure for a wide variety of equipment. It is frequently specified for use on industrial control panels, automation equipment enclosures, generator set access doors, and utility cabinets where secure, accessible closure is essential for equipment protection and operator safety.

Installation & Usage

Proper installation of the 5005-100s latch is essential for dependable performance and long service life. Begin by marking the latch location on the door, taking into account the required clearance and ergonomic access height. Drill mounting holes and install the latch body securely using appropriate fasteners. Next, transfer the catch position to the frame using a marking tool or by carefully measuring the alignment. Install the catch or keeper plate, leaving room for initial adjustment. Close the latch and check engagement quality and pull-up force. Adjust the catch position as needed to achieve proper latching with adequate gasket compression (if applicable) and a positive over-center feel. Once adjusted, tighten all fasteners securely. Test the latch through multiple cycles to confirm consistent operation.

Why Choose NRH

With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.

Every Latch in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.

Specifications
