Latch 5402-100-2 3D Model

Product Overview

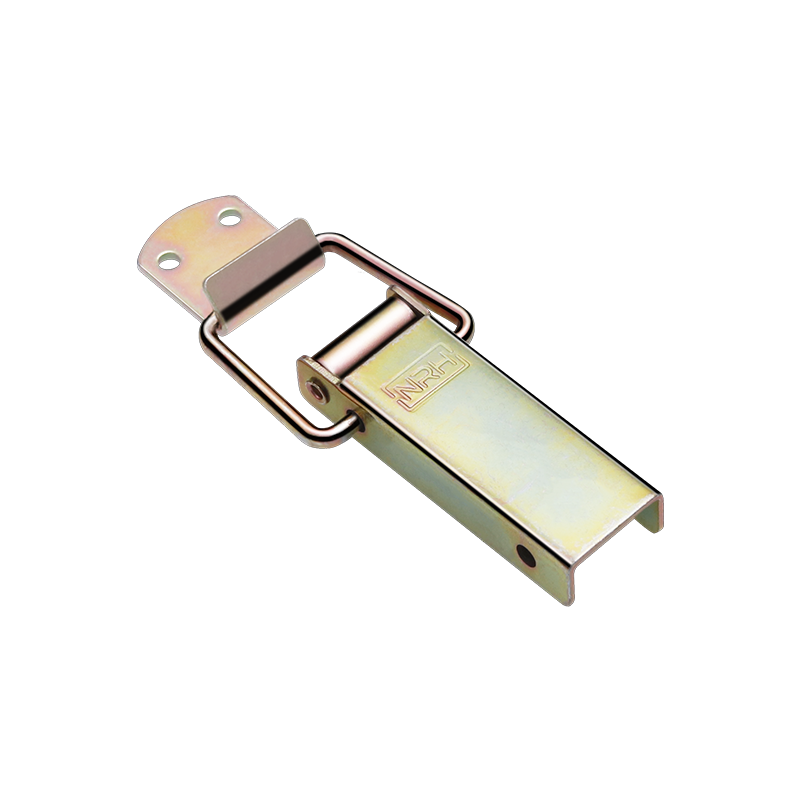

Featuring substantial holding capacity, the 5402-100-2 heavy-duty latch is designed for applications where secure closure under load is essential. From heavy equipment enclosures to transit cases, this latch delivers the holding strength required for demanding environments.

Design & Construction

The 5402-100-2 heavy-duty latch incorporates a heavy-duty toggle mechanism engineered for rigorous industrial use on large enclosures, heavy equipment, and transportation cases. The massive base plate distributes loads across a wide mounting area, and the forged or heavy-stamped steel components deliver exceptional tensile strength. An adjustable catch assembly allows precise tuning of latching force and closure depth.

Materials & Finish

The Cold-Rolled Carbon Steel (SPCC) build of this latch offers the strength and durability of steel at a practical cost point. The Zinc Plated surface treatment provides effective corrosion resistance for indoor and light outdoor use, and the base material is selected for its good formability and structural performance under mechanical stress.

Performance & Specifications

Built for heavy-duty industrial service, the 5402-100-2 latch provides powerful, reliable closure for equipment where secure latching is critical. The heavy-duty toggle mechanism generates significant pull-up force for compressing thick gaskets and drawing heavy panels into proper alignment. All load-bearing components are oversized and reinforced for maximum durability. Rated working load: 40kg.

Typical Applications

The 5402-100-2 heavy-duty latch is essential for heavy equipment enclosures, transportation cases, large industrial machinery, and outdoor equipment where secure closure under demanding conditions is critical. It is commonly used on heavy construction equipment access panels, railway equipment enclosures, military and defense equipment cases, and large generator housings. The robust construction ensures reliable latching even when subjected to vibration, shock loads, and harsh environmental conditions.

Installation & Usage

Heavy-duty latches such as the 5402-100-2 demand careful, professional installation for safe, reliable performance in demanding applications. Start by evaluating the mounting structure to ensure it can handle the rated latching and pull-up forces without yielding or fatigue failure. Add reinforcement plates or structural backing where needed, especially on thinner panel materials. Carefully position and mark both the latch body and catch locations, maintaining precise alignment for proper engagement. Drill or machine mounting holes for heavy-duty fasteners, then install both components with appropriate hardware and backing support. Adjust the catch position to achieve the desired tension and over-center lock, then thoroughly test the installation. Create a maintenance and inspection schedule to verify tightness, wear, and proper latching performance at regular intervals throughout the service life.

Why Choose NRH

With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.

Every Latch in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
