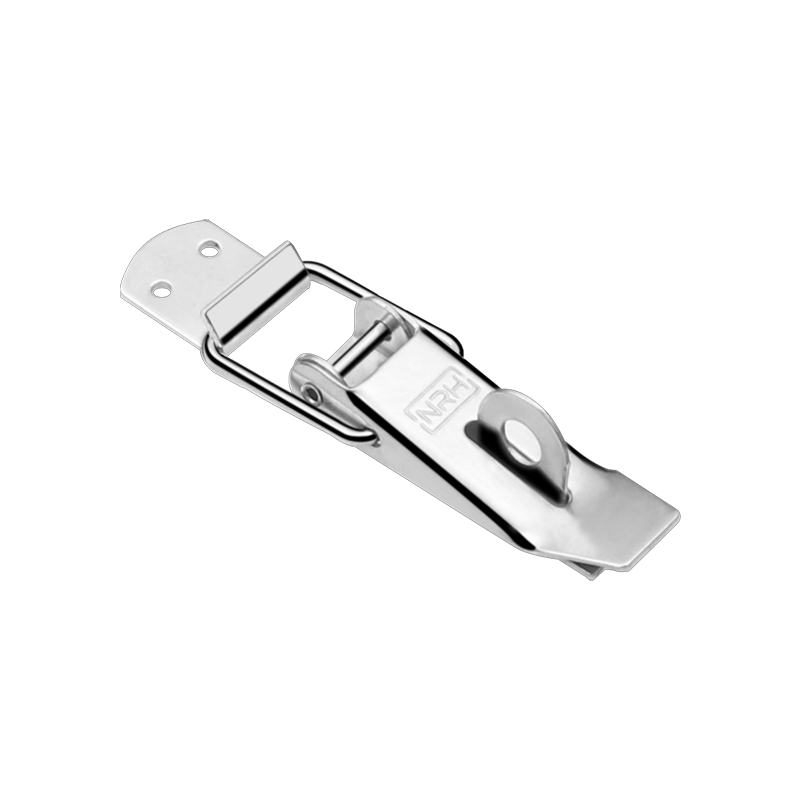

Latch 5301-112k-2 3D Model

Product Overview

Featuring substantial holding capacity, the 5301-112k-2 heavy-duty latch is designed for applications where secure closure under load is essential. From heavy equipment enclosures to transit cases, this latch delivers the holding strength required for demanding environments.

Design & Construction

Engineered for heavy-duty service, the 5301-112k-2 latch features a reinforced draw-latch mechanism built to handle substantial loads and harsh operating conditions. The thick-gauge steel base and heavy-duty toggle linkage are sized for maximum strength, while the oversized pivot pins ensure smooth operation under high mechanical stress. The robust hook and catch geometry provides wide engagement surfaces for secure, dependable latching even under shock and vibration.

Materials & Finish

The 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC) build of this latch provides outstanding corrosion resistance along with good mechanical strength. Stainless steel construction eliminates concerns about rust and degradation, making the latch suitable for hygienic environments, outdoor installations, and applications where regular washdowns are required.

Performance & Specifications

Built for heavy-duty industrial service, the 5301-112k-2 latch provides powerful, reliable closure for equipment where secure latching is critical. The heavy-duty toggle mechanism generates significant pull-up force for compressing thick gaskets and drawing heavy panels into proper alignment. All load-bearing components are oversized and reinforced for maximum durability. Rated working load: 40kg.

Typical Applications

Primary applications include heavy industrial machinery guards and access doors, transportation and shipping containers, off-road vehicle equipment enclosures, mining equipment panels, and large outdoor telecom shelters. Wherever equipment must stay securely closed despite vibration, temperature extremes, and rough handling, the 5301-112k-2 heavy-duty latch provides the dependable performance required. It is also widely used in the aerospace and defense industries for ground support equipment and shelter systems.

Installation & Usage

Installation of the 5301-112k-2 heavy-duty latch requires robust mounting to handle the substantial latching forces involved. The mounting structure must be strong enough to withstand the rated load without deformation or failure. Begin by carefully laying out the latch position on heavy panels or frames, ensuring sufficient material around the mounting points for structural integrity. Mark and drill or machine the mounting holes to the correct size for heavy-duty fasteners. Install the latch body using high-strength bolts or studs with appropriate back-up washers or reinforcement plates on the reverse side. Next, install the heavy-duty catch or keeper on the mating structure, ensuring precise alignment with the latch mechanism. Adjust the catch position to achieve proper engagement and pull-up force, then tighten all fasteners securely. Test the latch thoroughly under simulated load conditions before putting it into service. Establish a regular inspection schedule to check mounting hardware, pivot points, and catch engagement during the life of the latch.

Why Choose NRH

With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.

Every Latch in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
