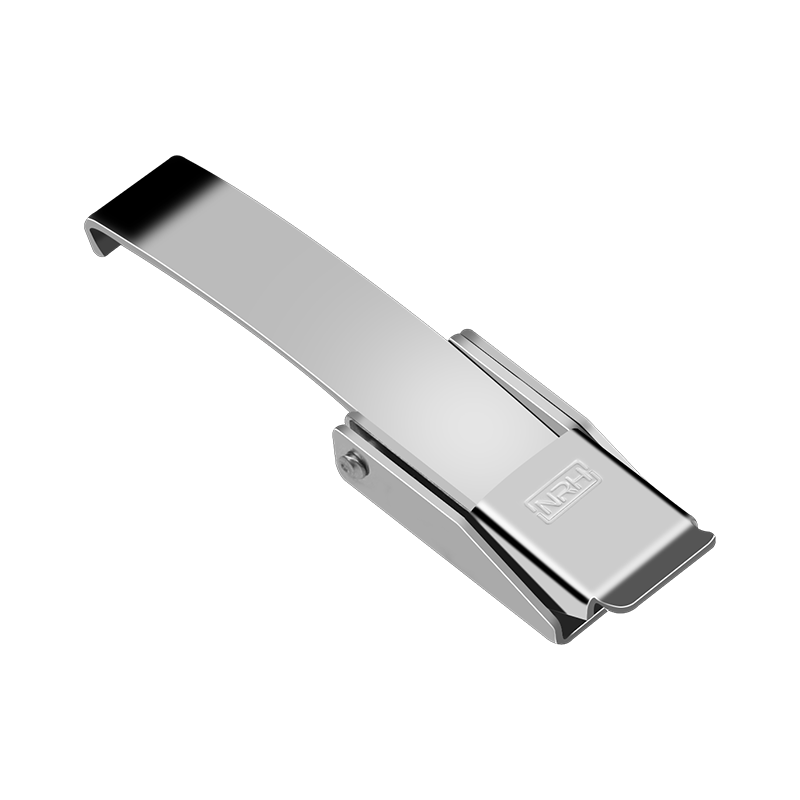

Latch 5251-98 3D Model

Product Overview

The 5251-98 medium-duty latch delivers reliable, consistent latching performance for a wide range of industrial enclosures and equipment. Engineered for everyday use across multiple industries, it provides secure closure with straightforward operation.

Design & Construction

Built with a heavy-duty hook and catch assembly, this medium-duty latch provides strong, positive latching for industrial cabinets and equipment enclosures. The lever design offers good mechanical advantage for drawing panels tightly together, and the spring-supported mechanism maintains tension even under varying load conditions. Mounting holes are sized and spaced for straightforward installation on standard enclosure profiles.

Materials & Finish

The 304 Stainless Steel (SUS304) build of this latch provides outstanding corrosion resistance along with good mechanical strength. Stainless steel construction eliminates concerns about rust and degradation, making the latch suitable for hygienic environments, outdoor installations, and applications where regular washdowns are required.

Performance & Specifications

Engineered for dependable industrial use, the 5251-98 latch provides secure closure with good mechanical advantage for drawing panels tightly together. The latch mechanism is designed for smooth, positive operation with a clear engagement point that gives operators confidence the latch is properly secured. Rated working load: 15kg. Performance ratings assume proper installation and use within recommended parameters.

Typical Applications

The 5251-98 medium-duty latch is widely used across industrial and commercial applications for securing equipment enclosures, control cabinets, and access panels. Common applications include electrical distribution cabinets, industrial machine enclosures, network and server racks, HVAC equipment access doors, and industrial tool storage. The dependable latching performance and straightforward installation make it a standard choice for panel builders and enclosure manufacturers.

Installation & Usage

Installation of the 5251-98 medium-duty latch requires attention to alignment and mounting integrity to ensure reliable long-term performance. Start by determining the proper latch location on your enclosure, considering both functional requirements and ergonomic access. Position the latch body on the door or movable panel, mark the mounting holes, and drill or punch appropriately sized holes. Secure the latch body using suitable fasteners for your panel thickness and material. Next, position the catch or strike plate on the stationary frame, carefully aligning it with the latch mechanism to ensure proper engagement. Install the catch, then test the latch operation. Adjust the catch position if needed to achieve the correct pull-up force and positive over-center lock. For enclosures with gaskets, verify that sufficient compression is achieved when the latch is fully closed. Periodically check mounting fasteners for tightness during service.

Why Choose NRH

With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.

Every Latch in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
