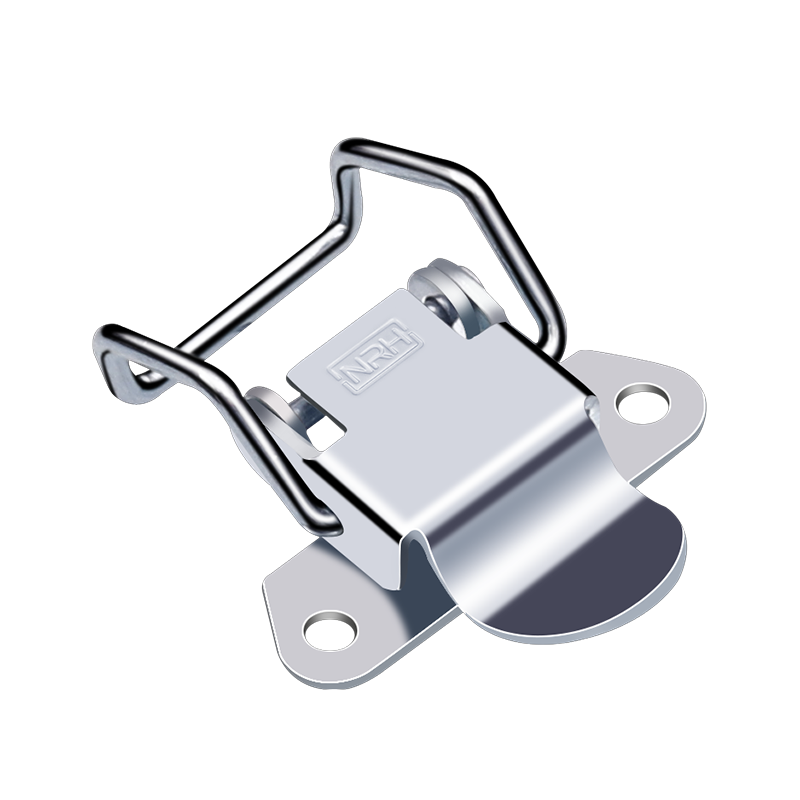

Latch 5212-53 3D Model
Interactive 3D model of 5212-53 latch from NRH. Rotate, zoom, and inspect every detail before requesting a quote.
- Model Number5212-53
- CategoryLatches
- MaterialCold-Rolled Carbon Steel (SPCC)
- Surface FinishZinc Plated
- ColorBlue Zinc Plated
- Working Load10kg
Product Overview
Compact and dependable, the 5212-53 latch is engineered for light-duty enclosure applications. Its streamlined design ensures positive closure without adding unnecessary weight or bulk to your assembly.
Design & Construction
The latch features a simple yet effective over-center latching mechanism that provides positive closure with a reassuring click. The compact catch plate and hook assembly engage cleanly, and the spring-loaded action ensures the latch remains securely fastened during normal use. The low-profile design minimizes protrusion from the enclosure surface, making it suitable for applications where streamlined appearance matters.
Materials & Finish
The Cold-Rolled Carbon Steel (SPCC) build of this latch offers the strength and durability of steel at a practical cost point. The Zinc Plated surface treatment provides effective corrosion resistance for indoor and light outdoor use, and the base material is selected for its good formability and structural performance under mechanical stress.
Performance & Specifications
Performance of the 5212-53 latch is optimized for light-duty closure applications. The over-center mechanism provides positive locking once closed, and the spring-loaded action (where applicable) helps maintain tension and prevents rattle. When properly installed, the latch delivers consistent, reliable performance for the service life of the enclosure. Working load: 10kg.
Typical Applications
Typical applications include electronic equipment enclosures, medical device housings, instrument and meter cases, portable tool cases, and small storage cabinets. The latch is also used in the telecommunications industry for equipment rack access panels, in point-of-sale equipment, and in various consumer products where a secure, easy-to-use closure mechanism is required.
Installation & Usage
To install the 5212-53 light-duty latch, first determine the optimal mounting position on your enclosure or panel, considering both functional and ergonomic factors. Hold the latch in position and mark the mounting hole locations. Drill appropriate holes for the fasteners you will be using. Mount the latch body to the door or movable panel, then install the catch or keeper to the stationary frame. Fine-tune the catch position to achieve the correct latching tension and ensure positive engagement. Test the latch several times to confirm it opens and closes smoothly and holds securely when closed. If your latch has an adjustable catch, make final adjustments as needed after the installation is complete.
Why Choose NRH
With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.
Every Latch in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
Specifications
| Model Number | 5212-53 |
|---|---|
| Product Category | Latches |
| Material | Cold-Rolled Carbon Steel (SPCC) |
| Surface Finish | Zinc Plated |
| Color | Blue Zinc Plated |
| Working Load | 10kg |
| Brand | NRH |
Frequently Asked Questions
The 5212-53 latch has a working load capacity of 10kg. This rating represents the maximum recommended load for normal operating conditions. Actual performance may vary based on installation method, load distribution, and environmental factors.
The 5212-53 is constructed from Cold-Rolled Carbon Steel (SPCC) with a Zinc Plated finish. This material is selected for its durability, structural strength, and reliable performance in standard industrial environments.
The 5212-53 latch is suitable for a wide range of Light-duty industrial applications, including instrument cases, electronic enclosures, and small equipment panels. Its light-duty rating makes it ideal for precision applications where reliable performance in a compact package is essential. For specific application questions, contact our technical support team.
Yes, NRH offers comprehensive customization services for the 5212-53, including custom sizes, modified finishes, special materials, and OEM branding options. We work closely with OEMs, engineering teams, and distributors to develop solutions tailored to specific application requirements. Contact our sales team to discuss your customization needs.
Installation of the 5212-53 is straightforward using standard fasteners appropriate for your mounting surface. Ensure proper alignment before final tightening, and follow recommended torque specifications for the fastener size used. For detailed installation guidance or technical support, contact our engineering team who can provide specific recommendations based on your application and mounting materials.
