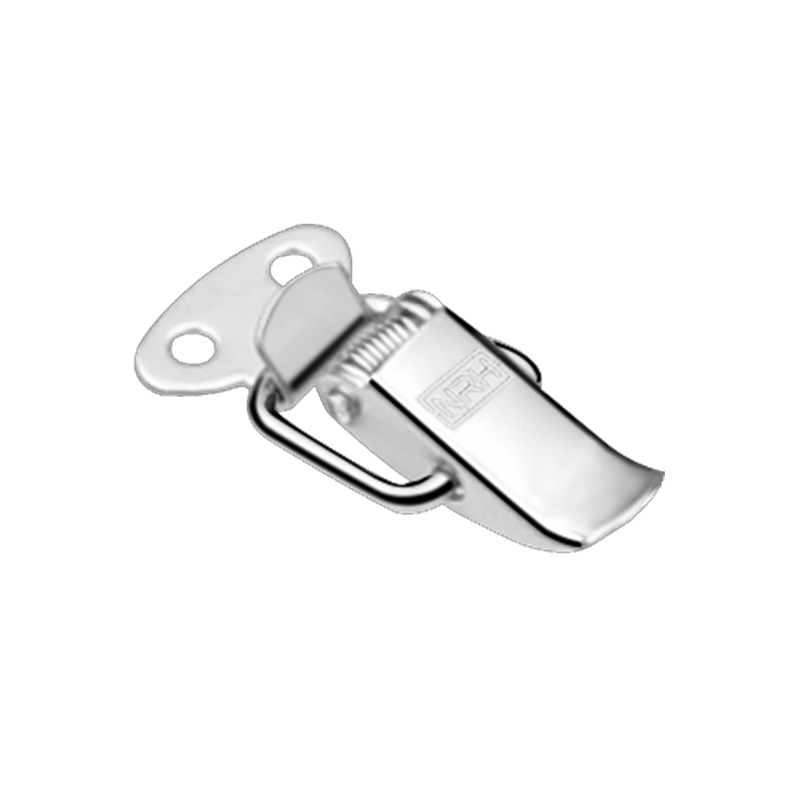

Latch 5151-33 3D Model
Interactive 3D model of 5151-33 latches from NRH. Rotate, zoom, and inspect every detail before requesting a quote.
- Model Number5151-33
- CategoryLatches
- Material304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC)
- Surface FinishChrome Plated, Vibratory Polished
- ColorChrome Silver, Natural Stainless
- Working Load8 kg
Product Overview
Specifications
Specification Details
Model5151-33
TypeMini Toggle Latch
Material304 Stainless Steel (SUS304) / Cold-Rolled Carbon Steel (SPCC)
FinishChrome Plated / Vibratory Polished
ColorChrome Silver / Natural Stainless
Working Load8kg
Product Overview
The 5151-33 is a mini toggle latch designed for compact applications where space is at a premium small cases, micro enclosures, and lightweight equipment boxes.
The over-center toggle mechanism ensures vibration-proof locking, keeping lids securely closed during transport and handling. Available in 304 stainless steel (vibratory polished natural finish) or carbon steel (chrome plated silver finish).
Key Features:
Ultra-compact mini design for tight spaces
Vibration-proof over-center locking prevents accidental opening
8kg working load capacity
Available in stainless steel or carbon steel
Easy installation with rivets or screws
Applications: Small instrument cases, electronic enclosures, medical device boxes, compact toolboxes, hobby and DIY cases, miniature equipment housings.
Specifications
| Model Number | 5151-33 |
|---|---|
| Product Category | Latches |
| Material | 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC) |
| Surface Finish | Chrome Plated, Vibratory Polished |
| Color | Chrome Silver, Natural Stainless |
| Working Load | 8 kg |
| Brand | NRH |
Frequently Asked Questions
The 5151-33 latch has a working load capacity of 8 kg. This rating represents the maximum recommended load for normal operating conditions. Actual performance may vary based on installation method, load distribution, and environmental factors.
The 5151-33 is constructed from 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC) with a Chrome Plated, Vibratory Polished finish. This material is selected for its durability, excellent corrosion resistance, and suitability for hygienic and outdoor environments.
The 5151-33 latch is suitable for a wide range of Light-duty industrial applications, including instrument cases, electronic enclosures, and small equipment panels. Its light-duty rating makes it ideal for precision applications where reliable performance in a compact package is essential. For specific application questions, contact our technical support team.
Yes, NRH offers comprehensive customization services for the 5151-33, including custom sizes, modified finishes, special materials, and OEM branding options. We work closely with OEMs, engineering teams, and distributors to develop solutions tailored to specific application requirements. Contact our sales team to discuss your customization needs.
Installation of the 5151-33 is straightforward using standard fasteners appropriate for your mounting surface. Ensure proper alignment before final tightening, and follow recommended torque specifications for the fastener size used. For detailed installation guidance or technical support, contact our engineering team who can provide specific recommendations based on your application and mounting materials.
