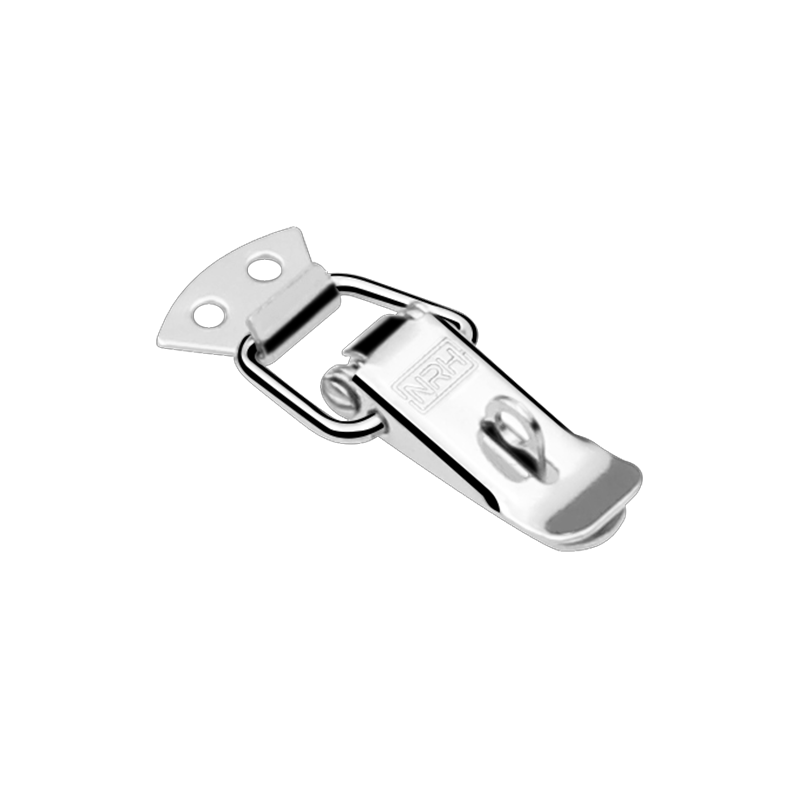

Latch 5104-56K 3D Model

Product Overview

Versatile and dependable, the 5104-56K latch is built for medium-duty industrial applications. Its balanced construction ensures positive latching while maintaining ease of use for operators accessing equipment regularly.

Design & Construction

The 5104-56K latch features a robust draw-latch mechanism designed for dependable closure on standard industrial enclosures. The lever-operated toggle mechanism pulls the latch closed with progressive force, ensuring gasket compression and a secure seal. The over-center lock position prevents accidental release from vibration, and the substantial base plate provides solid mounting for reliable long-term performance.

Materials & Finish

The 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC) build of this latch provides outstanding corrosion resistance along with good mechanical strength. Stainless steel construction eliminates concerns about rust and degradation, making the latch suitable for hygienic environments, outdoor installations, and applications where regular washdowns are required.

Performance & Specifications

The 5104-56K medium-duty latch delivers reliable latching performance for standard industrial enclosures and equipment access panels. The draw-latch mechanism provides solid pull-up force for gasket compression and secure closure, and the over-center lock position ensures the latch remains closed under vibration and normal operating loads. Under typical conditions, the latch maintains consistent performance over thousands of operating cycles. Working load: 20KG.

Typical Applications

The 5104-56K medium-duty latch is widely used across industrial and commercial applications for securing equipment enclosures, control cabinets, and access panels. Common applications include electrical distribution cabinets, industrial machine enclosures, network and server racks, HVAC equipment access doors, and industrial tool storage. The dependable latching performance and straightforward installation make it a standard choice for panel builders and enclosure manufacturers.

Installation & Usage

Proper installation of the 5104-56K latch is essential for dependable performance and long service life. Begin by marking the latch location on the door, taking into account the required clearance and ergonomic access height. Drill mounting holes and install the latch body securely using appropriate fasteners. Next, transfer the catch position to the frame using a marking tool or by carefully measuring the alignment. Install the catch or keeper plate, leaving room for initial adjustment. Close the latch and check engagement quality and pull-up force. Adjust the catch position as needed to achieve proper latching with adequate gasket compression (if applicable) and a positive over-center feel. Once adjusted, tighten all fasteners securely. Test the latch through multiple cycles to confirm consistent operation.

Why Choose NRH

With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.

Every Latch in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
