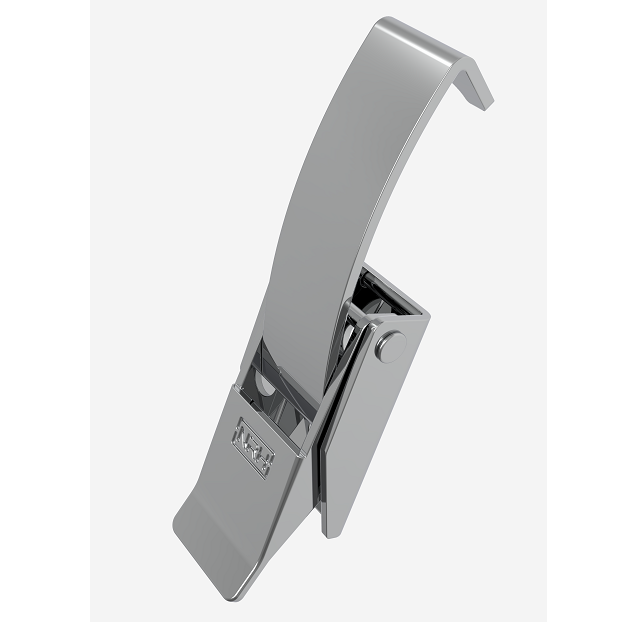

Latch 5251-48 3D Model
Interactive 3D model of 5251-48 latches from NRH. Rotate, zoom, and inspect every detail before requesting a quote.
- Model Number5251-48
- CategoryLatches
- MaterialCold-Rolled Carbon Steel (SPCC)
- Surface FinishChrome Plated
- ColorChrome Silver
- Working Load10kg
Product Overview
Specifications
Specification Details
Model 5251-48
Type Mini Dovetail Latch (燕尾搭扣)
Material Cold-Rolled Carbon Steel (SPCC)
Finish Chrome Plated
Color Chrome Silver
Working Load 10kg
Product Overview
The 5251-48 is a mini dovetail latch featuring the distinctive wedge-shaped design that creates a self-tightening effect during closure. As the latch engages, the inclined surfaces pull the lid tighter against the case body just like a dovetail joint in woodworking ensuring a firm, rattle-free seal that holds securely even under vibration.
The over-center toggle mechanism provides reliable vibration-proof locking, preventing accidental opening during transport and handling. The compact mini size makes it ideal for small enclosures and lightweight applications where a full-sized latch would be oversized.
Constructed from cost-effective cold-rolled carbon steel with a bright chrome plated finish, it offers a polished appearance with basic corrosion protection for indoor or light-duty environments.
Key Features:
Mini dovetail design with self-tightening closure
Vibration-proof over-center locking mechanism
10kg working load capacity
Chrome plated finish for bright, wear-resistant surface
Cost-effective carbon steel construction
Compact size for space-constrained applications
Easy installation with rivets or screws
Applications: Small instrument cases, electronic enclosures, medical device boxes, compact toolboxes, hobby and DIY projects, lightweight shipping containers, portable equipment housings.
Specifications
| Model Number | 5251-48 |
|---|---|
| Product Category | Latches |
| Material | Cold-Rolled Carbon Steel (SPCC) |
| Surface Finish | Chrome Plated |
| Color | Chrome Silver |
| Working Load | 10kg |
| Brand | NRH |
Frequently Asked Questions
The 5251-48 latch has a working load capacity of 10kg. This rating represents the maximum recommended load for normal operating conditions. Actual performance may vary based on installation method, load distribution, and environmental factors.
The 5251-48 is constructed from Cold-Rolled Carbon Steel (SPCC) with a Chrome Plated finish. This material is selected for its durability, structural strength, and reliable performance in standard industrial environments.
The 5251-48 latch is suitable for a wide range of Light-duty industrial applications, including instrument cases, electronic enclosures, and small equipment panels. Its light-duty rating makes it ideal for precision applications where reliable performance in a compact package is essential. For specific application questions, contact our technical support team.
Yes, NRH offers comprehensive customization services for the 5251-48, including custom sizes, modified finishes, special materials, and OEM branding options. We work closely with OEMs, engineering teams, and distributors to develop solutions tailored to specific application requirements. Contact our sales team to discuss your customization needs.
Installation of the 5251-48 is straightforward using standard fasteners appropriate for your mounting surface. Ensure proper alignment before final tightening, and follow recommended torque specifications for the fastener size used. For detailed installation guidance or technical support, contact our engineering team who can provide specific recommendations based on your application and mounting materials.
