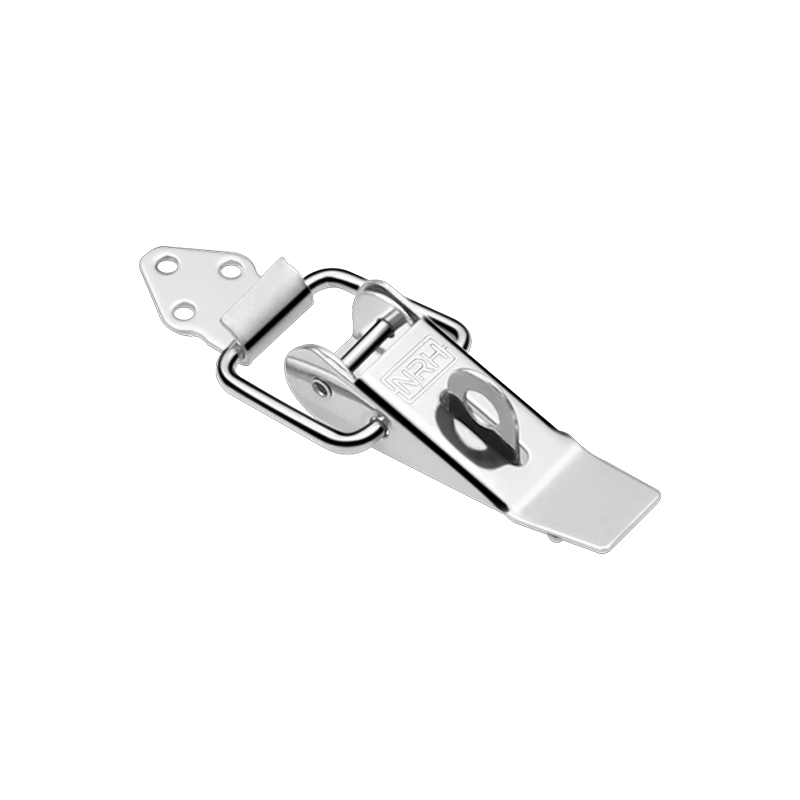

Latch 5321-85k-3 3D Model

Product Overview

Built for reliable daily service, the 5321-85k-3 medium-duty latch provides secure closure for industrial cabinets, enclosures, and equipment access panels. The proven latching mechanism delivers consistent performance across diverse operating conditions.

Design & Construction

The toggle latch design of the 5321-85k-3 delivers consistent, reliable closure for medium-duty applications. The stamped or formed steel construction provides good structural integrity, and the pivot points are sized for smooth operation and long service life. The adjustable catch allows for fine-tuning of latching tension to accommodate gasket compression and manufacturing tolerances.

Materials & Finish

The 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC) build of this latch provides outstanding corrosion resistance along with good mechanical strength. Stainless steel construction eliminates concerns about rust and degradation, making the latch suitable for hygienic environments, outdoor installations, and applications where regular washdowns are required.

Performance & Specifications

Engineered for dependable industrial use, the 5321-85k-3 latch provides secure closure with good mechanical advantage for drawing panels tightly together. The latch mechanism is designed for smooth, positive operation with a clear engagement point that gives operators confidence the latch is properly secured. Rated working load: 30kg. Performance ratings assume proper installation and use within recommended parameters.

Typical Applications

Found in manufacturing facilities, data centers, food processing plants, pharmaceutical equipment, and commercial building systems, the 5321-85k-3 latch provides reliable closure for a wide variety of equipment. It is frequently specified for use on industrial control panels, automation equipment enclosures, generator set access doors, and utility cabinets where secure, accessible closure is essential for equipment protection and operator safety.

Installation & Usage

Proper installation of the 5321-85k-3 latch is essential for dependable performance and long service life. Begin by marking the latch location on the door, taking into account the required clearance and ergonomic access height. Drill mounting holes and install the latch body securely using appropriate fasteners. Next, transfer the catch position to the frame using a marking tool or by carefully measuring the alignment. Install the catch or keeper plate, leaving room for initial adjustment. Close the latch and check engagement quality and pull-up force. Adjust the catch position as needed to achieve proper latching with adequate gasket compression (if applicable) and a positive over-center feel. Once adjusted, tighten all fasteners securely. Test the latch through multiple cycles to confirm consistent operation.

Why Choose NRH

With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.

Every Latch in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
