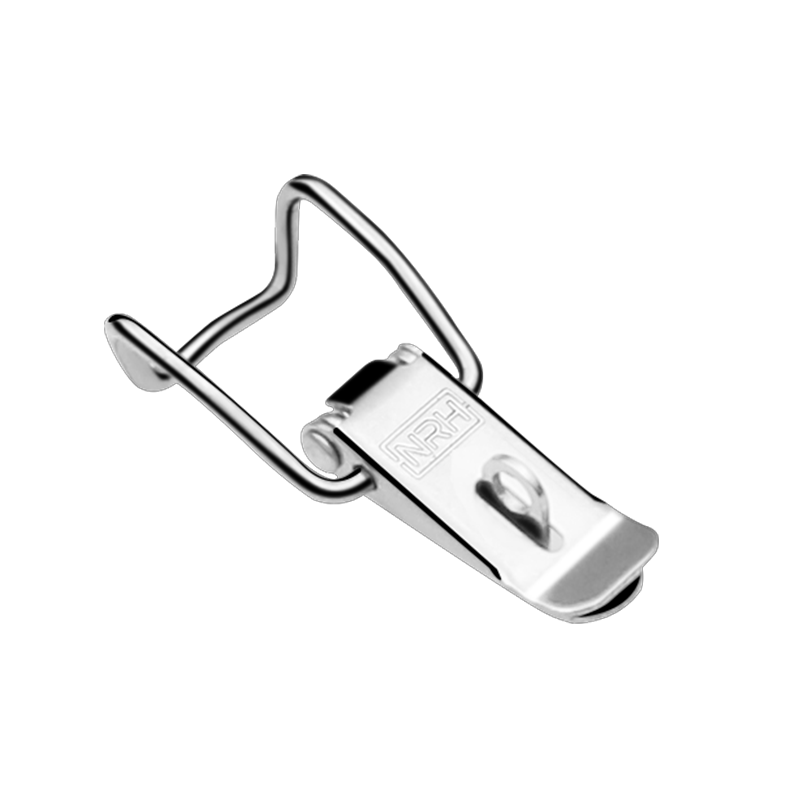

Latch 5204-70k 3D Model
Interactive 3D model of 5204-70k latches from NRH. Rotate, zoom, and inspect every detail before requesting a quote.
- Model Number5204-70k
- CategoryLatches
- Material304 Stainless Steel (SUS304)
- Surface FinishVibratory Polished
- ColorNatural Stainless Finish
- Working Load25kg
Product Overview
Specifications
Specification Details
Model 5204-70K
Type Lockable Toggle Latch
Material 304 Stainless Steel (SUS304)
Finish Vibratory Polished
Color Natural Stainless
Weight 21g
Working Load 25kg
Lock Hole Yes (for padlock or security seal)
Product Overview
The 5204-70K is a compact lockable toggle latch with a built-in lock hole on the hasp for padlock or security seal, providing tamper protection and controlled access. This mini design is ideal for lightweight cases and small enclosures where security is a concern and space is limited.
Crafted from 304 stainless steel with a vibratory polished natural finish, it offers excellent corrosion resistance and durability. The over-center toggle mechanism ensures vibration-proof locking, preventing accidental opening during transport.
Key Features:
Built-in lock hole for padlock or security seal
Compact mini design for space-constrained applications
304 stainless steel for corrosion resistance
Vibratory polished natural finish
25kg working load capacity
Lightweight 21g design
Vibration-proof over-center locking
Easy installation with rivets or screws
Applications: Security-sensitive instrument cases, medical device enclosures, electronic equipment boxes, compact toolboxes, hobby and DIY cases, lightweight shipping containers
Specifications
| Model Number | 5204-70k |
|---|---|
| Product Category | Latches |
| Material | 304 Stainless Steel (SUS304) |
| Surface Finish | Vibratory Polished |
| Color | Natural Stainless Finish |
| Working Load | 25kg |
| Brand | NRH |
Frequently Asked Questions
The 5204-70k latch has a working load capacity of 25kg. This rating represents the maximum recommended load for normal operating conditions. Actual performance may vary based on installation method, load distribution, and environmental factors.
The 5204-70k is constructed from 304 Stainless Steel (SUS304) with a Vibratory Polished finish. This material is selected for its durability, excellent corrosion resistance, and suitability for hygienic and outdoor environments.
The 5204-70k latch is suitable for a wide range of Medium-duty industrial applications, including industrial cabinets, equipment enclosures, and toolboxes. Its medium-duty rating makes it ideal for everyday industrial use where consistent, dependable performance is required. For specific application questions, contact our technical support team.
Yes, NRH offers comprehensive customization services for the 5204-70k, including custom sizes, modified finishes, special materials, and OEM branding options. We work closely with OEMs, engineering teams, and distributors to develop solutions tailored to specific application requirements. Contact our sales team to discuss your customization needs.
Installation of the 5204-70k is straightforward using standard fasteners appropriate for your mounting surface. Ensure proper alignment before final tightening, and follow recommended torque specifications for the fastener size used. For detailed installation guidance or technical support, contact our engineering team who can provide specific recommendations based on your application and mounting materials.
