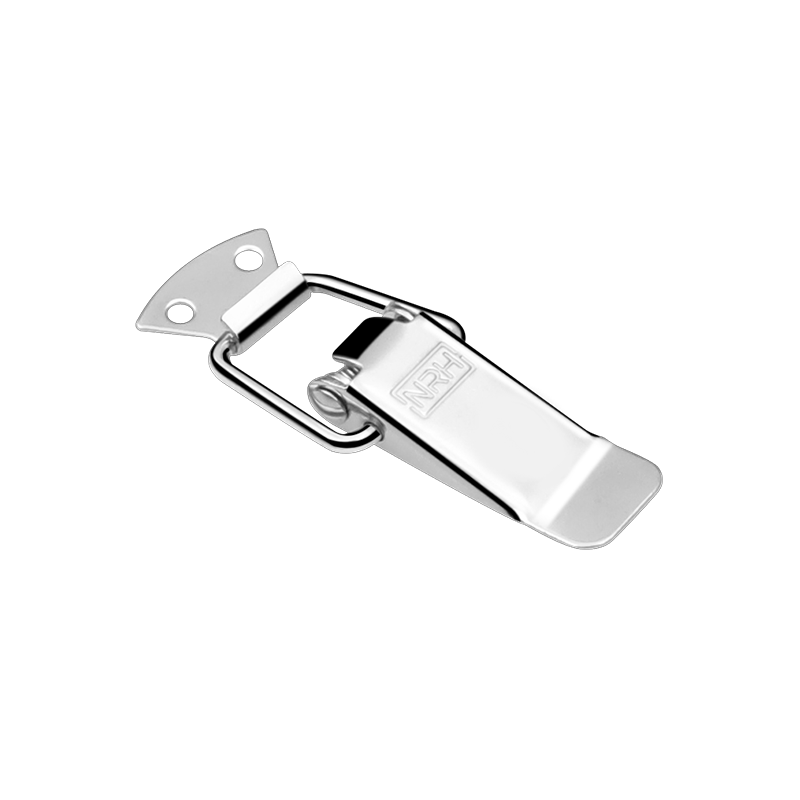

Latch 5102-88-2 3D Model

Product Overview

Versatile and dependable, the 5102-88-2 latch is built for medium-duty industrial applications. Its balanced construction ensures positive latching while maintaining ease of use for operators accessing equipment regularly.

Design & Construction

The 5102-88-2 latch features a robust draw-latch mechanism designed for dependable closure on standard industrial enclosures. The lever-operated toggle mechanism pulls the latch closed with progressive force, ensuring gasket compression and a secure seal. The over-center lock position prevents accidental release from vibration, and the substantial base plate provides solid mounting for reliable long-term performance.

Materials & Finish

Constructed from durable 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC), the 5102-88-2 latch offers exceptional resistance to corrosion and oxidation, making it well-suited for outdoor, marine, and food industry applications. The stainless steel material maintains its appearance and structural properties even under continuous exposure to moisture, salt air, and cleaning chemicals, ensuring long-term reliable performance.

Performance & Specifications

Engineered for dependable industrial use, the 5102-88-2 latch provides secure closure with good mechanical advantage for drawing panels tightly together. The latch mechanism is designed for smooth, positive operation with a clear engagement point that gives operators confidence the latch is properly secured. Rated working load: 30kg. Performance ratings assume proper installation and use within recommended parameters.

Typical Applications

The 5102-88-2 medium-duty latch is widely used across industrial and commercial applications for securing equipment enclosures, control cabinets, and access panels. Common applications include electrical distribution cabinets, industrial machine enclosures, network and server racks, HVAC equipment access doors, and industrial tool storage. The dependable latching performance and straightforward installation make it a standard choice for panel builders and enclosure manufacturers.

Installation & Usage

Installation of the 5102-88-2 medium-duty latch requires attention to alignment and mounting integrity to ensure reliable long-term performance. Start by determining the proper latch location on your enclosure, considering both functional requirements and ergonomic access. Position the latch body on the door or movable panel, mark the mounting holes, and drill or punch appropriately sized holes. Secure the latch body using suitable fasteners for your panel thickness and material. Next, position the catch or strike plate on the stationary frame, carefully aligning it with the latch mechanism to ensure proper engagement. Install the catch, then test the latch operation. Adjust the catch position if needed to achieve the correct pull-up force and positive over-center lock. For enclosures with gaskets, verify that sufficient compression is achieved when the latch is fully closed. Periodically check mounting fasteners for tightness during service.

Why Choose NRH

With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.

Every Latch in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
