Heavy Duty Stainless Steel Draw Latch for Flight Cases and Industrial Equipment

5505-75-S04-ZG Stainless Steel Heavy Duty Draw Latch Set - Complete Latching System

Specifications

Product Overview & Positioning

The 5505-75-S04-ZG is a large-sized stainless steel draw latch set from NRH, part of the 5500 series high-load models. Manufactured from premium SUS304 stainless steel with a vibratory finishing treatment, it offers excellent corrosion resistance and a fine matte finish. This complete latching set includes both the hook and strike plate, making it ideal for flight cases, heavy-duty luggage, military boxes, firefighting cases, and industrial machinery where high strength and corrosion resistance are required. Its high load capacity meets the fastening needs of most medium to heavy-duty cases.

Key Features

• High Load Capacity: Rated for heavy tensile loads, suitable for heavy transport cases and industrial equipment.
• SUS304 Stainless Steel: 18% chromium, 8% nickel - corrosion-resistant, acid-resistant, heat-resistant, and rust-proof for outdoor, medical, and food applications.
• Vibratory Finishing: Smooth, satin surface that resists dirt, is easy to clean, and has no sharp edges to prevent scratches.
• Over-Center Self-Locking: Lever and over-center mechanism locks when pressed flat; external vibration tightens the latch further - vibration-resistant and anti-loosening.
• Multiple Mounting Holes: Multiple holes for secure fixation on large cases.
• Complete Set: Includes both hook and strike plate - no additional parts required.

Working Principle

This latch operates on a classic lever and over-center mechanism. Mount the hook on the lid and the strike plate on the case body. Pressing the hook downward slides it into the strike plate opening, generating linear clamping force. When fully pressed flat, the mechanism passes the over-center point and self-locks. External vibration actually tightens the latch further. To open, simply lift the tail of the hook. The latch relies solely on stainless steel-to-stainless steel friction without springs, ensuring long-term reliability.

Material & Finish Advantages

SUS304 Stainless Steel: Widely used in medical, food, chemical, and outdoor applications. Its excellent corrosion resistance ensures no rust even in humid, salt spray, or chemical environments. It also offers good stamping formability for precision components.

Vibratory Finishing: A vibrating media process removes burrs and oxide scale, creating a uniform satin surface. This finish resists fingerprints, is more scratch-resistant than mirror polishing, and is easy to clean and disinfect. Ideal for medical equipment, laboratory instruments, and premium flight cases where hygiene and appearance matter.

Installation Guide

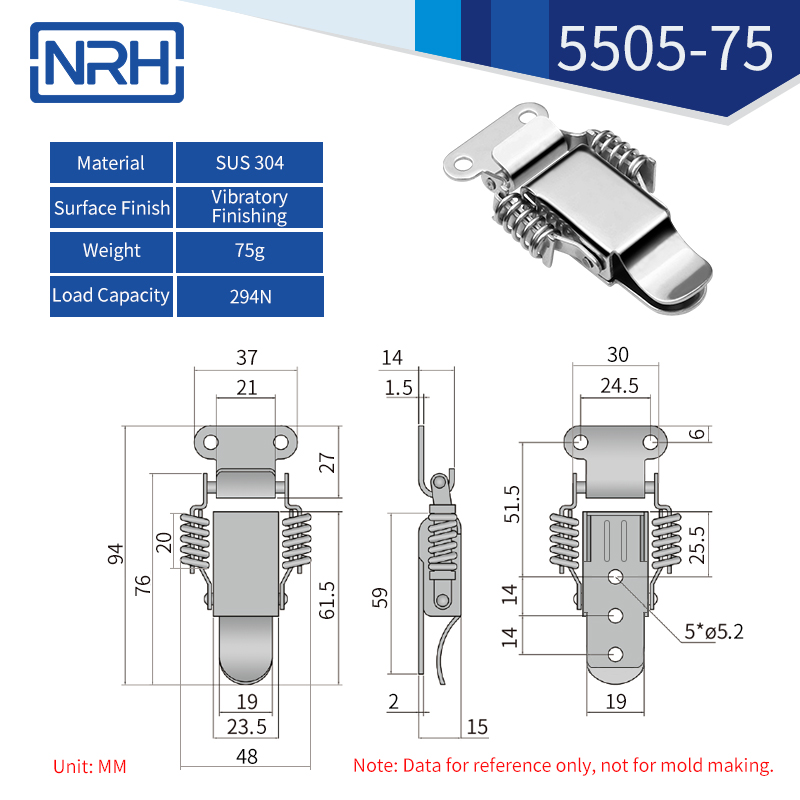

Based on the drawing, the latch features multiple mounting holes. Recommended stainless steel screws. Installation steps:

• Tools: Appropriate diameter drill bits, taps (for metal cases), screwdriver.
• Marking: Place the hook on the lid edge and mark its hole positions. Close the lid, place the strike plate on the case body aligned with the hook, and mark its holes.
• Drilling: Drill holes. For plastic or wood, use self-tapping screws. For metal, tap threads or use rivet nuts.
• Screw selection: Use stainless steel pan head screws with anti-rust washers. For vibrating environments, use medium-strength threadlocker.
• Alignment: Loosely mount both parts, close the lid, and press the latch. Adjust the strike plate position if the hook scrapes.
• Gap adjustment: With the latch fully closed, there should be no visible gap. If a gap exists, move strike plate inward; if too tight, move it outward.
• Anti-vibration: Check screw tightness periodically.

Typical Applications

Based on its high load capacity, SUS304 stainless steel construction, and secure mounting design, this latch set is ideal for:

• ATA Flight Cases: Large stage audio, film equipment, drone transport cases.
• Military Transit Cases: Communication equipment cases, ammunition boxes, instrument cases.
• Firefighting Cases: Personal protective equipment cases, rescue tool storage boxes.
• Heavy-Duty Luggage: Professional tool travel cases, large camera equipment cases.
• Industrial Machinery Enclosures: Large cabinet access doors, control panel covers, generator housings.
• Outdoor Power Distribution Boxes: Solar controller boxes, telecom outdoor cabinets.
• Medical Equipment Cases: Large portable medical devices, emergency carts.
• Export Crates: Wooden crates, plywood boxes.

Ordering & Compliance Information

This product is a complete latching set (hook + strike plate). Certifications (e.g., RoHS, REACH) are available upon request. OEM/ODM customization including laser marking and special packaging is supported. NRH offers CAD, 3D, UG, and SOLIDWORKS data download services.
