NRH 5806-60S Square Safety Toggle Latch – SUS304 Dual Spring Auto Retraction

NRH 5806-60S Square Safety Toggle Latch - SUS304 Stainless Steel, Vibratory Finish, Built‑in Dual Manganese Steel Springs Auto Retraction, 40kg Load

For aviation cases, medical equipment, power supply boxes, and precision instruments requiring high‑reliability locking and accidental opening prevention, ordinary latches often fail to balance convenience and long‑term safety. The NRH 5806-60S is a square safety toggle latch with secondary lock - the suffix "S" clearly indicates the secondary safety lock feature. Manufactured from SUS304 stainless steel with a vibratory finish, it offers excellent corrosion resistance and a hygienic satin surface. The latch features encapsulated dual manganese steel springs that automatically return the handle to an open position upon release for effortless one‑handed operation. The over‑center toggle mechanism provides stable clamping force, while the independent secondary safety lock physically prevents accidental opening due to vibration or unintended contact. Weighing just 41g with a 392N (approx. 40kg) load capacity and an overall length of approximately 60mm, it is compact yet robust. Mounting holes are 2×Ø3.3mm for simple surface mounting. Widely used on aviation cases, heavy‑duty luggage, firefighting cases, trunks, import/export wooden crates, machinery, instruments, marine equipment, medical boxes, and power supply enclosures. Clear NRH branding and heritage since 1996 assure quality.

Manufactured under ISO 9001. REACH, RoHS compliance available on request. OEM/ODM modifications (finish, logo) welcome. 2D/3D CAD drawings supplied.

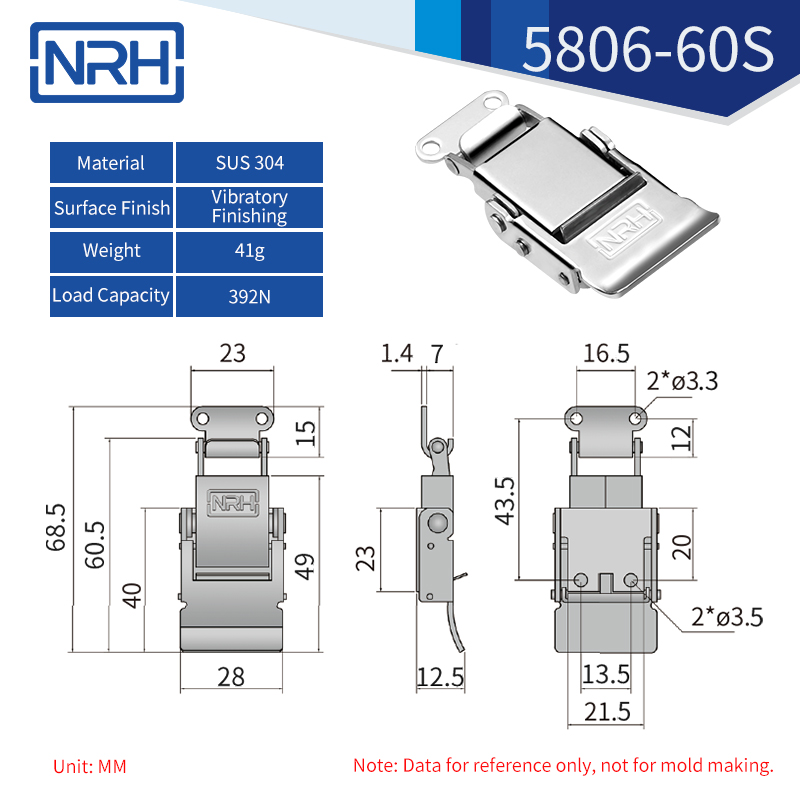

Key dimensions (see drawing): overall length approx. 60mm, mounting holes 2×Ø3.3mm. Refer to engineering drawing for other dimensions.

1. Square Design & Material Advantages

1.1 Square-Type Appearance & Low Profile
The unique square-type design allows installation in tight spaces, making it especially suitable for aviation cases, power supply boxes, and control cabinets where panel flatness is important. The square appearance also complements the clean aesthetic of modern industrial equipment, with more uniform force distribution during opening/closing.

1.2 Full Stainless Steel (SUS304)
Manufactured from Japanese standard SUS304 austenitic stainless steel (18% Cr, 8% Ni), offering excellent resistance to acids, alkalis, and salt spray. Unlike plated carbon steel, SUS304 retains its corrosion resistance even if the surface is scratched - essential for medical devices, marine applications, and outdoor cases exposed to moisture or chemicals.

1.3 Vibratory Finish
The vibratory finishing process uniformly deburrs the stamped parts, creating a smooth, satin surface with low roughness. This eliminates sharp edges, prevents bacterial entrapment, and makes cleaning and disinfection easy - critical for medical and food‑contact environments.

2. Encapsulated Dual Manganese Steel Springs Auto Retraction Mechanism

The core highlight of this safety model (suffix "S") is its encapsulated dual manganese steel spring design, which distinguishes it from standard models:

• Encapsulated parallel dual‑spring configuration: Two manganese steel springs arranged side‑by‑side in an encapsulated layout provide balanced, stable force output. Compared to a single‑spring design, the dual‑spring configuration offers higher fatigue life and gentler spring force decay - maintaining reliable retraction force even after tens of thousands of cycles.
• Auto retraction function: When the handle is lifted to unlock, the dual springs automatically pop the handle open to a preset angle, leaving the latch in a half‑open position for quick re‑engagement. This greatly improves convenience, especially for medical equipment, power supply boxes, and machinery access doors that require frequent opening and closing.
• Spring‑assisted positioning: When open, the spring force holds the handle at a preset angle, preventing it from drooping and interfering with operation, while also avoiding unnecessary contact with the case.

3. Secondary Safety Lock (Safety Lock) Working Principle

The suffix "S" indicates that this model features an independent secondary safety lock (secondary lock / safety lock), effectively preventing accidental opening:

• Over‑center primary lock: Press the handle past dead center - the mechanism self‑locks, generating constant clamping force. The latch will not loosen even under vibration.
• Safety lock automatic engagement: When the main handle is fully closed, a spring‑loaded safety lock tab automatically snaps into a groove on the handle, physically blocking it from lifting. Even with significant pulling force, the handle cannot be opened.
• Manual release to open: To open, the user must first slide or press the safety lock release - an audible "click" confirms release - then lift the main handle. This deliberate action prevents accidental opening by children or untrained personnel.

This "mechanical self‑lock + independent secondary lock" dual‑safety design makes the NRH 5806-60S ideal for medical equipment, child‑safety boxes, public facilities, and other high‑security applications.

4. Detailed Applications & Industry Examples

• Aviation flight cases / road cases - Long‑distance transport subjects cases to severe vibration; over‑center self‑locking ensures the lid stays closed, while the safety lock prevents accidental opening by loading personnel.
• Medical equipment / sterilizer containers - Medical cases require both frequent use and prevention of accidental opening. SUS304 withstands steam corrosion, vibratory finish is easy to clean, dual springs enable one‑handed operation, and the safety lock prevents unauthorized access.
• Power supply boxes / electrical equipment enclosures - Distribution boxes and EV charging station control cabinets need to prevent accidental opening by children or untrained personnel; safety latches provide an extra layer of security. NRH officially lists this as a "power supply box square latch"[reference:1].
• Firefighting cases / emergency response boxes - Quick access is critical in emergencies; spring‑assisted opening enables one‑handed rapid release, while the safety lock prevents accidental pop‑open that could scatter emergency supplies.
• Heavy‑duty luggage / industrial equipment cases - 40kg load capacity is sufficient for heavy toolboxes and generator enclosures; square appearance fits various industrial case styles.
• Machinery guards / access doors - High‑frequency inspection and maintenance cycles demand long spring fatigue life; over‑center locking resists vibration, and the safety lock ensures guards cannot be opened accidentally during operation.
• Instrument cases / laboratory equipment - Clean environments require burr‑free, easy‑to‑clean surfaces; vibratory finish meets these requirements, and the safety lock prevents unauthorized operation.
• Marine equipment boxes / offshore engineering gear - SUS304 stainless steel resists salt spray corrosion; the dual‑spring mechanism remains reliable in high‑humidity environments, suitable for marine and port applications.
• Import/export wooden crates / packing boxes - International shipping requires frequent customs inspection; easy‑open/easy‑close design improves logistics efficiency, while the safety lock prevents accidental pop‑open during transit.

5. Installation & Maintenance Guidelines

• Mounting: Drill mounting holes per engineering drawing. Surface mount with M3 or M4 screws through the 2×Ø3.3mm holes. Add large washers inside the panel to distribute pull forces.
• Adjustment: After installation, test open/close several times. The over‑center snap should be crisp, the safety lock should engage automatically, and spring retraction should be smooth. If too loose, add shims under the strike plate.
• Maintenance: Periodically inspect for rust, deformation, or debris. The dual manganese steel springs require no lubrication; the safety lock slide can be lightly oiled every six months.
• Emergency release: If the safety lock jams due to debris, use a small flat‑head screwdriver to gently pry the lock tab while lifting the handle, then clear the obstruction. Do not force.

6. Technical Specifications Summary

• Brand/Model: NRH 5806-60S (with secondary safety lock)
• Product Type: Square Safety Toggle Latch / Draw Latch with Secondary Lock
• Material: SUS304 Stainless Steel
• Finish: Vibratory Finishing (satin)
• Weight: 41g
• Load Capacity: 392N (approx. 40kg static pull)
• Overall Length (approx.): 60mm
• Mounting Holes: 2×Ø3.3mm (surface mount)
• Spring Configuration: Encapsulated dual manganese steel springs (auto retraction)
• Safety Feature: Independent secondary lock (auto‑engage, manual slide release)
• Operating Temperature: -20°C to +80°C (stainless steel springs remain stable)
• Compliance: ISO 9001 certified; REACH, RoHS available on request.
• Note: Drawings for reference. NRH manufacturing since 1996. OEM/ODM welcome (custom finishes, logo engraving, modified hole patterns).

7. Why Choose NRH 5806-60S Square Safety Toggle Latch?

• Dual safety protection - Over‑center self‑lock + independent secondary lock - eliminates accidental opening, ideal for medical, child‑safety, and public facility applications.
• Auto retraction - Built‑in dual manganese steel springs automatically pop the handle open upon release - effortless operation, high efficiency.
• Square compact appearance - Low‑profile, space‑saving design that suits modern industrial equipment and power supply boxes.
• Full stainless steel + vibratory finish - Lifetime rust protection, hygienic, easy to clean - meets medical and food‑contact standards.
• Over‑center self‑locking - Resists vibration loosening, safe and reliable.
• Lightweight - Only 41g - adds minimal weight to equipment.
• Proven reliability - Decades of industrial use, trusted by global equipment manufacturers.
• Customizable - Surface finish, logo engraving, modified hole patterns available.

If you need a rust‑proof, auto‑retracting, safety‑lock square toggle latch for aviation cases, medical equipment, power supply boxes, or industrial machinery, the NRH 5806-60S is a field‑proven solution. Contact NRH sales for samples, 2D/3D CAD files, or technical support.
