NRH 5631-98S Heavy Duty Stainless Steel Safety Toggle Latch – SUS304 80kg Secondary Lock

NRH 5631-98S Heavy Duty Stainless Steel Safety Toggle Latch - SUS304, Vibratory Finish, 80kg Load, Secondary Lock

For large machine tool guards, heavy-duty flight cases, and high-power generator enclosures that require extreme clamping force and absolute safety, standard toggle latches often lack sufficient load capacity. The NRH 5631-98S is a heavy-duty safety toggle latch with a secondary lock - the suffix "S" clearly indicates the secondary lock feature. Manufactured from SUS304 stainless steel with a vibratory finish, it offers excellent corrosion resistance, a hygienic satin surface, and high durability. The robust over-center mechanism delivers an impressive 784N (approx. 80kg) static pull load while weighing only 86g, with an overall length of approximately 98mm - achieving an outstanding strength-to-weight ratio. An independent secondary safety lock automatically engages when the handle is fully closed, requiring manual release to open - eliminating accidental opening. Mounting holes are 2×Φ4.9mm for simple surface mounting. Ideal for heavy machine tool safety doors, large transit cases, food processing equipment, medical sterilizers, and outdoor power cabinets where high load capacity and anti-misoperation are critical. Clear NRH branding and heritage since 1996 assure quality.

Manufactured under ISO 9001. REACH, RoHS compliance available on request. OEM/ODM modifications (finish, logo) welcome. 2D/3D CAD drawings supplied.

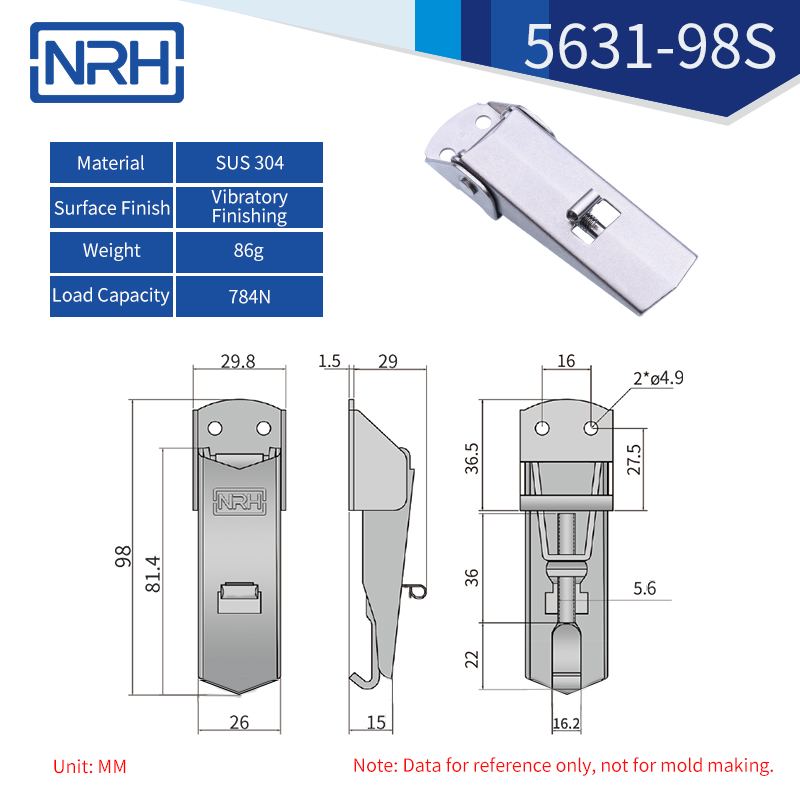

Key dimensions (see drawing): overall length approx. 98mm, mounting holes 2×Φ4.9mm. Refer to engineering drawing for other dimensions.

1. Heavy-Duty Design & Material Advantages

1.1 80kg High Load Capacity
By optimizing cross-section and linkage ratios, this latch generates far greater clamping force than standard models. The 784N rating can securely lock doors or lids weighing up to 80kg, even under repeated shock and vibration. Ideal for large CNC machine guards, heavy flight cases, and generator access panels.

1.2 Solid SUS304 Stainless Steel
All metal components (including the spring) are made of SUS304 stainless steel, resisting salt spray, acids, and alkalis - essential for food, pharmaceutical, and marine environments where rust is unacceptable.

1.3 Vibratory Finish
The vibratory finishing process removes all burrs, creating a smooth, satin surface that does not trap dirt and is easy to clean and disinfect. Sharp edges are eliminated, providing comfortable operation and improved safety.

2. Secondary Lock Working Principle

This latch combines a classic over-center four-bar mechanism with an independent spring-loaded secondary safety lock:

• Primary lock (over-center): Press the handle - it self-locks past dead center, generating constant pull force. Vibration will not release it.
• Secondary lock: Once the handle is fully closed, a spring-loaded locking tab snaps into a groove on the handle. To open, the user must manually slide or press the safety release - a deliberate action that prevents accidental lifting.

This dual-safety design effectively prevents accidental opening due to strong vibration, unintended contact, or untrained operation - critical for personnel safety, valuable cargo, and public infrastructure.

3. Detailed Applications & Industry Examples

• Large machine tool guards (CNC, gantry mills, press lines) - High vibration during operation; 80kg load capacity handles heavy doors, secondary lock ensures only operators can open.
• Heavy-duty flight cases / military transit cases - Severe road vibration during long transport; high load prevents lid deformation, secondary lock stops accidental pop-open.
• Large generator / air compressor enclosures - Field maintenance requires quick access; the latch offers one‑hand locking and safety lock, reliable under vibration.
• Food processing equipment (large mixers, retorts) - High pressure/temperature inside; accidental opening can cause injury. Stainless steel is corrosion-resistant and easy to clean, secondary lock meets safety regulations.
• Medical sterilizers / high-pressure steam chambers - Pressure vessel doors require double locking; this latch serves as a physical lock to prevent unauthorized opening.
• Outdoor power cabinets (HV switchgear, EV charging station clusters) - Heavy doors need high load, stainless steel resists outdoor corrosion, safety lock prevents children or passersby from tampering.
• Automation line safety doors - Complies with ISO 14119 guard locking requirements; secondary lock can serve as a tool‑operated lock alternative, improving productivity.

4. Installation & Maintenance Guidelines

• Mounting: Drill holes per engineering drawing. Use stainless steel M5 countersunk screws; add large washers inside the panel to distribute pull forces. Do not overtighten.
• Adjustment: Test open/close several times after installation. The over-center snap should be crisp, and the secondary lock should engage automatically. If too loose, add shims under the strike plate.
• Maintenance: Periodically inspect for rust, deformation, or debris. Lubricate pivot points and lock slide with light oil every six months. In high-vibration environments, check screw tightness regularly.
• Emergency release: If the secondary lock jams, use a small flat-head screwdriver to gently pry the lock tab while lifting the handle. Do not force.

5. Technical Specifications Summary

• Brand/Model: NRH 5631-98S (with secondary lock)
• Type: Heavy Duty Safety Toggle Latch / Draw Latch
• Material: SUS304 Stainless Steel (body and spring)
• Finish: Vibratory Finishing (satin)
• Weight: 86g
• Rated Load: 784N (approx. 80kg static pull)
• Overall Length (approx.): 98mm
• Mounting Holes: 2×Φ4.9mm (surface mount)
• Safety Feature: Independent secondary lock (auto-engage, manual slide release)
• Operating Temperature: -20°C to +80°C (stainless steel spring stable)
• Compliance: ISO 9001 certified; REACH, RoHS available on request.
• Note: Drawings for reference. NRH manufacturing since 1996. OEM/ODM welcome.

6. Why Choose NRH Heavy Duty Stainless Steel Safety Latch?

• Ultra-high load (80kg) - Meets heavy industrial requirements.
• Full stainless steel + vibratory finish - Lifetime rust protection, hygienic, easy to clean.
• Dual safety - Over-center self-lock + independent secondary lock - no accidental opening.
• Easy operation - One-handed closing with auto safety lock; simple release.
• Proven reliability - Decades of industrial use, trusted by global equipment manufacturers.
• Customizable - Surface finish, logo engraving, modified hole patterns available.

If you need a high-load, anti-accidental, corrosion-resistant safety toggle latch for heavy equipment, the NRH 5631-98S is a field‑proven solution. Contact NRH sales for samples, 2D/3D CAD files, or technical support.
