NRH 5624-56s Stainless Steel Safety Toggle Latch – SUS304 Secondary Lock Vibratory Finish

NRH 5624-56s Stainless Steel Safety Toggle Latch - SUS304, Vibratory Finish, Secondary Lock, Anti-Accidental Opening, Food & Medical Grade

In food processing, medical equipment, outdoor cabinets, and high-value transport cases, standard toggle latches that rely solely on over-center self-locking can still open accidentally due to strong vibration or unintended contact. The NRH 5624-56s is a professional safety toggle latch with a secondary lock - the suffix "s" clearly indicates the safety lock feature, designed for applications requiring dual protection.

1. Material & Construction Advantages

1.1 Full Stainless Steel (SUS304)
Manufactured from Japanese standard SUS304 austenitic stainless steel (18% Cr, 8% Ni), offering excellent resistance to acids, alkalis, and salt spray. Unlike plated carbon steel, SUS304 retains its corrosion resistance even if the surface is scratched - essential for food, pharmaceutical, and medical environments where frequent washdowns and chemical disinfectants are used.

1.2 Vibratory Finishing
The vibratory finishing process uniformly deburrs the stamped parts, creating a smooth, satin surface with low roughness. This eliminates sharp edges, prevents bacterial entrapment, and makes cleaning easy. The surface is also scratch-resistant and pleasant to the touch.

1.3 Secondary Lock Mechanism
In addition to the traditional over-center toggle, a spring-loaded secondary lock is integrated into the handle. When the main handle is pressed fully closed, the safety lock automatically engages, physically blocking the handle from lifting. To open, the user must manually release the secondary lock before raising the handle. This dual-stage design prevents accidental opening due to vibration, impact, or inexperienced operation - ideal for child-safety, public access, or high-risk industrial settings.

2. Working Principle & Mechanical Features

The latch uses a classic four-bar over-center mechanism combined with a secondary lock:

• Primary lock (over-center): When the handle is pressed past the dead center, the linkage reverses force direction, pulling the two surfaces tightly together. This mechanical lock does not rely on springs or friction, providing consistent clamping force and resistance to vibration.
• Secondary lock: A spring-loaded locking tab snaps into position once the handle is fully closed. To release, the user must slide or press the safety tab - a deliberate action that prevents accidental lifting.

This dual-safety design has been proven over decades of industrial use and is capable of withstanding high shock loads.

3. Detailed Applications & Industry Examples

• Food processing machinery - Mixer inspection windows, dough machine guards, retort doors. Prevents accidental opening during high-vibration operation, and SUS304 meets FDA indirect food contact standards.
• Medical equipment - Autoclaves, sterilizers, medical cart drawers. The secondary lock ensures that only trained personnel can open pressurized or hot chambers, reducing burn and contamination risks.
• Laboratory instruments - Biosafety cabinets, incubators, centrifuge lids. Allows quick access while preventing accidental opening that could release biohazards.
• Outdoor cabinets (telecom/power) - 5G base station cabinets, EV charging station enclosures, railway signal boxes. Stainless steel resists weather and UV, and the safety lock prevents unauthorized or accidental access to live electrical components.
• Industrial flight / transit cases - ATA cases for audio equipment, military gear, precision instruments. Long-distance road or air transport subjects cases to severe vibration; the secondary lock ensures the lid stays closed even if the main toggle is stressed.
• Child-safety & tamper-resistant boxes - Medication storage, household hazardous material containers, battery compartments. The secondary lock requires a two-step release, deterring children from opening.
• Automation & machine guards - Robot workcell access doors, CNC machine safety panels. Meets international guard locking requirements (e.g., ISO 14120) where a tool or two-handed release is preferred.

4. Installation & Maintenance Guidelines

• Mounting: Use the engineering drawing to drill mounting holes. Surface mount with stainless steel M4 or M5 countersunk screws. Add large washers inside the panel to distribute pull forces, preventing tear-out under heavy load.
• Adjustment: After installation, test the closing action several times. The main handle should snap into the over-center position with a firm click, and the secondary lock should engage automatically. If the latch closes too loosely, add shims under the strike plate; if too tight, check for misaligned holes.
• Maintenance: Inspect periodically for rust, deformation, or debris. Lubricate pivot points and the secondary lock slide with food-grade lubricant every six months or as needed. In outdoor high-vibration environments, check screw tightness regularly.
• Emergency release: If the secondary lock jams, use a small flat-head screwdriver to gently pry the lock tab while lifting the handle. Do not force - contact NRH for service if persistent issues occur.

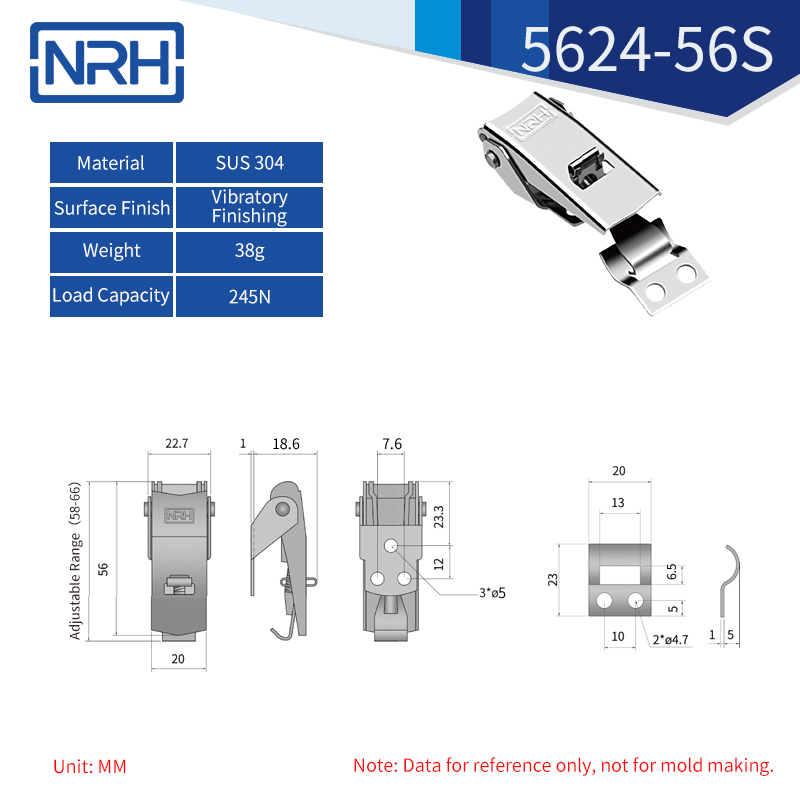

5. Technical Specifications Summary

• Brand/Model: NRH 5624-56s (with secondary lock)
• Type: Safety Toggle Latch / Draw Latch with Secondary Lock
• Material: SUS304 Stainless Steel (body and spring)
• Finish: Vibratory Finishing (satin)
• Weight: 38g
• Rated Load: 245N (approx. 25kg static pull)
• Overall Length (approx.): 56mm
• Mounting: Surface mount (refer to drawing for hole sizes and positions)
• Safety Feature: Independent secondary lock (auto-engage, manual release)
• Operating Temperature: -20°C to +80°C (stainless steel spring remains reliable)
• Compliance: ISO 9001 certified; REACH, RoHS available on request.
• Note: Drawings for reference. NRH manufacturing since 1996. OEM/ODM welcome (custom finishes, logo engraving, modified hole patterns).

6. Why Choose NRH Safety Stainless Steel Toggle Latch?

• Dual safety: Over-center self-lock + independent secondary lock - eliminates accidental opening.
• True stainless steel: SUS304 construction provides lifetime corrosion resistance, hygienic and food-contact safe.
• Vibratory finish: Smooth, easy-to-clean, scratch-resistant, and comfortable to operate.
• User-friendly: One-handed closing with automatic safety lock; intuitive release - no tools required.
• Proven reliability: Decades of industrial use, trusted by major equipment manufacturers worldwide.
• Customizable: NRH offers brushed, electropolished, or powder-coated finishes, as well as custom hole patterns and logo marking.

If you are looking for a reliable, anti-accidental-opening toggle latch for food, medical, outdoor, or transport applications, the NRH 5624-56s is a field-proven solution. For samples, 2D/3D CAD files, or technical support, please contact NRH sales team.
