NRH 5622-73 Over-Center Toggle Latch – Blue Zinc Industrial Vibration Resistant

NRH 5622-73 Toggle Latch - Over‑Center Draw Latch

1. Product Specifications

• Brand: NRH
• Model: 5622-73
• Material: Mild Steel
• Finish: Blue Zinc Plating
• Weight: 85g
• Load Capacity: 40kg
• Mounting Holes: 2×Φ5.3mm
• Overall Length (approx.): 72mm
• Product Type: Toggle Latch / Draw Latch
• Safety Lock: No (no secondary lock)

2. Product Positioning & Classification

The NRH 5622-73 is a toggle latch (draw latch) that uses the over‑center mechanical principle to achieve locking. Its core function is to pull two separate objects together and lock them securely, preventing loosening under vibration or external force. This model has no secondary lock, relying solely on the over‑center self‑locking mechanism - easy to operate, suitable for standard industrial applications.

3. Working Principle

The over‑center mechanism is the heart of the toggle latch. When the handle is pressed past the dead center position, the direction of force reverses - from pushing apart to pulling tight - creating constant clamping force. This mechanical lock does not rely on springs or friction, so vibration will not cause loosening. The operator applies minimal force, and the linkage multiplies it to generate a strong pull at the hook (40kg load capacity).

4. Model Number Breakdown

5622 indicates the draw latch series; 73 indicates overall length approx. 73mm - a medium size for standard industrial access doors.

5. Material & Finish

Mild steel provides high strength and impact resistance. Blue zinc plating offers better corrosion resistance than clear zinc, suitable for indoor and sheltered industrial environments.

6. Applications & Industry Examples

• Machine tool guards - CNC, press guards; vibration‑proof
• Electrical control cabinets / PLC enclosures - tight seal, improved IP protection
• Welding/assembly fixtures - press to clamp, lift to release - reduces cycle time
• Industrial flight cases - AV, military cases; road vibration will not pop open
• Construction machinery access doors - excavators, loaders; excellent vibration resistance
• Generator enclosures - quick access, no loosening under operation
• Outdoor cabinets - telecom, power boxes; blue zinc resists corrosion, over‑center withstands wind and vibration
• HVAC access doors - quick opening for filter inspection
• Injection mold lifting ring blocks - prevents accidental release during lifting
• Automation equipment guards - robot safety fences, anti‑loosening solution

7. Installation & Usage Tips

• Secure with M5 screws or rivets through 2×Φ5.3mm holes; add backing washers for heavy loads.
• Fixed hook length - add shims under the strike plate to fine‑tune closing tension.
• Press the black handle fully down until parallel with the base to lock; lift to release.
• Periodically inspect for deformation or corrosion; lubricate pivot points.

8. Technical Specifications

• Brand/Model: NRH 5622-73
• Product Type: Toggle Latch / Draw Latch
• Safety Lock: No
• Material: Mild Steel
• Finish: Blue Zinc Plating
• Weight: 85g
• Load Capacity: 40kg
• Mounting: Surface mount, 2×Φ5.3mm holes
• Approx. Dimensions: Overall length 72mm
• Compliance: ISO 9001 / REACH / RoHS (available on request)

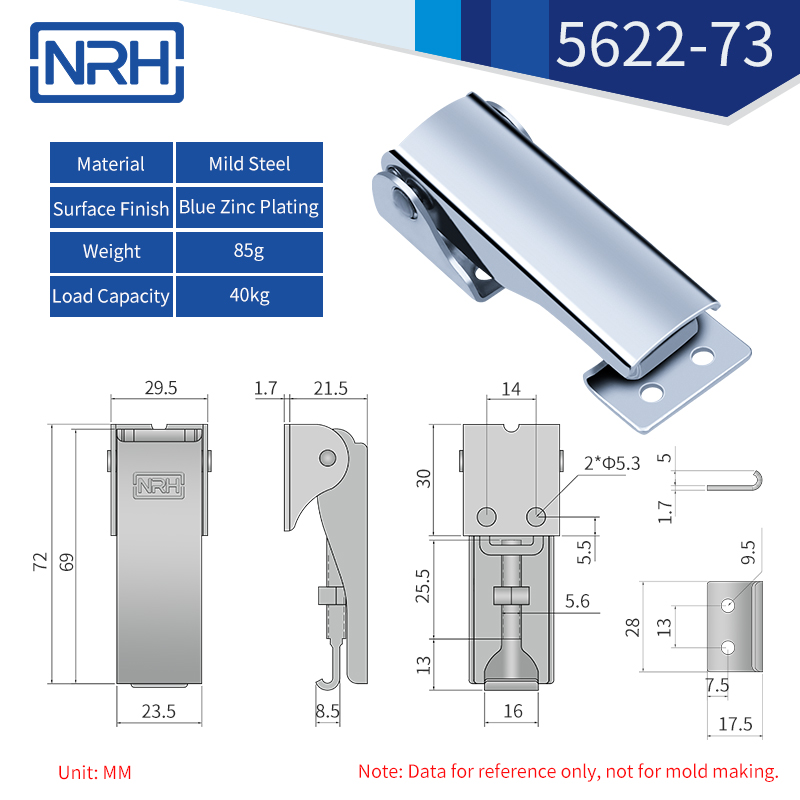

• Note: Drawings for reference. NRH manufacturing since 1996. OEM/ODM welcome.

9. Why Industrial Equipment Makers Choose Toggle Latches

• Vibration resistance: Over‑center mechanism will not self‑loosen under vibration.
• Easy operation: Tool‑free, one‑handed opening/closing.
• Stable clamping force: Constant force that does not degrade over time.
• Cost‑effective: Mild steel + blue zinc offers strength at reasonable cost.
• Proven reliability: Decades of industrial use, globally adopted.

For stainless steel or safety‑lock versions, please contact NRH sales.
