NRH 5608-70K-KS Adjustable Toggle Latch with Lock Hole | SUS304 Stainless Steel Draw Latch
Made to Order
The NRH 5608-70K-KS is a professional-grade Adjustable Toggle Latch engineered to provide a secure and customizable clamping solution for demanding enclosures. Manufactured from SUS304 stainless steel and finished with a hygienic Electropolishing process, it offers exceptional corrosion resistance. Its defining features include an integrated lock hole for padlock attachment and a precision screw mechanism that allows the effective length to be finely tuned between 70mm and 81.5mm, ensuring a perfect, rattle-free seal between two fastened panels or doors. With a net weight of 42g and a robust 343N (35kg) tensile load, it delivers reliable performance.
Primary Applications:
This versatile and secure latch is ideal for applications where precise fit and tamper resistance are required:
-
Secure Industrial Cabinets: Electrical control panels, server racks, and network cabinets requiring lockable access.
-
Precision Instrument & Calibration Cases: Housing for sensitive measurement devices and laboratory equipment.
-
Military & Aerospace Equipment: Ruggedized transport cases, field communication boxes, and avionics enclosures.
-
Medical & Sanitary Equipment: Sterilization containers and medical carts where hygiene and security are paramount.
-
High-Value Goods Transportation: Secure shipping containers and protective cases for valuable cargo.

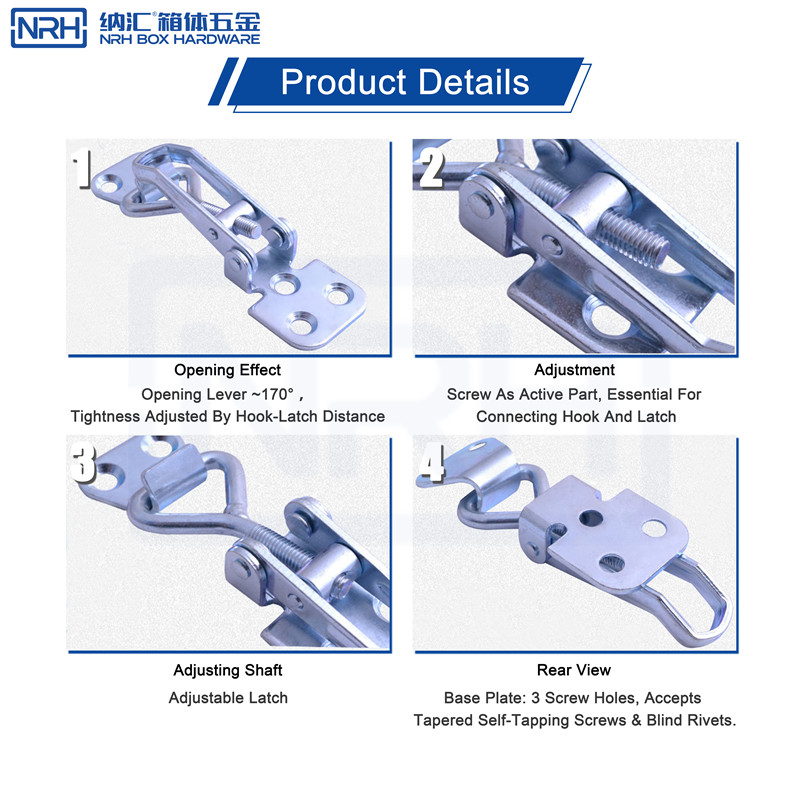

How It Works (Operating Principle):
This latch utilizes a robust toggle mechanism for primary closure. The key feature is the adjustable screw on the hook assembly, which changes the effective reach. By turning this screw, the installation length can be precisely set between 70mm and 81.5mm to compensate for gaps or tolerances. When closed, the lever provides an over-center lock. The dedicated lock hole aligns to accept a padlock shackle, physically preventing the lever from being lifted and opened without the key.
Features & Specifications:
-
Dual Security Features: Combines a sturdy toggle lock with a dedicated lock hole for added physical security.
-
Precision Length Adjustment: Fine-tune the installation length (70mm - 81.5mm) via the integrated screw for an optimal fit.
-
Premium SUS304 & Electropolishing: Offers superior corrosion resistance, strength, and an easy-to-clean, hygienic surface.
-
High Load Capacity: Reliably withstands 343N (35kg) of tensile force.
-
Engineered for Accurate Mounting: Design includes clear mounting hole patterns (3x Ø5mm, 3x Ø7.8mm as per drawing).
Technical Specifications:
|
Item
|
Specification
|
|---|---|
|
Brand
|
NRH Box Hardware
|
|
Model Number
|
5608-70K-KS
|
|
Product Name
|
Adjustable Toggle Latch (with Lock Hole)
|
|
Primary Material
|
SUS304 Stainless Steel
|
|
Surface Finish
|
Electropolishing
|
|
Lock Hole
|
Yes
|
|
Adjustment Range
|
70mm - 81.5mm
|
|
Product Weight
|
42g
|
|
Tensile Load
|
343N (35kg)
|
|

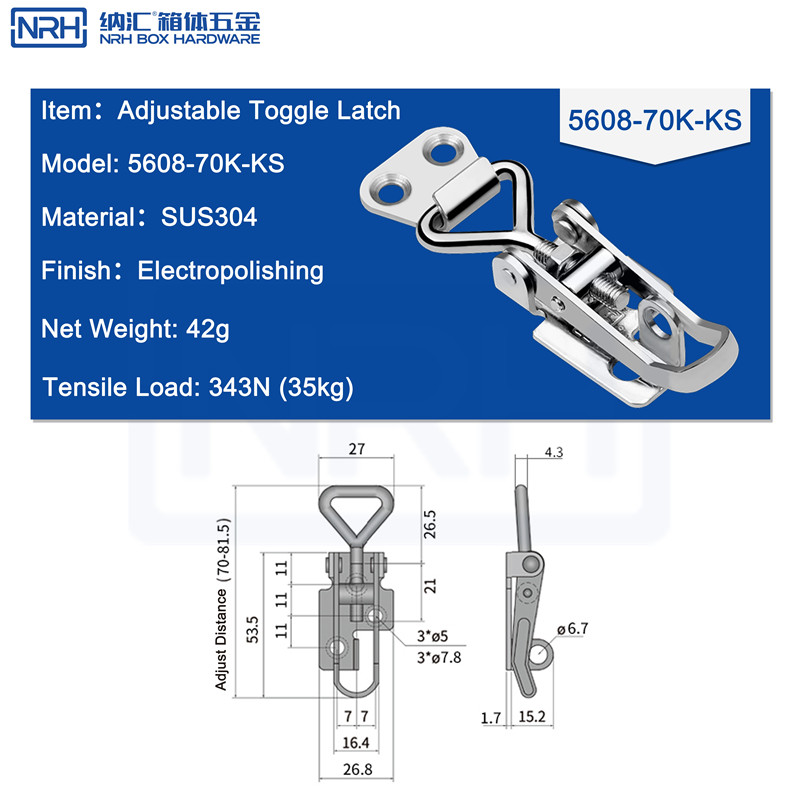

Key Dimensions
|
Various as per drawing (e.g., 53.5mm, 27mm, 26.8mm, 16.4mm, 15.2mm, 11mm, 4.3mm, 1.7mm). Mounting Holes: 3x Ø5mm, 3x Ø7.8mm.
|
|
Compliance
|
ISO 9001, SGS, REACH, RoHS, SVHC
|
| Brand | NRH |
|---|---|
| Country of Origin | China |
| Certifications | CE, ISO9001, UL, SGS, RoHS |
| Minimum Order Quantity | 1 |
| Production Lead Time | 7-30 days |
| Stock Status | Made to Order |
Adjustable Toggle Latches Applications
Widely used across industries - from industrial manufacturing to specialized fields, delivering reliable hardware solutions.
Manufacturing & Industrial
Latches for production line equipment enclosures, ensuring operational safety and secure closure.
Automotive & Transportation
Latches for transit cases, preventing loosening during long-distance road transport.
Electronics & Technology
Latches for electronic cabinets, providing dust-proof and tamper-resistant security.
Medical & Healthcare
Corrosion-resistant latches for medical device enclosures, meeting strict hygiene standards.
Construction & Engineering
Latches for toolboxes and outdoor equipment, built to withstand harsh weather conditions.
Aerospace
Lightweight, high-strength latches for aviation cases, meeting aerospace weight requirements.
Telecommunications
Security latches for telecom cabinets, preventing unauthorized access to critical infrastructure.
Marine & Offshore
316 stainless steel latches for marine enclosures, resisting saltwater corrosion in harsh sea conditions.
Energy & Power
Heavy-duty latches for power distribution cabinets, ensuring safe closure in high-voltage environments.
Defense & Military
MIL-SPEC latches for military cases, meeting rigorous defense-grade standards.
Logistics & Warehousing
Latches for shipping cases, reliable and durable through frequent loading and unloading cycles.
Security & Surveillance
Tamper-proof latches for surveillance cabinets, preventing unauthorized access to security equipment.
Rail & Transit
Fire-retardant latches for train equipment cabinets, meeting railway fire safety standards.
Oil & Gas
ATEX-certified explosion-proof latches for hazardous area enclosures.
Data Centers
Latches for server racks, providing secure access control for IT maintenance operations.
What is the minimum order quantity?
Our minimum order quantity is 1 units. For larger orders, please contact us for volume pricing.
What payment methods do you accept?
We accept T/T, L/C, PayPal, and Western Union. Payment terms can be negotiated based on order size and business relationship.
Do you offer custom OEM/ODM services?
Yes, we provide OEM and ODM services. Please contact our sales team to discuss your specific requirements.
What are the shipping options?
We offer global shipping via DHL, FedEx, UPS, and sea freight. Shipping costs are calculated based on destination and order quantity.
