NRH 5610-69-KS Adjustable Toggle Latch | SUS304 Stainless Steel Draw Latch
Made to Order
The NRH 5610-69-KS is a precision-engineered Adjustable Toggle Latch designed for applications requiring a secure and customizable closure solution. Crafted from premium SUS304 stainless steel and finished with a smooth Electropolishing process, this latch offers superior corrosion resistance and a clean, hygienic surface. Its key feature is an adjustable length mechanism with a range of 66.5mm to 81.2mm, allowing for precise alignment and tensioning when fastening two panels or doors. With a net weight of only 38g and a robust 343N (35kg) tensile load capacity, it delivers reliable performance in a compact form factor.
Primary Applications:
This adjustable latch is ideal for scenarios where panel alignment or door gaps may vary, ensuring a perfect fit every time:
-
Precision Instrument Cases: Calibration equipment boxes, sensitive measurement device housings, and laboratory instrument enclosures.
-
Industrial & Electrical Cabinets: Control panels, server racks, and network cabinets where door alignment needs fine-tuning.
-
Aerospace & Military Equipment: Avionics cases, field communication gear, and ruggedized transport containers requiring secure, adaptable fastening.
-
Medical & Sanitary Equipment: Sterilization containers, medical carts, and cleanroom compatible enclosures where hygiene is critical.
-
Transportation & Logistics: High-value goods transit cases, specialized shipping containers, and modular storage systems.

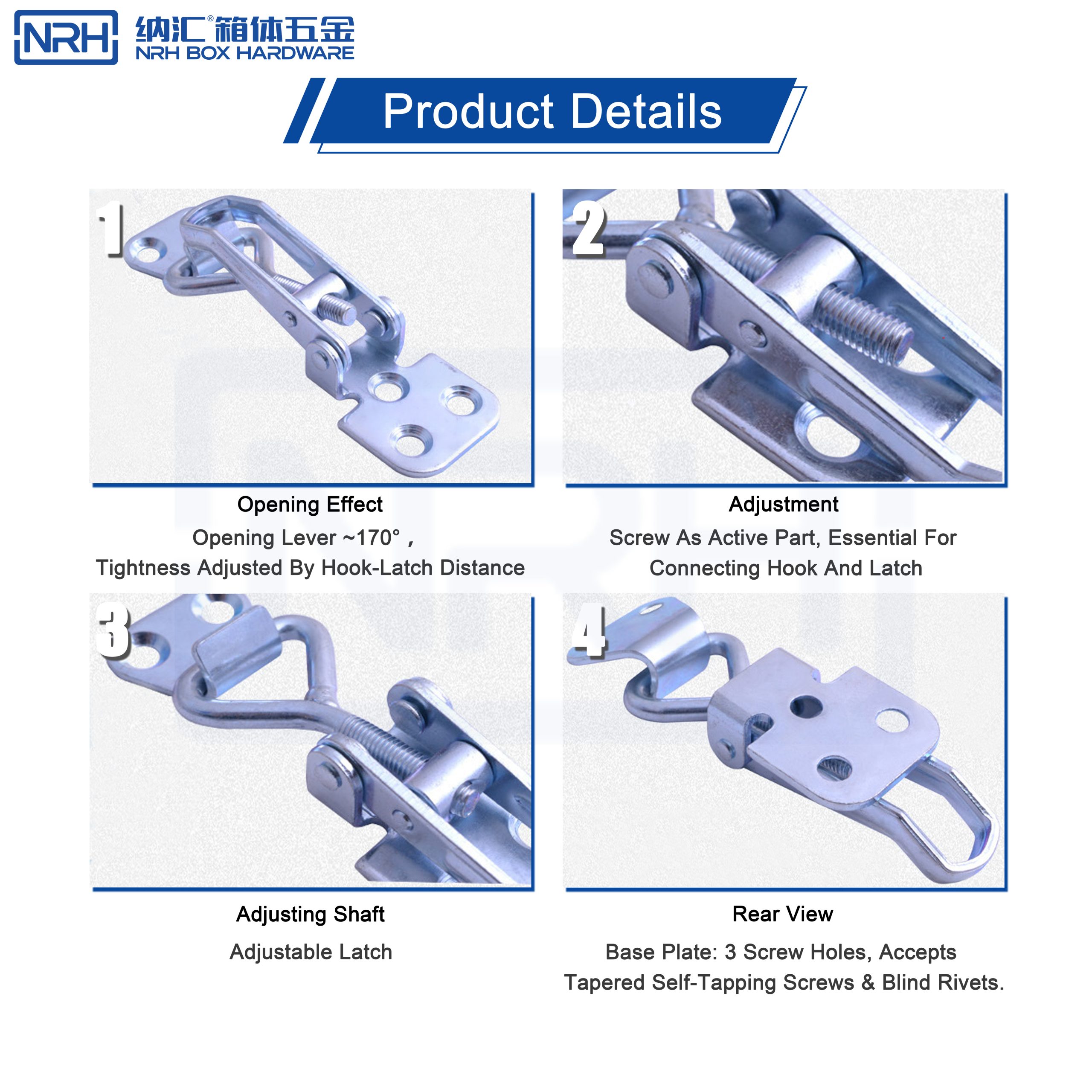

How It Works (Operating Principle & Adjustability):
This latch operates on a secure toggle mechanism. The lever engages a hook to pull two surfaces together. Its defining feature is the integrated adjustable screw on the hook assembly. By turning this screw, the effective length of the latch can be finely tuned within a 66.5mm to 81.2mm range. This allows users to compensate for manufacturing tolerances, panel warpage, or gasket compression, ensuring a tight and rattle-free seal between the fastened objects.
Features & Specifications:
-
Premium SUS304 Material: Offers excellent corrosion resistance, strength, and is suitable for hygienic environments.
-
Electropolished Finish: Provides a smooth, ultra-clean, and burr-free surface that is easy to sanitize and has enhanced corrosion resistance.
-
Precision Length Adjustment: Features a screw mechanism for fine-tuning the effective length (66.5mm - 81.2mm), enabling a perfect fit and optimal clamping force.
-
High Strength, Lightweight: Weighs only 38g while delivering a strong 343N (35kg) tensile load.
-
Precise Mounting: Designed with multiple mounting hole patterns (including 3x ∅5.2mm and 3x ∅8mm as per drawing) for flexible and secure installation.
Technical Specifications:
|
Item
|
Specification
|
|---|---|
|
Brand
|
NRH Box Hardware
|
|
Model Number
|
5610-69-KS
|
|
Product Name
|
Adjustable Toggle Latch
|
|
Primary Material
|
SUS304 Stainless Steel
|
|
Surface Finish
|
Electropolishing
|
|
Adjustment Range
|
66.5mm - 81.2mm
|
|
Product Weight
|
38g
|
|
Tensile Load
|
343N (35kg)
|
|
Key Dimensions
|
Height: ~29mm, Width: ~27.5mm. Mounting Holes: 3x ∅5.2mm, 3x ∅8mm. Refer to the provided detailed technical drawing for all dimensions (e.g., 52.5mm, 28mm, 16.4mm, etc.).
|
|
Compliance
|
ISO 9001, SGS, REACH, RoHS, SVHC
|
| Brand | NRH |
|---|---|
| Country of Origin | China |
| Certifications | CE, ISO9001, UL, SGS, RoHS |
| Minimum Order Quantity | 1 |
| Production Lead Time | 7-30 days |
| Stock Status | Made to Order |
Adjustable Toggle Latches Applications
Widely used across industries - from industrial manufacturing to specialized fields, delivering reliable hardware solutions.
Manufacturing & Industrial
Latches for production line equipment enclosures, ensuring operational safety and secure closure.
Automotive & Transportation
Latches for transit cases, preventing loosening during long-distance road transport.
Electronics & Technology
Latches for electronic cabinets, providing dust-proof and tamper-resistant security.
Medical & Healthcare
Corrosion-resistant latches for medical device enclosures, meeting strict hygiene standards.
Construction & Engineering
Latches for toolboxes and outdoor equipment, built to withstand harsh weather conditions.
Aerospace
Lightweight, high-strength latches for aviation cases, meeting aerospace weight requirements.
Telecommunications
Security latches for telecom cabinets, preventing unauthorized access to critical infrastructure.
Marine & Offshore
316 stainless steel latches for marine enclosures, resisting saltwater corrosion in harsh sea conditions.
Energy & Power
Heavy-duty latches for power distribution cabinets, ensuring safe closure in high-voltage environments.
Defense & Military
MIL-SPEC latches for military cases, meeting rigorous defense-grade standards.
Logistics & Warehousing
Latches for shipping cases, reliable and durable through frequent loading and unloading cycles.
Security & Surveillance
Tamper-proof latches for surveillance cabinets, preventing unauthorized access to security equipment.
Rail & Transit
Fire-retardant latches for train equipment cabinets, meeting railway fire safety standards.
Oil & Gas
ATEX-certified explosion-proof latches for hazardous area enclosures.
Data Centers
Latches for server racks, providing secure access control for IT maintenance operations.
What is the minimum order quantity?
Our minimum order quantity is 1 units. For larger orders, please contact us for volume pricing.
What payment methods do you accept?
We accept T/T, L/C, PayPal, and Western Union. Payment terms can be negotiated based on order size and business relationship.
Do you offer custom OEM/ODM services?
Yes, we provide OEM and ODM services. Please contact our sales team to discuss your specific requirements.
What are the shipping options?
We offer global shipping via DHL, FedEx, UPS, and sea freight. Shipping costs are calculated based on destination and order quantity.
