NRH 8403-50 Stainless Steel Butt Hinge | SUS 304 15kg Load for Cabinet & Case

The NRH 8403-50 is a compact and high‑quality stainless steel butt hinge designed for applications demanding reliability, corrosion resistance, and a clean finish. Manufactured from SUS 304 stainless steel with a smooth vibratory finishing, this hinge delivers excellent durability, easy maintenance, and a uniform satin‑like surface. Weighing only 18g with a 147N (15kg) bearing load, it is perfectly suited for light to medium‑duty enclosures such as instrument cases, electrical cabinets, and technical furniture.

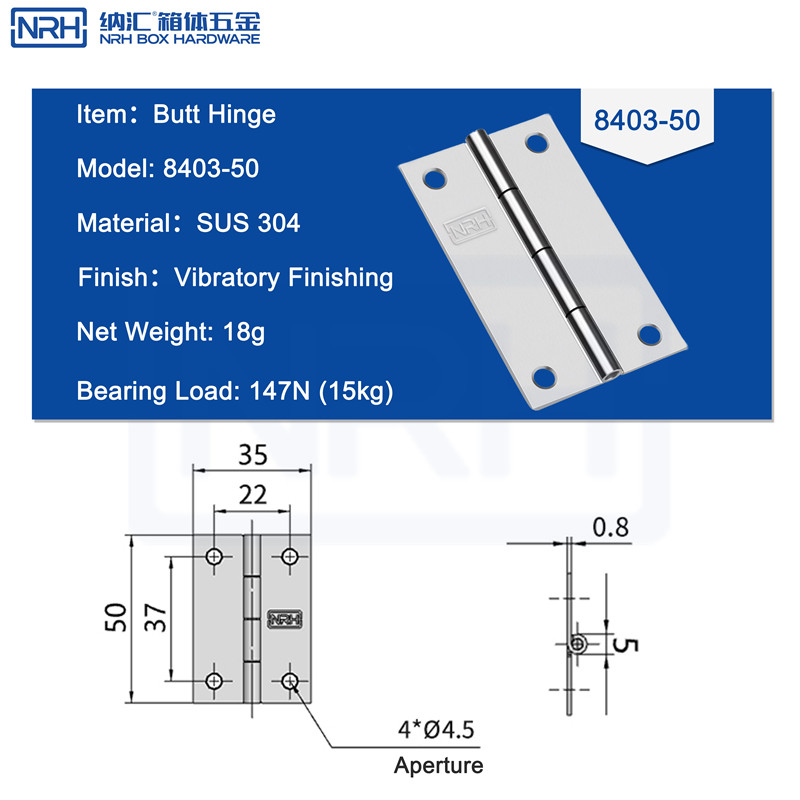

The hinge provides smooth pivoting action for doors, lids, and access panels. Key dimensions include a total length of 50mm, width of 25mm, and material thickness of 0.8mm, with 4x Ø4.5mm mounting holes for straightforward and stable installation.

The NRH 8403-50 is manufactured by NRH Box Hardware - a trusted manufacturer with a legacy since 1996. Regarding international compliance (ISO 9001:2000, SGS, REACH, RoHS), these standards can be supported based on customer requirements and applicable costs - please contact us for specific certification needs. We offer flexible OEM and ODM services to meet your design specifications.

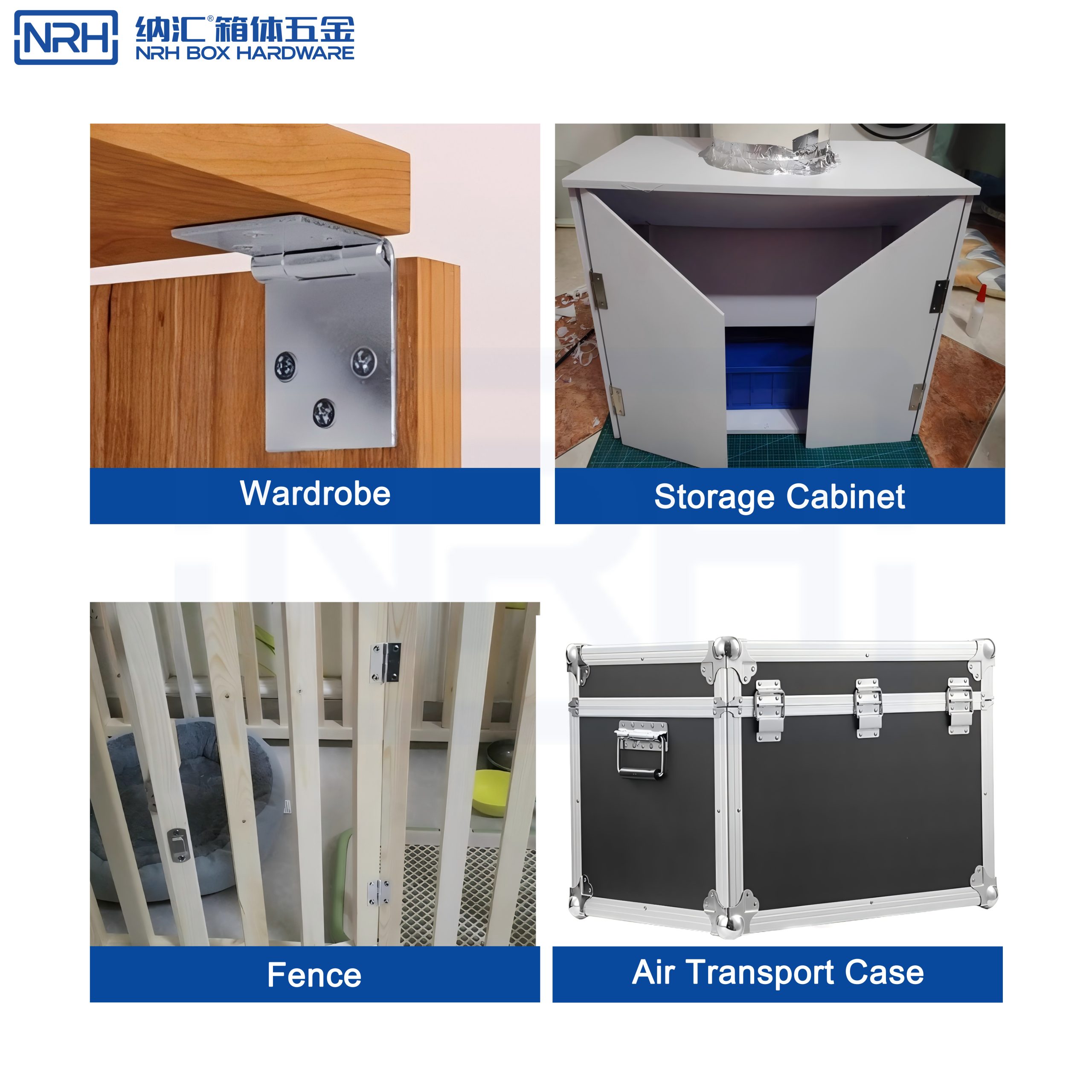

Primary Applications

• Instrument and equipment cases: Housings for portable measurement devices, sensitive electronics, and field testing kits
• Electrical and control cabinets: Access doors and panels on modular enclosures, control panels, and server rack components
• Furniture and interior fixtures: Doors on high‑quality cabinets, display cases, and technical furniture requiring a sleek look
• General industrial use: Light‑duty doors and lids on various industrial boxes and housings

How It Works - Pivot Mechanism

This is a standard butt hinge operating on a reliable pivot mechanism. It consists of two interlocking leaves joined by a central pin. One leaf mounts to the moving component (door or lid), the other to the fixed frame. The pin allows for a smooth and stable rotational movement, enabling reliable opening and closing. The SUS 304 stainless steel construction ensures consistent performance and resistance to rust and tarnish.

Features & Specifications

• Corrosion‑resistant SUS 304: Excellent resistance to rust and tarnish, ensuring long service life
• Smooth vibratory finish: Uniform satin surface that is both aesthetically pleasing and functional
• Reliable load capacity: Rated for 147N (15kg) bearing load for light to medium‑duty applications
• Lightweight and durable: Only 18g, minimizing added weight without sacrificing strength
• Secure mounting: 4x Ø4.5mm mounting holes for straightforward and stable installation

Technical Specifications

。。。。。。。。。

Why Trust NRH

NRH Box Hardware has been producing industrial hinges and hardware since 1996. The NRH 8403-50 is made under an ISO 9001:2000 certified system. Compliance with SGS, REACH, or RoHS is available upon request - please inquire for feasibility and pricing. Our long‑standing expertise in stainless steel hardware ensures a reliable product for critical applications.
