NRH 8403-65 Stainless Steel Butt Hinge | SUS 304 for Cabinet & Furniture

NRH 8403-65 Stainless Steel Butt Hinge - SUS 304, Vibratory Finish, Compact Design

The NRH 8403-65 is a compact and reliable stainless steel butt hinge designed for applications requiring a balance of strength, corrosion resistance, and a clean aesthetic. Manufactured from SUS 304 stainless steel with a smooth vibratory finishing, this hinge delivers excellent durability and easy maintenance. Weighing only 24g with a 98N (10kg) bearing load, it is perfectly suited for lightweight to medium‑duty applications such as kitchen cabinets, instrument cases, and light industrial enclosures.

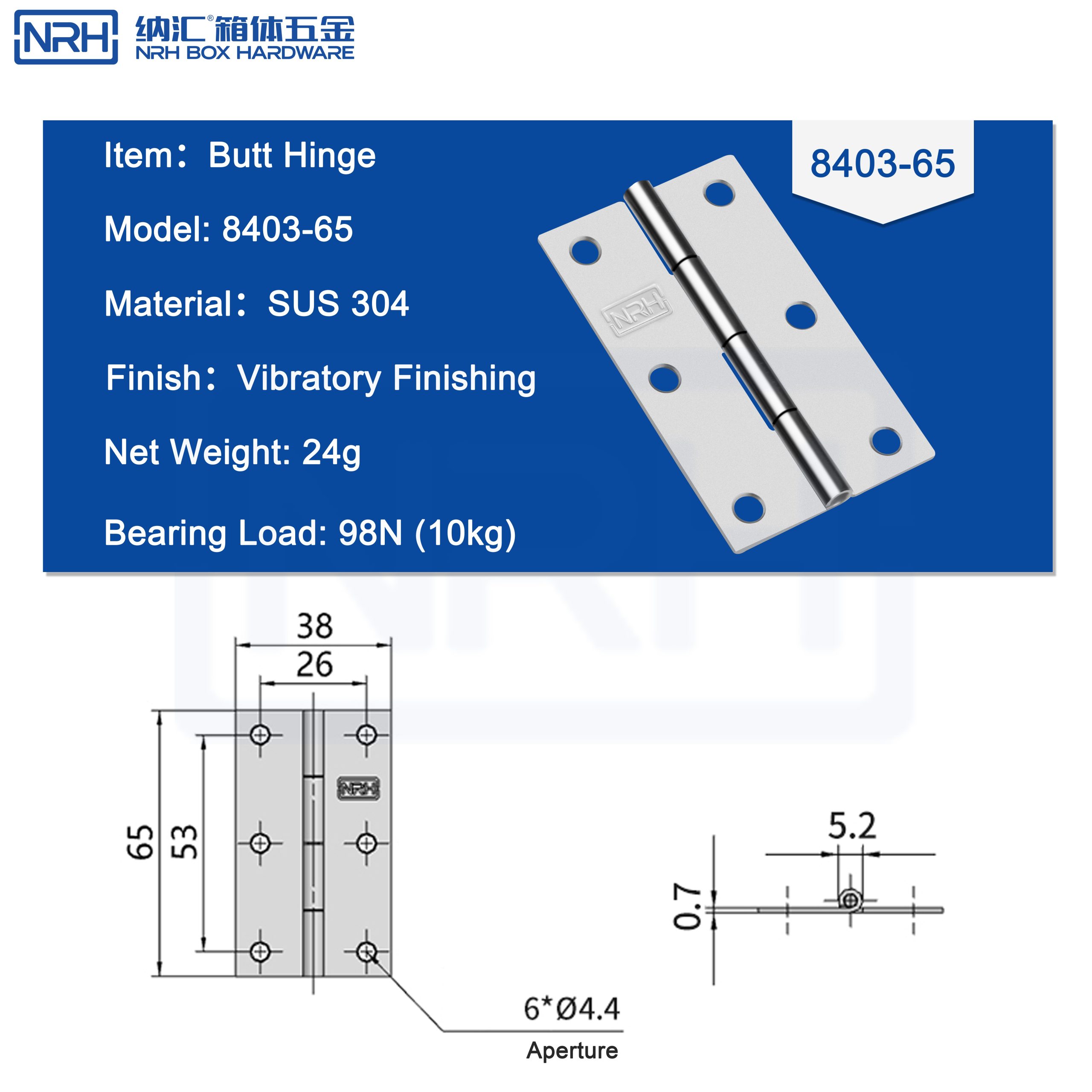

The hinge provides smooth and dependable pivoting action for doors and panels. Key dimensions include a total height of 65mm, hinge height of 53mm, width of 26mm, total length of 38mm, and pin diameter of Ø5.2mm, with 6x Ø4.4mm through‑holes for stable installation.

The NRH 8403-65 is manufactured by NRH Box Hardware, a brand since 1996, embodying quality and reliability. We offer flexible OEM and ODM services to meet your specific design requirements.

Primary Applications

• Home and furniture: Kitchen cabinet doors, furniture doors, small storage boxes, and decorative indoor items
• Instrument and electronics cases: Enclosures for portable devices, light testing equipment, or sensitive instrument cases
• Commercial displays and fixtures: Doors on retail display cabinets, light‑duty office furniture, or informational kiosks
• General light‑duty enclosures: Access panels on electrical boxes, network enclosures, or control panel windows

How It Works - Pivot Mechanism

As a standard butt hinge, it operates on a simple pivot mechanism. It consists of two interlocking metal leaves joined by a central pin. One leaf mounts to the moving door or lid, the other to the fixed frame. The pin allows for a smooth rotational movement, enabling the door to swing open and closed reliably. The SUS 304 construction ensures this movement remains consistent and resistant to corrosion.

Features & Specifications

• Corrosion‑resistant SUS 304: Provides good durability and resistance to rust in various environments
• Smooth vibratory finish: Offers a uniform, satin‑like surface that is aesthetically pleasing and functional
• Lightweight and functional: Engineered for reliable performance without adding significant weight
• Secure mounting: Features 6x Ø4.4mm through‑holes for stable and straightforward installation

Technical Specifications

。。。。。。。。。

Why Trust NRH

NRH Box Hardware has been producing industrial hinges and hardware since 1996. The NRH 8403-65 is made under a robust quality management system. Our long‑standing expertise in stainless steel hardware ensures a reliable product for your applications.
