NRH 4101-132 Chrome Spring Flush Pull – 60kg Auto Retract Heavy Duty

NRH 4101-132 Chrome Spring Flush Pull - 60kg Load, Auto Retract, Heavy-Duty Flush Mount

The biggest annoyance with fixed handles? They stick out - snagging clothes, bumping into people, and ruining stacked flight cases. The NRH 4101-132 solves this with a spring-loaded mechanism that automatically retracts the handle flush with the panel. Need to open a door? Hook your fingers (even with gloves) and pull - the handle extends with a smooth motion. Release it, and the spring pulls it back, completely invisible. Built from carbon steel with a bright chrome finish, it resists sweat, oil, and mild corrosion while looking professional. Rated for 60kg pull load at just 225g, it handles heavy cabinet doors, flight cases, and power distribution panels with ease.

Manufactured under ISO 9001, with REACH/RoHS compliance available on request. OEM/ODM modifications (hole patterns, brushed finish) are supported. 2D/3D drawings available.

Key cut-out dimensions: overall length ~132.5mm, body width ~74mm, 4 mounting holes. Reference locating dimensions: 117mm, 100mm, 80.5mm, 69mm - see drawing for exact geometry.

Why Spring-Loaded Flush Design?

Protruding handles get damaged during transit and damage other things around them. A flush‑mount, auto‑retracting handle eliminates these risks entirely. It's perfect for stacked road cases, tight network racks, and any equipment that moves frequently. The spring also ensures you never forget to push the handle back - it does it for you, keeping the equipment's surface clean and hazard‑free.

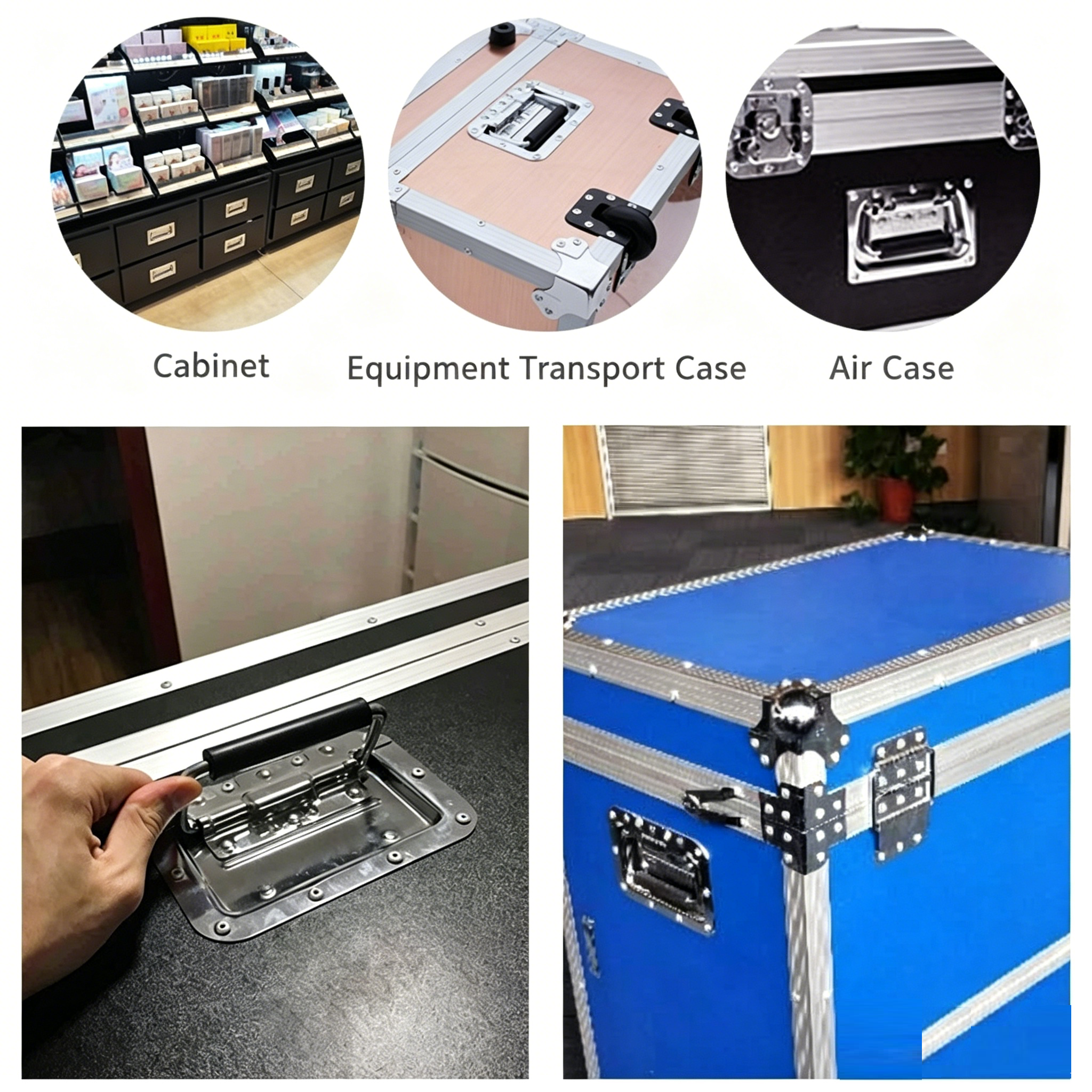

Real‑World Use Cases - Where “Disappearing” Matters

• Flight cases & ATA road cases - stack without handle interference, no crushed neighbors
• Data center server racks - maintenance staff won't catch clothing in narrow aisles
• Outdoor power distribution cabinets - chrome resists salt spray, spring works in cold
• Police/military vehicle equipment boxes - no rattling or accidental pop‑outs during transit
• Laboratory analytical instruments - chrome surface easy to disinfect, no crevices
• Factory assembly line workstations - frequently opened drawers, handle retracts automatically

Mechanism - Simple Spring, Decades of Reliability

The handle comprises only a base, a pivoting grip, and a single compression spring. The spring holds the grip recessed by default. Pulling overcomes the spring force, extending the grip; releasing allows the spring to snap it back flush. No complex cams or linkages - fewer failure points. Installation requires cutting a matching hole in the panel and securing the base with screws from the rear. Simple enough for any maintenance technician.

Key Differentiators

• 60kg rated load - lab tested, no exaggeration
• 30mm+ finger clearance when extended - works with heavy gloves
• Chrome thickness ≥8μm - 48h salt spray, no red rust
• 50,000 cycle spring - 10+ years of normal use
• -20°C low‑temperature operation - suitable for outdoor northern installations
• Standard cut‑out compatible - no special tooling required
• Consistent stamping - OEM batches dimensionally stable

Technical Specifications

• Brand/Model: NRH 4101-132
• Material: Carbon Steel
• Finish: Chrome Plating
• Weight: 225g
• Rated Pull Load: 60kg
• Spring Type: Compression, auto‑retract
• Mounting: Flush, 4‑hole rear screw fixing
• Approx. Dimensions: Length 132.5mm × Width 74mm
• Compliance: ISO 9001 / REACH / RoHS (available on request)
• Note: Drawings for reference only. NRH manufacturing since 1996. OEM/ODM welcome.

Why NRH Stands Out

Not every spring flush pull can endure thousands of heavy cycles without losing retraction force. NRH 4101-132 has been verified by major telecom, military, and staging equipment users. Its chrome adhesion and spring linearity exceed typical industry standards. If you need a heavy‑duty, self‑retracting handle that truly disappears when not in use, this is the field‑proven choice.
