NRH 4101-110 Stainless Steel Flush Pull – SUS304 Gloss 45kg Fixed No Spring

NRH 4101-110 Stainless Steel Flush Pull - SUS304 Gloss Finish, 45kg Load, Fixed Type, No Spring

For medical equipment, food processing machinery, or marine enclosures where corrosion resistance and hygiene are critical, the NRH 4101-110 offers a premium solution. Made entirely from SUS304 stainless steel with a mirror‑like gloss finish, it provides outstanding rust and chemical resistance. Each handle supports 45kg of pull load while weighing only 127g - lightweight yet strong. The flush‑mount fixed design (no spring) allows the handle to be pulled out for use and manually pushed back flush, reducing protrusion and eliminating moving parts. Ideal for control cabinets, medical carts, lab equipment, and outdoor enclosures. NRH branding and heritage since 1996 guarantee consistent quality.

All NRH handles are produced under ISO 9001. REACH, RoHS, SVHC compliance available upon request. OEM/ODM modifications (brushed finish, mounting hole pattern) are welcome. 2D/3D CAD files supplied free.

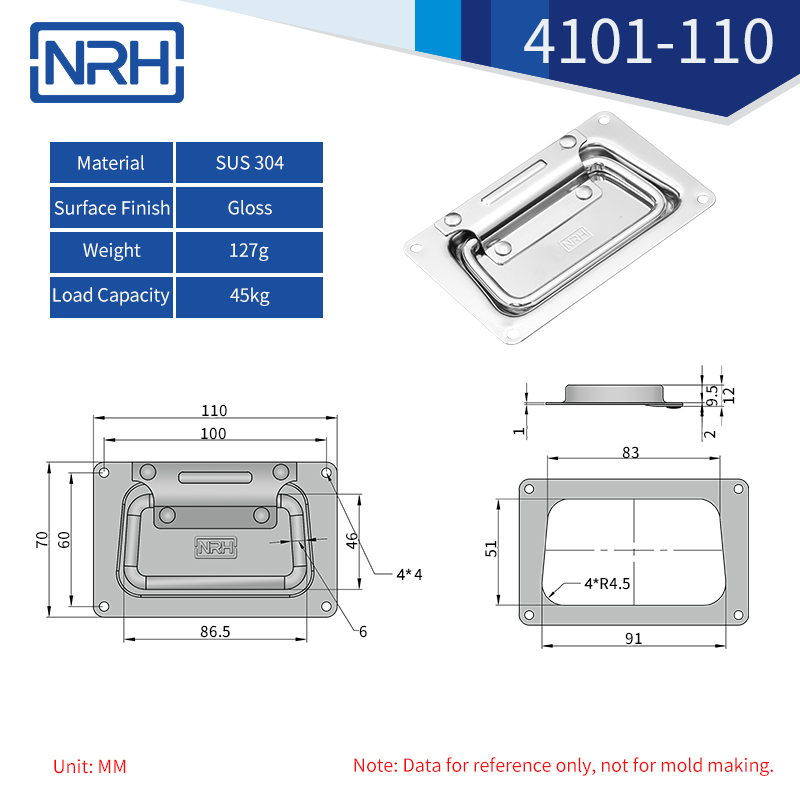

Key dimensions (see drawing): overall length 110mm, width 70mm; 4×Φ4mm mounting holes; R4.5 radius cutouts; additional reference dimensions 100mm, 86.5mm, 91mm. Cut panel precisely per drawing.

Why SUS304 Gloss Finish - Corrosion Resistant, Hygienic, Elegant

SUS304 stainless steel is solid - no plating to chip or peel. The gloss polish creates an ultra‑smooth surface that repels dirt and wipes clean easily, essential for hygienic environments. The fixed design (no spring) means fewer failure points, lower maintenance, and long service life.

Applications - Premium Environments

• Medical carts & operating room equipment - non‑porous, easy to disinfect
• Food processing equipment control cabinets - gloss surface resists acidic cleaners
• Laboratory fume hoods & biosafety cabinets - easy to clean, no crevices
• Marine instrument enclosures - salt spray resistant, gloss sheds deposits
• High‑end outdoor telecom cabinets - mirror finish enhances aesthetics
• Pharmaceutical production panels - meets GMP cleanability requirements
• High‑end commercial kitchen equipment - matches stainless steel cabinetry

How It Works - Fixed Flush Pull

The handle consists of a base and a pivoting grip (no spring). The grip normally sits within the panel cutout. To use, pull the grip outward; it pivots to provide a handhold. After use, push the grip back manually to return it flush. Installation requires cutting a matching hole (refer to drawing) and securing the base with screws through the 4×Φ4mm holes. Simple, reliable, maintenance‑free.

Key Advantages

• SUS304 stainless steel - fully rust‑proof, no coating to fail
• Mirror gloss finish - easy to clean, elegant, corrosion resistant
• 45kg pull strength - strong enough for heavy doors and lids
• Fixed design - no spring - fewer failure points, longer life
• Flush mounting - reduces protrusion, allows stacking
• Ultra‑compact & lightweight - only 127g
• OEM/ODM ready - custom brushed finish, sizes, hole patterns

Technical Specifications

• Brand: NRH Box Hardware
• Model: 4101-110 (Stainless Steel Flush Pull, No Spring)
• Material: SUS304 Stainless Steel
• Finish: Gloss (Mirror Polish)
• Net Weight: 127g
• Load Capacity: 45kg
• Spring Mechanism: No
• Mounting Type: Flush / Recessed, rear screw fixing
• Key Dimensions: Overall length 110mm, width 70mm; 4×Φ4mm mounting holes; R4.5 radius; see drawing for full details
• Compliance: ISO 9001, REACH, RoHS, SVHC (available upon request)
• Note: Data for reference only. Manufacturer since 1996. OEM/ODM ready. 2D/3D CAD on request.

Why Trust NRH

Since 1996, NRH Box Hardware has specialized in stainless steel enclosure accessories. The 4101-110 gloss stainless steel flush pull is made from genuine SUS304, polished to a mirror finish. If you need a corrosion‑proof, easy‑to‑clean, and elegant handle for medical, food, or marine environments, this is the proven choice.
