NRH 4101-110 Flush Pull Handle – Chrome Carbon Steel 45kg Fixed No Spring

NRH 4101-110 Flush Pull Handle - Chrome Plated Carbon Steel, 45kg Load, Fixed Type, No Spring

For industrial cabinets, electrical panels, and toolboxes that need a reliable grip without automatic retraction, the NRH 4101-110 offers a simple, cost‑effective solution. Made from carbon steel with a bright chrome plating, it provides strength and basic corrosion resistance. Each handle supports 45kg of pull load while weighing only 112g - lightweight yet tough. The flush design minimizes protrusion when not in use (though the handle does not self‑retract; it can be manually pushed back). Ideal for control cabinets, mobile toolboxes, and equipment panels. NRH branding and heritage since 1996 guarantee consistent quality.

All NRH handles are produced under ISO 9001. REACH, RoHS compliance available upon request. OEM/ODM modifications (finish, mounting hole pattern) are welcome. 2D/3D CAD files supplied free.

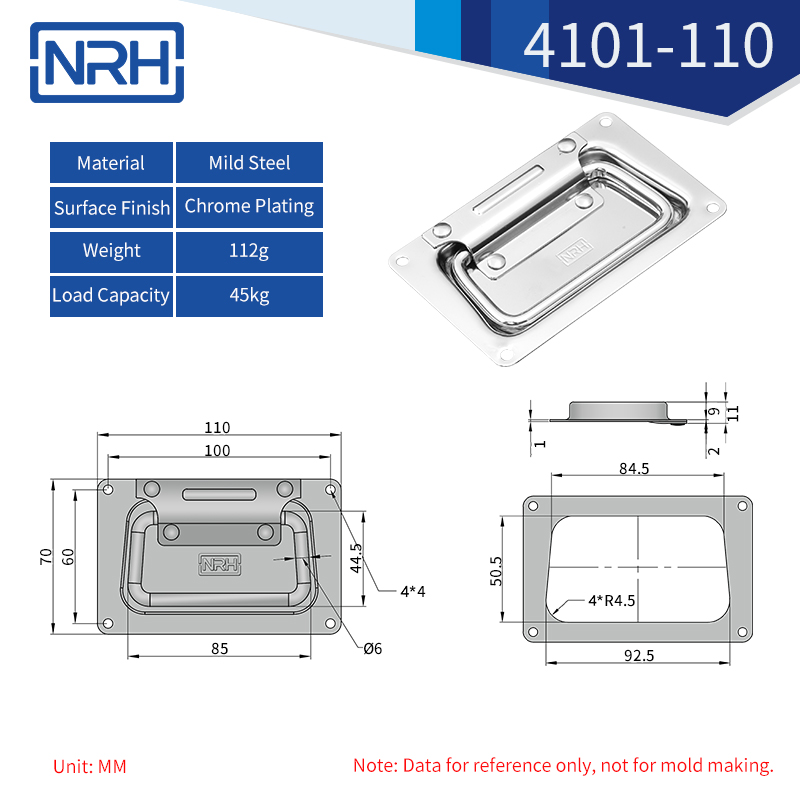

Key dimensions (see drawing): overall length 110mm, width 70mm; 4×Φ4mm mounting holes; R4.5 radius cutouts; additional reference dimensions 100mm, 84.5mm, 85mm, 92.5mm. Cut panel precisely per drawing.

Fixed Flush Pull Design - Reliable, Simple, Low Cost

Unlike spring‑loaded handles, the NRH 4101-110 has no internal spring - no moving parts to wear out. This reduces cost and increases reliability. The handle can be pulled outward for a secure grip; after use, it must be manually pushed back flush with the panel. Ideal for applications where automatic retraction is not required.

Applications - From Factory Floor to Logistics

• Industrial control cabinets & electrical panels - provides a sturdy grip for opening doors
• Mobile toolboxes & equipment cases - flush design reduces snagging
• Laboratory instrument panels - keeps panel surface tidy
• Server racks & telecom cabinets - space‑saving
• Outdoor generator enclosures - chrome resists mild moisture
• Flight cases & ATA road cases - can be manually pushed flat for stacking
• Medical cart drawers - provides a reliable pull point

How It Works - Fixed Flush Pull

The handle consists of a base and a pivoting grip (no spring). The grip normally sits within the panel cutout. To use, pull the grip outward; it pivots to provide a handhold. After use, push the grip back manually to return it flush. Installation requires cutting a matching hole (refer to drawing) and securing the base with screws through the 4×Φ4mm holes. Simple and maintenance‑free.

Key Advantages

• Fixed design - no spring - fewer failure points, longer life
• 45kg pull strength - strong enough for heavy doors and lids
• Carbon steel + chrome plating - strength, basic rust resistance, cost‑effective
• Ultra‑compact & lightweight - only 112g
• Flush mounting - reduces protrusion, allows stacking
• Easy installation - standard cut‑out, rear‑mount screws
• OEM/ODM ready - custom finishes, sizes

Technical Specifications

• Brand: NRH Box Hardware
• Model: 4101-110 (Flush Pull Handle, No Spring)
• Material: Carbon Steel
• Finish: Chrome Plating
• Net Weight: 112g
• Load Capacity: 45kg
• Spring Mechanism: No
• Mounting Type: Flush / Recessed, rear screw fixing
• Key Dimensions: Overall length 110mm, width 70mm; 4×Φ4mm mounting holes; R4.5 radius; see drawing for full details
• Compliance: ISO 9001, REACH, RoHS (available upon request)
• Note: Data for reference only. Manufacturer since 1996. OEM/ODM ready. 2D/3D CAD on request.

Why Trust NRH

Since 1996, NRH Box Hardware has specialized in industrial enclosure accessories. The 4101-110 flush pull is a value‑engineered, spring‑free solution - strong, simple, and economical. If you need a reliable, fixed flush handle for cabinets, toolboxes, or transit cases, this is the proven choice.
