NRH 4101-110-1 Stainless Steel Spring Flush Pull SUS304 Gloss Finish 45kg Auto Retract

NRH 4101-110-1 Stainless Steel Spring Flush Pull - SUS304 Gloss Finish, 45kg Load, Auto Retract, Hygienic

In food processing, medical equipment, or marine environments, ordinary chrome plated handles fall short. The NRH 4101-110-1 is machined from SUS304 stainless steel with a mirror‑like gloss finish. It offers superior corrosion resistance - no plating to chip or peel - and a sleek appearance that's easy to clean. The internal spring automatically retracts the handle flush with the panel when released, eliminating snag hazards and saving space. Each handle supports 45kg of pull load while weighing just 133g - lightweight yet tough. With no sharp edges and all‑stainless construction, it's ideal for frequent washdown and sanitization. NRH branding and heritage since 1996 guarantee consistent quality.

All NRH handles are produced under ISO 9001. REACH, RoHS, SVHC compliance available upon request. OEM/ODM modifications (brushed finish, hole pattern, spring tension) are welcome. 2D/3D CAD files supplied free.

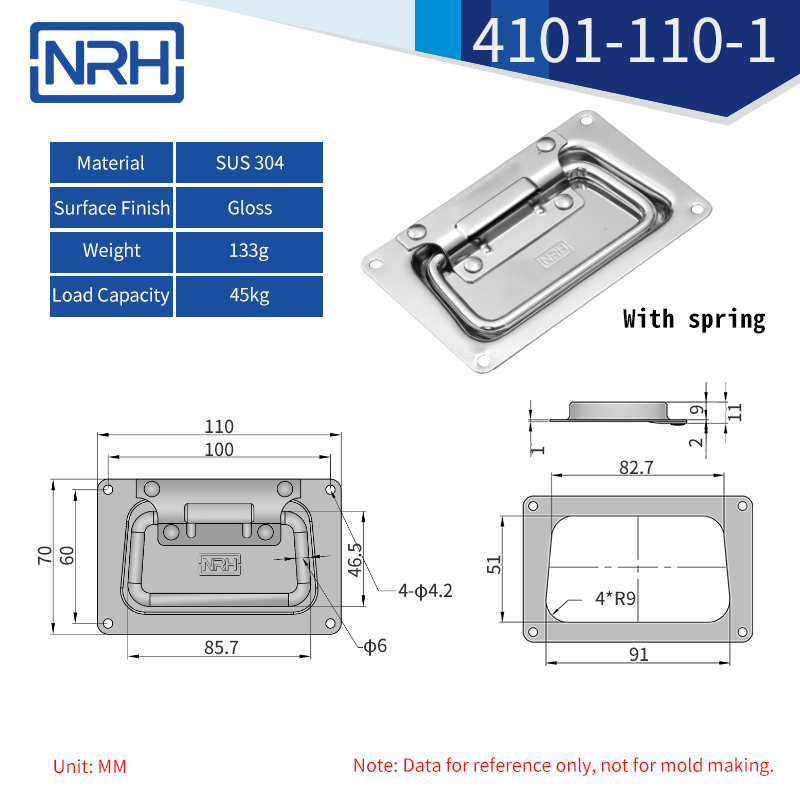

Key dimensions (see drawing): overall length 110mm, width 70mm; 4×Φ4.2mm mounting holes; R9 radius cutouts; additional reference dimensions 100mm, 82.7mm, 85.7mm. Cut panel precisely per drawing.

Why SUS304 Gloss Finish Outperforms Chrome Plating?

Chrome plated mild steel rusts once the coating is scratched. SUS304 stainless steel is solid - corrosion resistance is intrinsic, not just a surface layer. The high gloss polish creates an ultra‑smooth surface that repels dirt and wipes clean easily, essential for hygienic environments. The internal spring is also stainless steel, ensuring no rust‑induced failure over time. For medical, food, and pharmaceutical applications, this is the required standard.

Applications - Where Cleanliness and Durability Meet

• Food processing equipment control cabinets - gloss surface resists acidic cleaners
• Medical carts & operating room equipment - non‑porous, easy to disinfect
• Marine instrument enclosures - salt spray resistant, gloss sheds salt deposits
• Laboratory fume hoods & biosafety cabinets - flush design eliminates contamination traps
• Outdoor telecom cabinets (coastal areas) - mirror finish enhances aesthetics, resists humidity
• Pharmaceutical production panels - meets GMP cleanability requirements
• High‑end commercial kitchen equipment - matches stainless steel cabinetry

How It Works - Pull, Release, Flush

The handle consists of a fixed base, a movable grip, and a stainless steel spring. The spring keeps the grip recessed. Pull outward to extend the grip for a comfortable hold; release, and the spring pulls it back flush with the panel. No protrusions, no snags. Installation requires cutting a matching shaped hole (refer to drawing) and securing the base with M4 screws through the 4×Φ4.2mm holes.

Key Advantages

• Solid SUS304 stainless steel - fully rust‑proof, no coating to fail
• Mirror gloss finish - easy to clean, elegant, corrosion resistant
• Spring‑loaded auto‑retract - sits flush when not in use, eliminates protrusions
• 45kg pull strength - strong enough for heavy doors and lids
• Stainless steel spring - long‑lasting retraction, no rust jamming
• Precision cut‑out design - multiple locating dimensions for secure fit
• OEM/ODM ready - custom brushed finish, sizes, spring rates

Technical Specifications

• Brand: NRH Box Hardware
• Model: 4101-110-1 (Stainless Steel Spring Flush Pull)
• Material: SUS304 Stainless Steel
• Finish: Gloss (Mirror Polish)
• Net Weight: 133g
• Load Capacity: 45kg
• Spring Mechanism: Yes (stainless steel spring)
• Mounting Type: Flush / Recessed, rear screw fixing
• Key Dimensions: Overall length 110mm, width 70mm; 4×Φ4.2mm mounting holes; R9 radius; see drawing for full details
• Compliance: ISO 9001, REACH, RoHS, SVHC (available upon request)
• Note: Data for reference only. Manufacturer since 1996. OEM/ODM ready. 2D/3D CAD on request.

Why Trust NRH

Since 1996, NRH has specialized in stainless steel hardware for critical environments. The 4101-110-1 gloss spring flush pull is made from genuine SUS304, polished to a mirror finish, and tested for thousands of cycles. If you need a handle that withstands moisture, chemicals, and frequent sanitization while looking premium, this is the proven choice.
