NRH 4405-180 PVC Swivel Carry Handle – 20kg Black Foldable for Cases

NRH 4405-180 PVC Swivel Carry Handle - Black, Foldable, 20kg Load, Lightweight for Briefcases & Cases

For lightweight portable cases - document cases, sample boxes, small instrument cases - a heavy handle defeats the purpose. The NRH 4405-180 is molded from PVC engineering plastic with a matte black finish. It offers flexibility, impact resistance, and weighs just 108g - lighter than ABS alternatives. The handle rotates 180°, lying flat when not in use for stackable storage, and flipping up when needed for carrying. Rated for 20kg load, it's perfect for briefcases, lightweight toolboxes, pharmaceutical sample cases, and more. Four standard mounting holes (4×Φ4mm) fit common case cutouts. A cost‑effective, practical solution.

Manufactured under ISO 9001. REACH, RoHS compliance available on request. OEM/ODM modifications (color, logo) welcome. 2D/3D CAD drawings supplied.

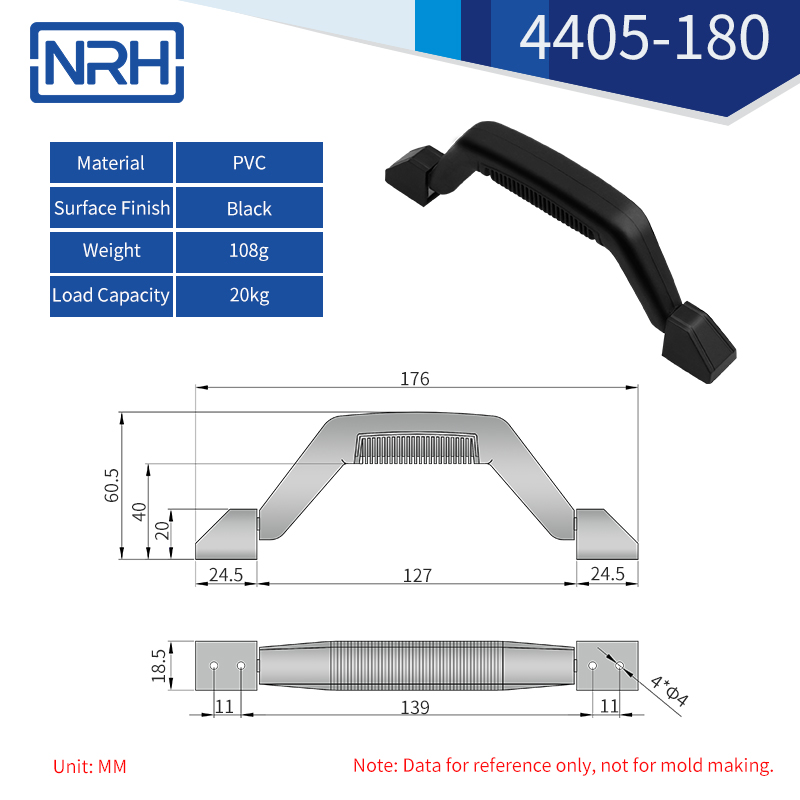

Key dimensions (see drawing): overall length 176mm, mounting distance 127mm, 4×Φ4mm mounting holes, body width 40mm, thickness 20mm. Additional reference dimensions: 60.5mm, 24.5mm, 18.5mm, 11mm, 139mm. Follow drawing for precise cutout.

PVC Material: Lightweight, Flexible, Economical

Compared to ABS, PVC offers better flexibility - it resists cracking under impact - and lower cost. The matte black finish resists scratches and reduces glare. The pivot uses metal bushings, tested for thousands of cycles - smooth, no sticking. When flipped up, the handle stays in position by your grip; there is no mechanical lock, which simplifies the design and reduces failure points.

Applications - Ideal for Lightweight Portable Cases

• Business briefcases / document cases - lightweight, comfortable for daily commute
• Small instrument / meter cases - 20kg capacity sufficient, protects delicate equipment
• Sample display / presentation cases - frequent handling, durable and light
• Lightweight toolboxes / parts bins - easy to carry, no added bulk
• Pharmaceutical transport cases / medical sample cases - lightweight for delivery
• Photography accessory cases - comfortable grip for lenses and accessories
• Children's toy storage boxes - safe, lightweight, easy for small hands

How It Works - Simple Pivot, No Complex Parts

Metal bushings at each end connect the handle to the base. The handle rotates approximately 180°. When not in use, it lies flat. To carry, flip it up - it stays in position while gripped, but there is no latch. The base mounts with four countersunk screws.

Key Advantages

• 20kg rated load - suitable for everyday lightweight cases
• PVC engineering plastic - flexible, impact‑resistant, lightweight, cost‑effective
• 180° swivel, folds flat - stacks neatly, no protrusions
• Matte black finish - scratch‑resistant, non‑reflective
• Standard mounting holes - 4×Φ4mm, fits common patterns
• Ultra‑lightweight (108g) - adds minimal travel weight
• OEM ready - custom colors, logo printing available

Technical Specifications

• Brand/Model: NRH 4405-180
• Material: PVC Engineering Plastic
• Finish: Matte Black
• Weight: 108g
• Load Capacity: 20kg
• Swivel Angle: Approx. 180° (flat ↔ flipped up)
• Mounting: 4×Φ4mm countersunk holes
• Approx. Dimensions: Overall length 176mm, mounting distance 127mm, width 40mm, thickness 20mm
• Compliance: ISO 9001 / REACH / RoHS (on request)
• Note: Drawings for reference. NRH manufacturing since 1996. OEM/ODM welcome.

Why Lightweight Case Makers Choose NRH PVC Swivel Handles

The NRH 4405-180 is designed for weight‑sensitive and cost‑sensitive portable cases. PVC delivers adequate strength at a lower price point. If you need a lightweight, foldable, economical carry handle for briefcases, sample boxes, or small tool cases, this is the proven choice.
