Chrome Plated Flat Corner Protector 40mm 3 Holes

Chrome Plated Flat Corner Protector for Cases - 40mm 3 Holes

Applicable Buyers

• Flight case and ATA case manufacturers
• Tool box and equipment case builders
• Military and defense case suppliers
• Wooden box and export packaging manufacturers
• Instrument and equipment case producers

What Makes This Flat Corner Protector Different

Chrome Plated Mild Steel - Cost-Effective Corrosion Protection

The 7201-40-2-FE-CR is constructed from mild steel with a chrome plated finish. Chrome plating provides a bright, corrosion-resistant surface that protects the steel from rust and wear. This finish offers excellent durability for standard applications while remaining cost-effective compared to stainless steel alternatives. The chrome plating also provides a smooth, glossy appearance that enhances the professional look of any case.

Raised Dot Surface Detail - Distinctive Design

This model features a single raised dot on one face - a subtle design detail that distinguishes it from the 7201-40-1 (which has a dimple on one face). The other two faces remain smooth. Both models share identical dimensions, thickness, weight, and hole configuration. The choice between the two comes down to the surface detail that best complements your case design.

40mm Face Length - Extended Coverage

At 40mm face length, this corner provides more surface coverage than standard 35mm models. The larger footprint distributes stress across a wider area, making it ideal for larger cases and applications requiring additional reinforcement.

3-Hole Fixation

Three mounting holes (Ø4mm) deliver secure fixation with minimal installation effort. Compatible with rivets, self-tapping screws, or spot welding.

Flat Corner vs. Spherical Corner: Which One Do You Need?

When to Choose This Chrome Plated Flat Corner

You need case reinforcement at a cost-effective price. Chrome plated mild steel offers excellent corrosion protection at a lower cost than stainless steel. Choose this for standard applications where budget is a consideration.

You prefer a raised dot detail. The single raised dot on one face adds a tactile element while keeping the overall profile flat. If you prefer a recessed detail, consider the 7201-40-1.

You need a larger corner for bigger cases. At 40mm face length, this corner provides extended coverage for larger cases and applications requiring additional reinforcement.

You want a bright, professional appearance. The chrome plating provides a glossy, mirror-like finish that looks professional on any case.

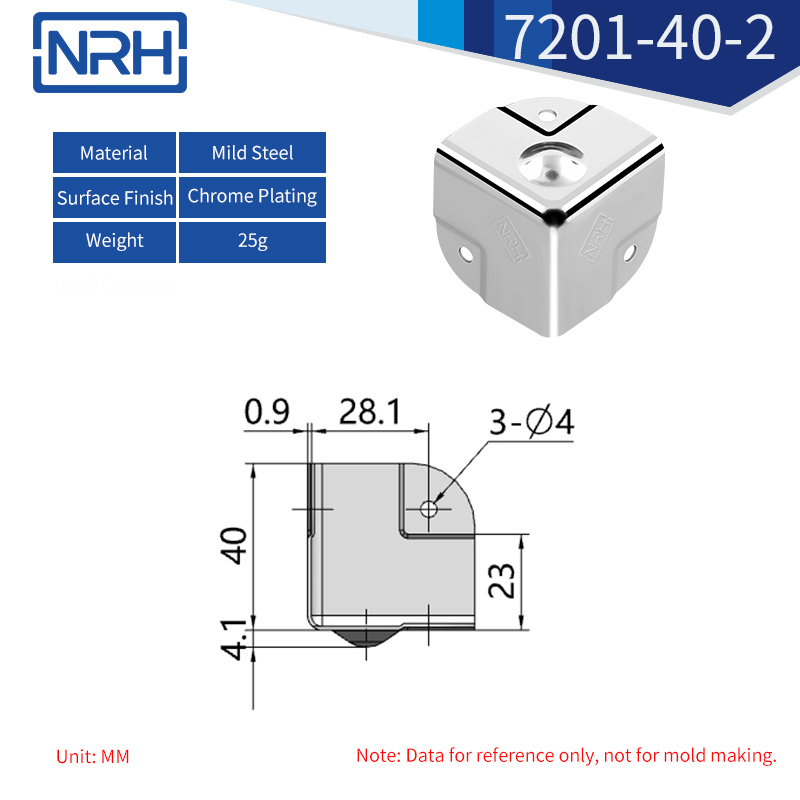

Technical Specifications

Data based on engineering drawing 7201-40-2-FE-CR. For reference only - not for mold making.

Applications

Installation & Maintenance

Installation:

• Position the corner against the case edge
• Mark hole positions using the 3 holes as a guide
• Pre-drill with a 3.5mm bit
• Secure with rivets, self-tapping screws, or spot welding

Maintenance & Storage:

• Wipe with a soft cloth and mild detergent
• Do not use thinners, strong acids, or strong alkalis - these damage the plating
• Store in dry, ventilated areas - avoid prolonged damp conditions
• For welding operations, use unplated blanks to avoid heat damage

Proven in the Field

NRH chrome plated flat corners are used by case manufacturers across North America, Europe, and Asia. Applications range from military storage boxes and medical equipment transport cases to industrial tool boxes and export wooden crates.

Common applications include:

• Flight cases for professional audio and lighting equipment
• Tool boxes for workshops and job sites
• Military storage and transport cases
• Wooden export crates and packaging boxes
• Instrument cases for music and measurement equipment

About NRH

NRH started manufacturing case hardware in 1996, with over 25 years of brand history.

Four product lines: latches, handles, hinges, and corner protectors. Over 3,000 product variations. OEM/ODM supported.

Certifications:

• National High-Tech Enterprise (2023)
• ISO 9001 Quality Management (2018)

Five production and distribution centers: Shanghai HQ, plus Beijing, Guangzhou, Zhengzhou, and Chongqing.

In Stock - No Minimum Order

No 500-piece minimum. No 100-piece minimum. Order 1 piece and we ship.

First-time buyers often need to test fit before committing. Order a few samples. Test them on your cases. Verify dimensions, finish, and installation. When you're satisfied, order production quantities.

Same-day dispatch on payment confirmation.

Key Takeaways

• 40mm face length - extended coverage for larger cases
• Chrome plated mild steel - cost-effective corrosion protection
• Raised dot on one face - distinctive surface detail
• 3-hole fixation - simple, secure, and quick to install
• 0.9mm thickness - lightweight yet durable
• 25g weight - balanced strength and weight
• Compatible with rivets, self-tapping screws, or spot welding
• In stock - no minimum order, samples ship same day
• Customizable in stainless steel and alternative finishes upon request
• NRH manufacturing case hardware since 1996 - ISO 9001 certified
