Rounded Corner Protector 41.5mm Chrome Plated 3 Holes

Rounded Corner Protector for Cases - 41.5mm Chrome Plated 3 Holes

What Makes This Rounded Corner Protector Different

R15 Rounded Profile - Smooth, Snag-Free Protection

The 7505-40-FE-CR features a distinctive R15 rounded profile that eliminates sharp edges and corners. This design prevents snagging on equipment, clothing, and surrounding items during transport and handling. The smooth radius also reduces stress concentration points that can lead to cracking - making it ideal for cases that require both protection and a refined appearance.

41.5mm Side Length - Full Coverage for Standard Panels

With 41.5mm side length, this corner provides comprehensive coverage for standard case panels. The generous dimensions ensure that edges are fully protected without exposed gaps, while the rounded profile creates a clean, professional finish.

Lightweight 0.9mm Steel - 21g

At 0.9mm thickness and 21g weight, this corner offers reliable steel protection without adding unnecessary bulk. The 0.9mm steel provides better impact resistance than 0.5mm options while remaining lighter than 1.2mm+ alternatives - the ideal balance for most standard applications.

Chrome Plated Finish

The chrome plating provides corrosion resistance, surface hardness, and a bright, professional appearance that enhances the look of any case. The smooth chrome surface is also easy to clean and maintain.

3-Hole Fixation System

Three mounting holes (Ø4.5mm) deliver secure fixation with minimal installation effort. Compatible with small rivets, self-tapping screws, or spot welding.

Rounded Corner vs. Sharp Corner: Which One Do You Need?

When to Choose This Rounded Corner Protector

You need smooth, snag-free edges. The R15 rounded profile eliminates sharp corners that catch on equipment, clothing, and surrounding items. Ideal for cases that move through tight spaces or near people.

You want a refined, professional appearance. Rounded corners provide a softer, more premium look than sharp corners - perfect for display cases, premium packaging, and equipment that clients see.

You need balanced protection. At 0.9mm thickness and 21g, this corner offers reliable steel protection without the weight of heavy-duty options. The ideal choice for most standard applications.

You're working with standard panels. The 41.5mm side length provides full coverage for standard case panels, ensuring complete edge protection with a clean rounded finish.

Technical Specifications

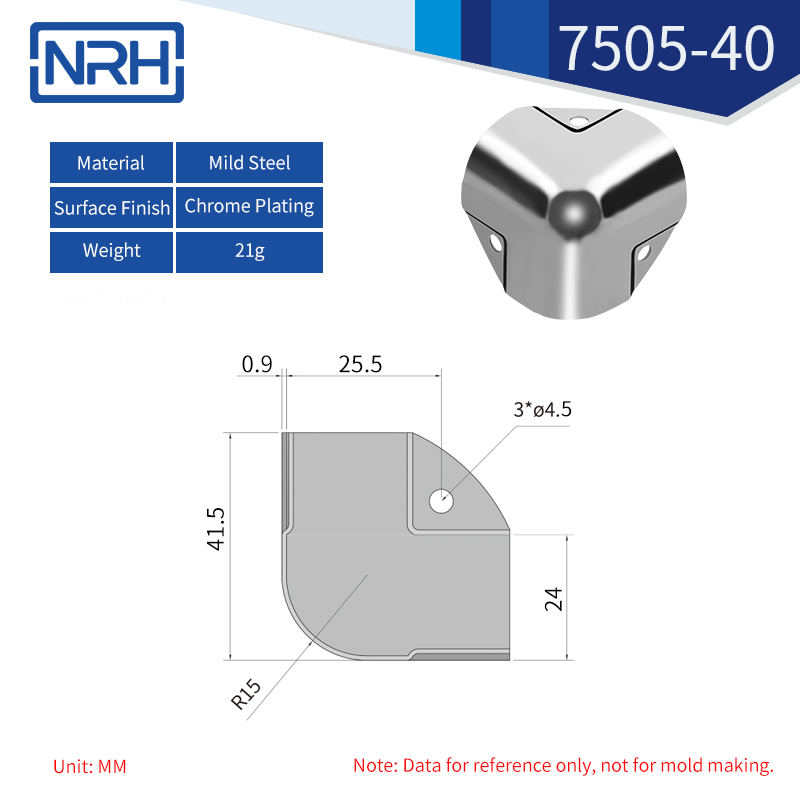

Data based on engineering drawing 7505-40-FE-CR. For reference only - not for mold making.

Applications

What Are You Using Now?

If you're currently using sharp corners or no corner protection, upgrading to rounded steel corners provides a professional finish while eliminating snagging and edge damage.

The bottom line: Rounded corners provide the professional finish that premium cases demand while eliminating the snagging and stress points of sharp corners. The 7505-40-FE-CR combines durability with refined aesthetics at a lightweight 21g.

Installation & Maintenance

Installation:

• Position the corner against the case edge
• Mark hole positions using the 3 holes as a guide
• Pre-drill with a 3.8mm bit (slightly smaller than 4.5mm for tight fit)
• Secure with small rivets, self-tapping screws, or spot welding

Maintenance & Storage:

• Wipe with a soft cloth and mild detergent
• Do not use thinners, strong acids, or strong alkalis - these damage the plating
• Store in dry, ventilated areas - avoid prolonged damp conditions

Proven in the Field

NRH rounded corners are trusted by manufacturers of premium display cases, medical equipment cases, and high-end packaging worldwide. The 7505-40-FE-CR combines the durability of steel with a smooth R15 rounded profile - making it the preferred choice for applications that require both protection and refined aesthetics.

Common applications include:

• Premium display and exhibition cases
• Medical and laboratory equipment cases
• High-end gift and product packaging
• Audio and visual equipment cases
• Instrument and measurement device cases
• Retail display boxes

About NRH

NRH started manufacturing case hardware in 1996, with over 25 years of brand history.

Four product lines: latches, handles, hinges, and corner protectors. Over 3,000 product variations. OEM/ODM supported.

Certifications:

• National High-Tech Enterprise (2023)
• ISO 9001 Quality Management (2018)

Five production and distribution centers: Shanghai HQ, plus Beijing, Guangzhou, Zhengzhou, and Chongqing.

In Stock - No Minimum Order

No 500-piece minimum. No 100-piece minimum. Order 1 piece and we ship.

First-time buyers often need to test fit before committing. Order a few samples. Test them on your cases. Verify dimensions, finish, and installation. When you're satisfied, order production quantities.

Same-day dispatch on payment confirmation.

Key Takeaways

• R15 rounded profile - smooth, snag-free edges, eliminates sharp corners
• 41.5mm side length - full coverage for standard case panels
• 0.9mm thickness - balanced protection at 21g
• Chrome plated finish - corrosion resistance and professional appearance
• 3-hole fixation with Ø4.5mm holes - compatible with standard fasteners
• Perfect for premium display cases, medical equipment, gift packaging, and equipment cases
• In stock - no minimum order, samples ship same day
• Customizable in stainless steel and alternative finishes upon request
• NRH manufacturing case hardware since 1996 - ISO 9001 certified
