Flat Corner Protector 35mm Raised Dot Chrome Plated

Flat Corner Protector for Flight Cases - Chrome Plated 35mm 3 Holes

Applicable Buyers

• Flight case and ATA case manufacturers
• Aluminum case and tool box builders
• Military and defense case suppliers
• Wooden box and export packaging manufacturers
• Instrument and equipment case producers

What Makes This Flat Corner Protector Different

Distinctive One-Face Surface Detail

The 7201-35-2 features a single raised dot on one face - a subtle design detail that distinguishes it from the 7201-35-1 (which has a dimple on one face). The other two faces remain smooth. Both models share identical dimensions, thickness, weight, and hole configuration. The choice between the two comes down to the surface detail that best complements your case design.

Equal Three-Face Construction

Both models feature equal three-face construction, meaning all three faces are identical in length. This provides balanced reinforcement across all sides of the case corner, ensuring consistent structural integrity.

3-Hole Fixation

Three mounting holes (Ø4mm) deliver secure fixation with minimal installation effort. The compact triangular hole pattern provides stable anchoring with just three fasteners - no over-engineering, just reliable connection. Compatible with rivets, self-tapping screws, or spot welding.

Flat Corner vs. Spherical Corner: Which One Do You Need?

When to Choose This Flat Corner

You need case reinforcement, not impact protection. Flat corners hold the case together, keeping joints tight and the structure rigid.

You want a clean, flush appearance. Flat corners sit flush with the case surface for a professional, finished look.

You prefer a subtle raised detail. The single raised dot on one face adds a tactile element while keeping the overall profile flat. If you prefer a recessed detail, consider 7201-35-1.

You need a cost-effective reinforcement solution. At 21g with chrome plating, this corner provides reliable reinforcement without adding significant weight or cost.

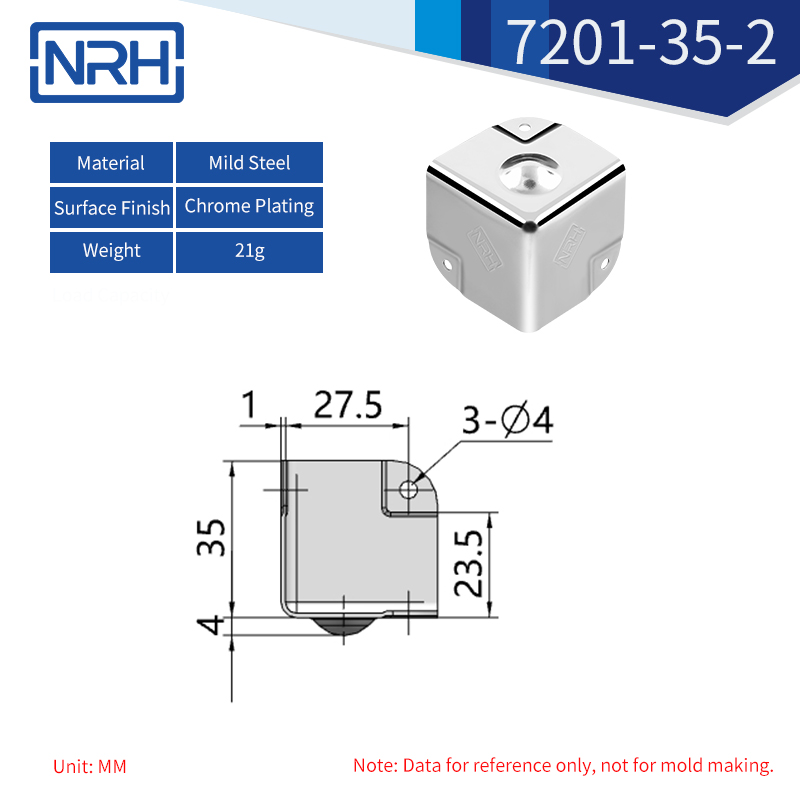

Technical Specifications

Data based on engineering drawing 7201-35-2-FE-CR. For reference only - not for mold making.

Application Guide

Proven in the Field

NRH flat corners are used by case manufacturers across North America, Europe, and Asia. Applications range from military storage boxes and medical equipment transport cases to industrial tool boxes and export wooden crates.

Common applications include:

• Flight cases for professional audio and lighting equipment
• Tool boxes for workshops and job sites
• Military storage and transport cases
• Wooden export crates and packaging boxes
• Medical equipment transport cases
• Instrument cases for music and measurement equipment

About NRH

NRH started manufacturing case hardware in 1996, with over 25 years of brand history.

Four product lines: latches, handles, hinges, and corner protectors. Over 3,000 product variations. OEM/ODM supported.

Certifications:

• National High-Tech Enterprise (2023)
• ISO 9001 Quality Management (2018)

Five production and distribution centers: Shanghai HQ, plus Beijing, Guangzhou, Zhengzhou, and Chongqing.

In Stock - No Minimum Order

No 500-piece minimum. No 100-piece minimum. Order 1 piece and we ship.

First-time buyers often need to test fit before committing. Order a few samples. Test them on your cases. Verify dimensions, finish, and installation. When you're satisfied, order production quantities.

Same-day dispatch on payment confirmation.

Key Takeaways

• 35mm equal three-face construction - balanced reinforcement across all sides
• Raised dot on one face (7201-35-2) vs. dimple on one face (7201-35-1) - the other two faces remain smooth
• 3-hole fixation - simple, secure, and quick to install
• Chrome plating - corrosion resistance and easy cleaning
• Mild steel construction - durable and cost-effective
• 21g weight - lightweight, doesn't add bulk
• Compatible with rivets, self-tapping screws, or spot welding
• In stock - no minimum order, samples ship same day
• Customizable in stainless steel and alternative finishes upon request
• NRH manufacturing case hardware since 1996 - ISO 9001 certified
