Flat Corner Protector 35mm Chrome Plated 3 Holes

Flat Corner Protector for Flight Cases - Chrome Plated 35mm 3 Holes

Applicable Buyers

• Flight case and ATA case manufacturers
• Aluminum case and tool box builders
• Military and defense case suppliers
• Wooden box and export packaging manufacturers
• Instrument and equipment case producers

What Makes This Flat Corner Protector Different

Reinforcement, Not Just Protection

Most corner hardware focuses on impact resistance - but cases also need structural integrity. The 7201-35-1 is a flat corner protector designed specifically for reinforcement. Its flat, square design tightly connects the eight faces of a case, keeping the structure rigid and preventing joints from loosening over time. Think of it as the "skeleton" that holds the case together, rather than the "armor" that absorbs hits.

This is especially important for cases that are assembled, disassembled, or transported frequently - the corners take the most stress during handling, and flat corners keep everything aligned.

35mm Face Length - The Right Size for Most Cases

At 35mm face length, this corner is sized for standard case construction. It provides enough surface area to distribute stress across the joint without adding unnecessary bulk. Whether you're building flight cases, tool boxes, or wooden export crates, this size fits the majority of standard applications.

3-Hole Fixation - Simple and Secure

Three mounting holes (Ø4mm) deliver secure fixation with minimal installation effort. The triangular hole pattern provides stable anchoring with just three fasteners - no over-engineering, just reliable connection. Compatible with rivets, self-tapping screws, or spot welding.

Flat Corner vs. Spherical Corner: Which One Do You Need?

When to Choose This Flat Corner

You need case reinforcement, not impact protection. If your case needs structural integrity - keeping the joints tight and the box square - flat corners are the right choice. They don't absorb impacts; they hold the case together.

You're building a standard-size case. At 35mm face length, this corner fits most standard case applications. Not too big, not too small - just right for wooden boxes, tool cases, and aluminum frames.

You want a clean, flush appearance. Flat corners sit flush with the case surface, giving a professional, finished look. No protruding hardware, just clean lines.

You need a cost-effective reinforcement solution. At 21g with chrome plating, this corner provides reliable reinforcement without adding significant weight or cost.

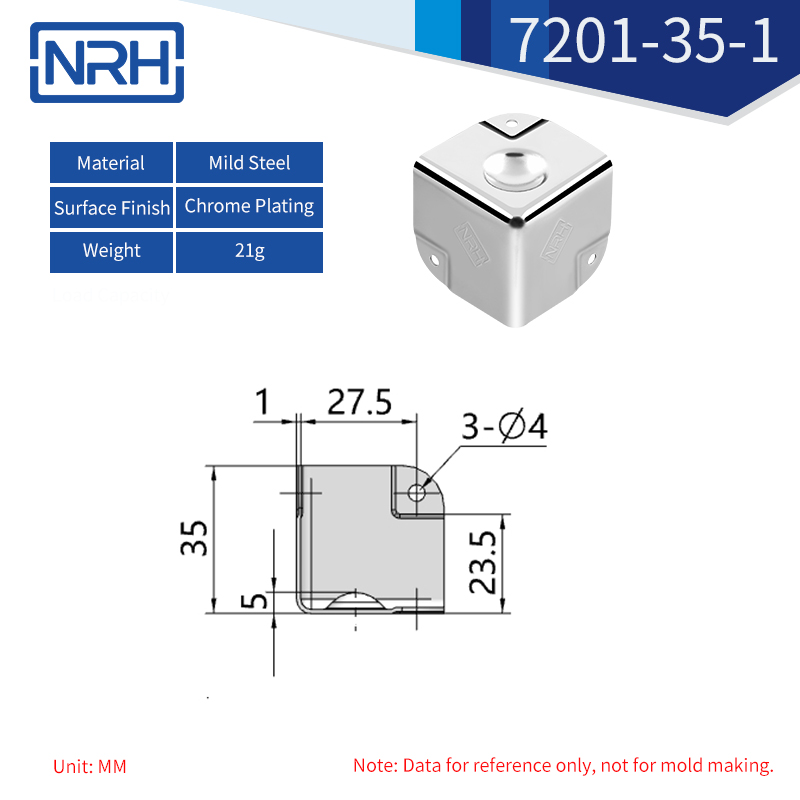

Technical Specifications

Data based on engineering drawing 7201-35-1-FE-CR. For reference only - not for mold making.

Application Guide

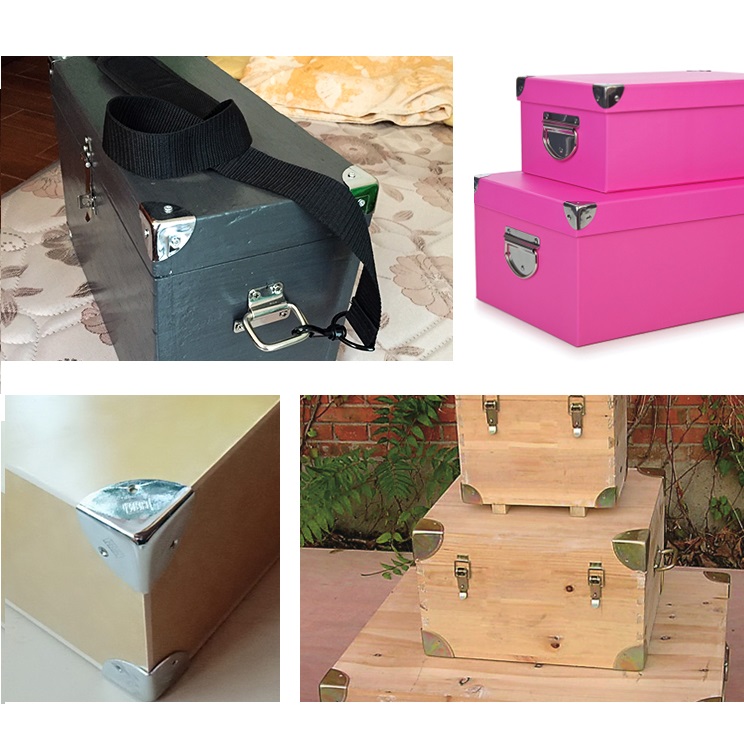

Proven in the Field

NRH flat corners are used by case manufacturers across North America, Europe, and Asia. Applications range from military storage boxes and medical equipment transport cases to industrial tool boxes and export wooden crates.

Common applications include:

• Flight cases for professional audio and lighting equipment
• Tool boxes for workshops and job sites
• Military storage and transport cases
• Wooden export crates and packaging boxes
• Medical equipment transport cases
• Instrument cases for music and measurement equipment

About NRH

NRH started manufacturing case hardware in 1996, with over 25 years of brand history.

Four product lines: latches, handles, hinges, and corner protectors. Over 3,000 product variations. OEM/ODM supported.

Certifications:

• National High-Tech Enterprise (2023)
• ISO 9001 Quality Management (2018)

Five production and distribution centers: Shanghai HQ, plus Beijing, Guangzhou, Zhengzhou, and Chongqing.

In Stock - No Minimum Order

No 500-piece minimum. No 100-piece minimum. Order 1 piece and we ship.

First-time buyers often need to test fit before committing. Order a few samples. Test them on your cases. Verify dimensions, finish, and installation. When you're satisfied, order production quantities.

Same-day dispatch on payment confirmation.

Key Takeaways

• 35mm face length - fits most standard case sizes
• Flat design - sits flush with case surface, professional appearance
• Reinforcement function - connects eight faces of the case, keeps joints tight
• 3-hole fixation - simple, secure, and quick to install
• Chrome plating - corrosion resistance and easy cleaning
• Iron construction - durable and cost-effective
• 21g weight - lightweight, doesn't add bulk
• Compatible with rivets, self-tapping screws, or spot welding
• In stock - no minimum order, samples ship same day
• Customizable in stainless steel and alternative finishes upon request
• NRH manufacturing case hardware since 1996 - ISO 9001 certified
