NRH 9209-125A Extra Heavy Duty Swivel Caster PVC Blue Zinc Plated Ultra High Load Industrial Caster

NRH 9209-125A Extra Heavy Duty Swivel Caster - PVC Wheel, Blue Zinc Plated Bracket, Ultra High Load, 360° Swivel

The NRH 9209-125A is a high‑quality PVC swivel caster designed for extra heavy‑duty industrial equipment, large warehouse racks, and ultra‑high‑load carts requiring flexible movement. The wheel is manufactured from durable polyvinyl chloride (PVC), offering excellent wear resistance, oil resistance, and aging resistance - quiet operation without marking floors. The bracket features a blue zinc plating finish, providing outstanding rust and corrosion protection. Each caster supports an ultra‑high load capacity (130kg per caster), making it suitable for extra heavy‑duty applications in workshops, factories, logistics, and warehousing. Weighing 840g, it delivers robust durability. The swivel bracket allows 360° rotation, enabling effortless direction changes even under extreme loads. The precision‑engineered mounting plate (refer to drawing for exact hole pattern) allows for easy, secure installation. Clear “NRH” branding and heritage since 1996 ensure quality and reliability.

As a product of NRH Box Hardware (specialist since 1996), this caster is manufactured under an ISO 9001 certified system. Regarding international compliance (ISO 9001, REACH, RoHS, SVHC), these standards can be supported based on customer requirements - contact us for details. OEM/ODM services are available for custom wheel materials, colors, or mounting plate dimensions. Full 2D/3D CAD models available upon request.

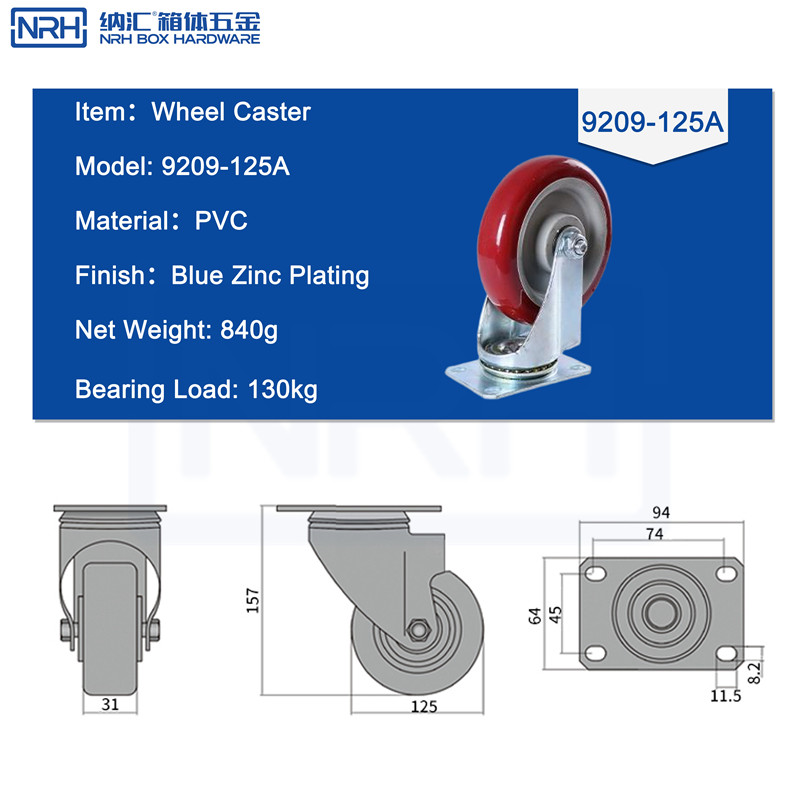

Key dimensions: refer to the engineering drawing for mounting hole spacing, wheel diameter, and overall height.

Why Choose a PVC Swivel Caster with Blue Zinc Plating?

PVC (polyvinyl chloride) is a high‑strength, wear‑resistant, oil‑resistant thermoplastic that performs excellently in industrial environments. Compared to rubber wheels, PVC casters offer lower rolling resistance, higher load capacity, and non‑marking operation. The blue zinc plating on the bracket provides superior rust prevention even in humid or corrosive conditions. The swivel design offers several key benefits:

• 360° maneuverability - change direction easily, ideal for tight spaces and complex paths
• Ultra‑high load capacity - 130kg per caster for extra heavy‑duty needs
• Blue zinc plated bracket - excellent corrosion resistance
• Wear and oil resistant - PVC wheel performs well in oily workshop environments

Additional benefits: non‑marking, quiet rolling, cost‑effective.

Primary Applications - Extra Heavy‑Duty Mobility (Wide Range of Use Cases)

• Extra heavy industrial workbenches & assembly lines - large mobile workstations easily repositioned between stations
• Very large warehouse shelving & material carts - extra heavy‑duty storage racks, heavy material carts
• Large medical equipment carts & hospital beds - easy maneuvering in corridors
• Industrial kitchen equipment & large catering trolleys - extra heavy mobile kitchen islands, food service carts
• Very large laboratory instrument carts - science lab mobile extra heavy equipment, smooth movement
• Large display racks & promotional kiosks - extra large temporary retail displays, easy repositioning
• Film set extra heavy equipment carts - extra heavy gear carts, maneuverable on uneven surfaces
• Extra heavy machinery bases (large compressors, generators) - mobile bases for easy relocation
• Extra heavy‑duty logistics sorting carts - warehouse picking carts, swivel casters boost efficiency
• Industrial robot bases - mobile bases for automation equipment
• Large vending machine bases - mobile bases for installation and servicing
• Very large exhibition booth components - temporary modular displays, quick assembly

How It Works - Swivel Bracket, 360° Free Rotation

The NRH 9209-125A caster is designed for straightforward attachment to the underside of equipment. The top plate (with multiple mounting holes) is bolted or screwed to the chassis. The wheel rotates on a precision axle. The swivel bracket contains an extra heavy‑duty bearing that allows 360° independent rotation around the vertical axis, enabling movement in any direction. The PVC wheel provides low rolling resistance, making equipment easy to push even under 130kg loads. In practice, swivel casters are often paired with rigid casters (e.g., two swivel casters at the front + two rigid casters at the rear) to achieve both flexibility and straight‑line stability. For four‑caster setups, the recommended total load capacity is calculated based on three casters (to account for uneven floors), giving a safe working load of 390kg (3 × 130kg).

Key Advantages

• Ultra‑high load capacity per caster - reliable for extra heavy‑duty industrial equipment
• PVC wheel + blue zinc plated bracket - wear‑resistant, oil‑resistant, rust‑proof
• Swivel function - 360° flexible steering, low effort operation
• Non‑marking wheel - protects floors, quiet operation
• Chemical resistant - withstands workshop oils and cleaning agents
• Easy mounting - precision hole pattern (see drawing) for quick installation
• OEM/ODM ready - custom wheel colors, plate sizes, or bearing types available

Technical Specifications

• Brand: NRH Box Hardware
• Model Number: 9209-125A
• Product Name: PVC Swivel Caster
• Wheel Material: PVC (Polyvinyl Chloride)
• Bracket Finish: Blue Zinc Plating
• Net Weight: 840g
• Bearing Load: 130kg (static/dynamic per caster)
• Brake: No
• Swivel Type: 360° swivel
• Key Dimensions: Refer to engineering drawing (mounting hole pattern, wheel diameter, overall height)
• Compliance: ISO 9001, REACH, RoHS, SVHC (available upon request - contact us for details)
• Note: Data for reference only. Manufacturer Since 1996. OEM/ODM Services Available. 2D/3D CAD on request.

Why Trust NRH

NRH Box Hardware has been designing and manufacturing industrial hardware since 1996. The 9209-125A PVC extra heavy‑duty swivel caster is produced under ISO 9001 certified quality control with full batch traceability. Its 130kg load capacity and blue zinc plated corrosion resistance are tested to ensure reliable performance in extra heavy workshops, warehousing, and logistics environments. For a high‑strength, corrosion‑resistant, floor‑friendly caster that delivers 360° maneuverability and extra heavy‑load handling, NRH delivers proven quality.
