NRH 9209-100B Heavy Duty Swivel Caster with Brake PVC Blue Zinc Plated High Load Industrial Caster

NRH 9209-100B Heavy Duty Swivel Caster with Brake - PVC Wheel, Blue Zinc Plated Bracket, High Load, Lockable

The NRH 9209-100B is a high‑quality PVC swivel caster with integrated brake, designed for heavy‑duty industrial equipment, large warehouse racks, and high‑load carts requiring both flexible movement and secure parking. The wheel is manufactured from durable polyvinyl chloride (PVC), offering excellent wear resistance, oil resistance, and aging resistance - quiet operation without marking floors. The bracket features a blue zinc plating finish, providing outstanding rust and corrosion protection. Each caster supports a high load capacity (125kg per caster), making it suitable for heavy‑duty applications in workshops, factories, logistics, and warehousing. Weighing 827g, it delivers robust durability. The key feature is the built‑in brake pedal - step down to lock the wheel and prevent unintended movement; release to resume free swiveling and rolling. The precision‑engineered mounting plate (refer to drawing for exact hole pattern) allows for easy, secure installation. Clear “NRH” branding and heritage since 1996 ensure quality and reliability.

As a product of NRH Box Hardware (specialist since 1996), this caster is manufactured under an ISO 9001 certified system. Regarding international compliance (ISO 9001, REACH, RoHS, SVHC), these standards can be supported based on customer requirements - contact us for details. OEM/ODM services are available for custom wheel materials, colors, or mounting plate dimensions. Full 2D/3D CAD models available upon request.

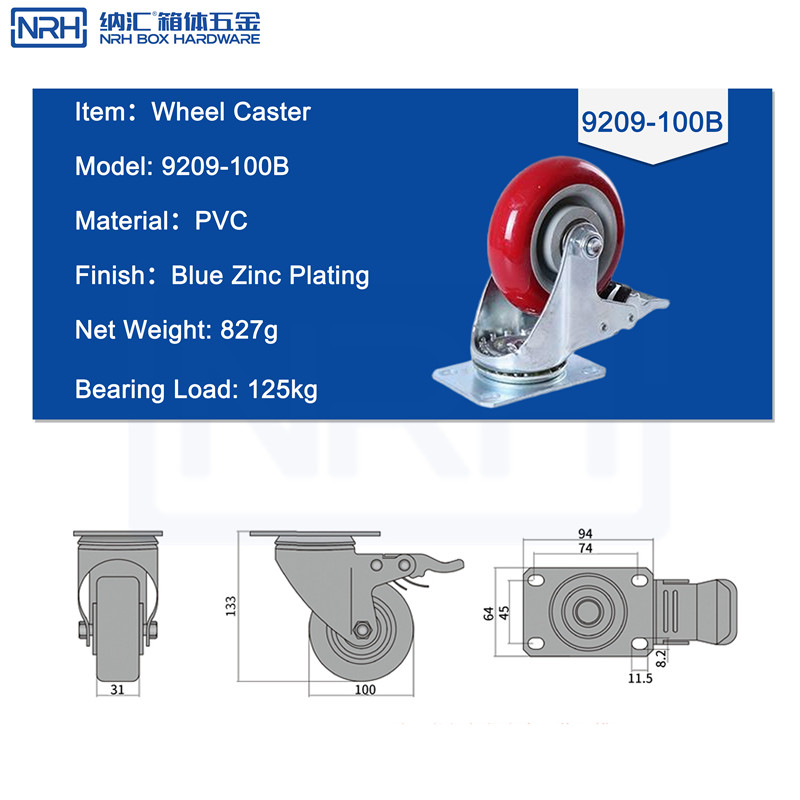

Key dimensions: refer to the engineering drawing for mounting hole spacing, wheel diameter, and overall height.

Why Choose a PVC Swivel Caster with Brake and Blue Zinc Plating?

PVC (polyvinyl chloride) is a high‑strength, wear‑resistant, oil‑resistant thermoplastic that performs excellently in industrial environments. Compared to rubber wheels, PVC casters offer lower rolling resistance, higher load capacity, and non‑marking operation. The blue zinc plating on the bracket provides superior rust prevention even in humid or corrosive conditions. The swivel + brake design delivers easy maneuverability and secure parking. Step on the brake pedal to lock the wheel, preventing accidental movement. Release to swivel and roll freely. Key benefits:

• 360° maneuverability - change direction easily, ideal for tight spaces and complex paths
• High load capacity - 125kg per caster for heavy‑duty needs
• Blue zinc plated bracket - excellent corrosion resistance
• Wear and oil resistant - PVC wheel performs well in oily workshop environments
• Secure parking - brake locks the wheel, preventing unintended movement on slopes or during stationary work

Primary Applications - Heavy‑Duty Mobility with Secure Parking (Wide Range of Use Cases)

• Heavy industrial workbenches & assembly lines - large mobile workstations; brake prevents sliding during tool use
• Large warehouse shelving & material carts - heavy‑duty storage racks, heavy material carts; brake for temporary stops
• Medical equipment carts & hospital beds - brake ensures stable parking in corridors
• Commercial kitchen equipment & large catering trolleys - heavy mobile kitchen islands; brake prevents sliding
• Large laboratory instrument carts - brake keeps heavy instruments steady during experiments
• Display racks & promotional kiosks - large temporary retail displays; brake fixes position
• Photography equipment carts - brake locks position to avoid sliding during shooting
• Machinery bases (large compressors, generators) - brake prevents vibration‑induced movement
• Heavy‑duty logistics sorting carts - brake for stable stops during sorting
• Industrial robot bases - brake for secure positioning during setup
• Large vending machine bases - brake for stable installation and servicing
• Exhibition booth components - brake for quick position fixing

How It Works - Swivel Bracket + Brake Mechanism

The NRH 9209-100B caster is designed for straightforward attachment to the underside of equipment. The top plate (with multiple mounting holes) is bolted or screwed to the chassis. The wheel rotates on a precision axle. The swivel bracket contains a heavy‑duty bearing that allows 360° independent rotation, enabling movement in any direction. The brake mechanism (typically a pedal) - when engaged, a brake pad presses against the wheel surface or locks the axle, preventing rolling. To release, lift the pedal or tap it again. The PVC wheel provides low rolling resistance, making equipment easy to push even under 125kg loads. Swivel casters with brake are often paired with rigid casters for optimal control. For four‑caster setups, the recommended total load capacity is calculated based on three casters (to account for uneven floors), giving a safe working load of 375kg (3 × 125kg).

Key Advantages

• High load capacity per caster - reliable for heavy‑duty industrial equipment
• PVC wheel + blue zinc plated bracket - wear‑resistant, oil‑resistant, rust‑proof
• Swivel + brake function - move freely, park securely
• Non‑marking wheel - protects floors, quiet operation
• Chemical resistant - withstands workshop oils and cleaning agents
• Easy mounting - precision hole pattern (see drawing) for quick installation
• OEM/ODM ready - custom wheel colors, plate sizes, or bearing types available

Technical Specifications

• Brand: NRH Box Hardware
• Model Number: 9209-100B
• Product Name: PVC Swivel Caster with Brake
• Wheel Material: PVC (Polyvinyl Chloride)
• Bracket Finish: Blue Zinc Plating
• Net Weight: 827g
• Bearing Load: 125kg (static/dynamic per caster)
• Brake: Yes (pedal‑type)
• Swivel Type: 360° swivel
• Key Dimensions: Refer to engineering drawing (mounting hole pattern, wheel diameter, overall height)
• Compliance: ISO 9001, REACH, RoHS, SVHC (available upon request - contact us for details)
• Note: Data for reference only. Manufacturer Since 1996. OEM/ODM Services Available. 2D/3D CAD on request.

Why Trust NRH

NRH Box Hardware has been designing and manufacturing industrial hardware since 1996. The 9209-100B PVC heavy‑duty swivel caster with brake is produced under ISO 9001 certified quality control with full batch traceability. Its 125kg load capacity, brake reliability, and blue zinc plated corrosion resistance are tested to ensure safe performance in heavy workshops, warehousing, and logistics environments. For a high‑strength, corrosion‑resistant, floor‑friendly caster that offers both 360° maneuverability and secure parking, NRH delivers proven quality.
