NRH 9201-38B Swivel Caster with Brake PP Black 60kg Load Industrial Caster

NRH 9201-38B Swivel Caster with Brake - PP, Black, 60kg Load, Lockable Wheel

The NRH 9201-38B is a high‑quality PP swivel caster with integrated brake, designed for smooth, reliable mobility and secure parking on industrial cabinets, tool chests, and equipment cases. Manufactured from durable polypropylene (PP) with a sleek black finish, it offers excellent resistance to impact, chemicals, and moisture. Each caster supports a 60kg bearing load, making it suitable for medium‑duty applications in workshops, factories, and logistics. Weighing 151g, it delivers robust durability. The key feature is the built‑in brake pedal - step down to lock the wheel and prevent unintended movement; release to resume free swiveling and rolling. The precision‑engineered mounting plate (refer to drawing for exact hole pattern) allows for easy, secure installation. Clear “NRH” branding and heritage since 1996 ensure quality and reliability.

As a product of NRH Box Hardware (specialist since 1996), this caster is manufactured under an ISO 9001 certified system. Regarding international compliance (ISO 9001, REACH, RoHS, SVHC), these standards can be supported based on customer requirements - contact us for details. OEM/ODM services are available for custom wheel materials, colors, or mounting plate dimensions. Full 2D/3D CAD models available upon request.

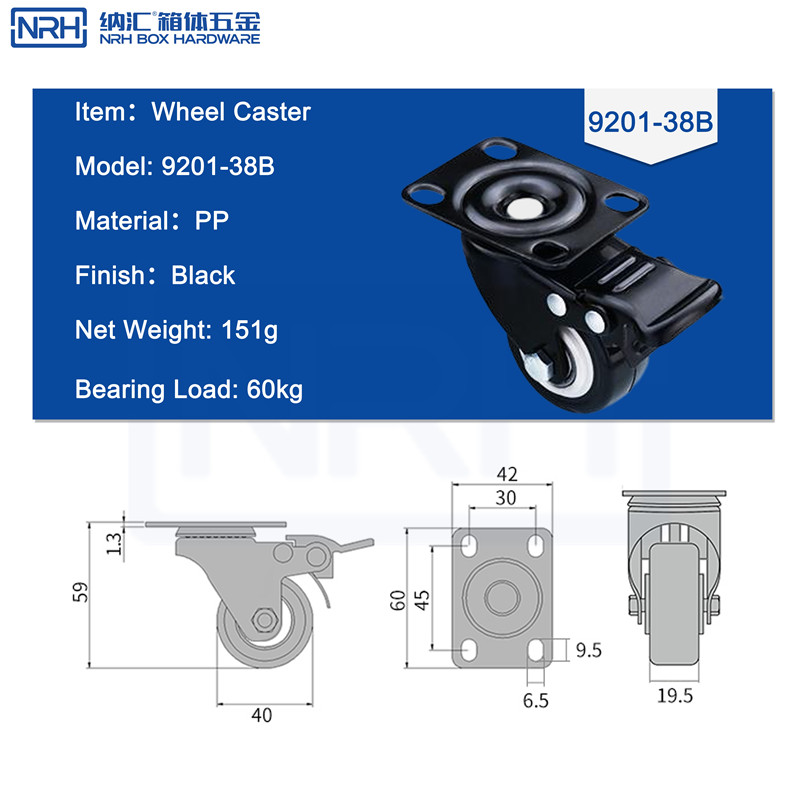

Key dimensions: refer to the engineering drawing for mounting hole spacing, wheel diameter, and overall height.

Why Choose a PP Swivel Caster with Brake?

Polypropylene (PP) is a lightweight, impact‑resistant thermoplastic that performs well in indoor industrial environments. Unlike rubber wheels, PP casters do not mark floors, resist oils and solvents, and roll smoothly over minor debris. The swivel + brake design delivers easy maneuverability and secure parking. Step on the brake pedal to lock the wheel, preventing accidental movement. Release to swivel and roll freely.

• Chemical and moisture resistance - ideal for workshops, labs, and light manufacturing
• Floor‑friendly - non‑marking, quiet rolling, no black streaks
• Lightweight yet strong - 151g per caster while supporting 60kg load
• Cost‑effective - excellent value for medium‑duty mobility needs

Primary Applications - Wide Range of Use Cases

• Industrial tool chests & workbenches - add mobility; brake prevents sliding during tool use
• Server racks & network cabinets - enable repositioning; brake ensures stability
• Equipment cases & flight cases - portable rolling cases for AV, medical, or test gear
• Storage bins & utility carts - light‑to‑medium duty logistics and assembly carts
• Kitchen equipment & catering trolleys - mobile commercial kitchen stations, brake prevents unexpected movement
• Medical carts & device stands - hospital medicine trolleys, instrument stands - brake for safety
• Display stands & promotional kiosks - temporary retail displays, brake to fix position
• Garden tool carts & planting racks - greenhouse or garden center mobile carts, brake to prevent rolling on slopes
• Laboratory instrument carts - science lab mobile equipment, brake ensures precision work
• Cable reels & winding carts - construction site cable reel carts, brake prevents movement during cable payout
• Logistics sorting carts - warehouse picking carts, brake for temporary stops
• EV maintenance platforms - garage mobile lift tables, brake for safety
• Small generator bases - generator mobile frames, brake prevents vibration‑induced movement
• Photography equipment carts - film set mobile gear carts, brake ensures equipment stability
• Floor scrubber/dryer bases - cleaning equipment mobile bases, brake for charging parking

How It Works - Swivel Bracket + Brake Mechanism

The NRH 9201-38B caster is designed for straightforward attachment to the underside of equipment. The top plate (with multiple mounting holes) is bolted or screwed to the chassis. The wheel rotates on a precision axle. The swivel bracket allows the wheel to independently steer, enabling omni‑directional movement. The brake mechanism (typically a pedal) - when engaged, a brake pad presses against the wheel surface or locks the axle, preventing rolling. To release, lift the pedal or tap it again. For four‑caster setups, the recommended total load capacity is calculated based on three casters (to account for uneven floors), giving a safe working load of 180kg (3 × 60kg).

Key Advantages

• 60kg load capacity per caster - reliable for medium‑duty industrial equipment
• PP construction - 151g ensures robust durability
• Swivel + brake function - move freely, park securely
• Non‑marking black wheel - protects floors, quiet operation
• Chemical & impact resistant - withstands workshop oils and occasional bumps
• Easy mounting - precision hole pattern (see drawing) for quick installation
• OEM/ODM ready - custom wheel colors, plate sizes, or bearing types available

Technical Specifications

• Brand: NRH Box Hardware
• Model Number: 9201-38B
• Product Name: PP Swivel Caster with Brake
• Material: Polypropylene (PP)
• Finish: Black
• Net Weight: 151g
• Bearing Load: 60kg (static/dynamic per caster)
• Brake: Yes (pedal‑type)
• Swivel Type: 360° swivel
• Key Dimensions: Refer to engineering drawing (mounting hole pattern, wheel diameter, overall height)
• Compliance: ISO 9001, REACH, RoHS, SVHC (available upon request - contact us for details)
• Note: Data for reference only. Manufacturer Since 1996. OEM/ODM Services Available. 2D/3D CAD on request.

Why Trust NRH

NRH Box Hardware has been designing and manufacturing industrial hardware since 1996. The 9201-38B PP swivel caster with brake is produced under ISO 9001 certified quality control with full batch traceability. Its 60kg load capacity and brake reliability are tested to ensure safe performance in workshops, data centers, and logistics environments. For a lightweight, corrosion‑resistant, floor‑friendly caster that offers both mobility and secure parking, NRH delivers proven quality.
