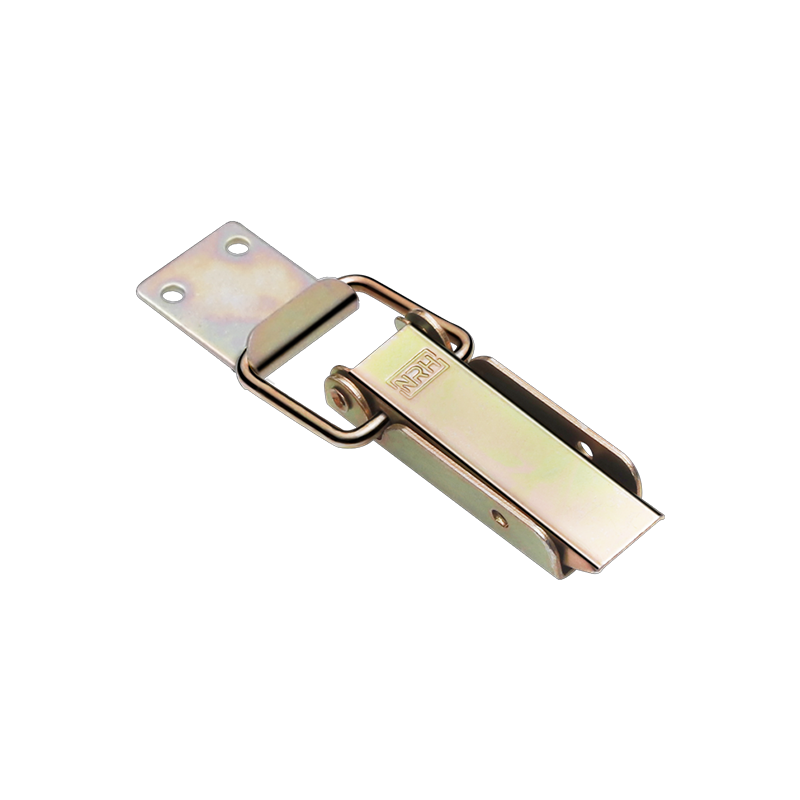

Latch 5403-83-2 3D Model

Product Overview

The 5403-83-2 medium-duty latch delivers reliable, consistent latching performance for a wide range of industrial enclosures and equipment. Engineered for everyday use across multiple industries, it provides secure closure with straightforward operation.

Design & Construction

The 5403-83-2 latch features a robust draw-latch mechanism designed for dependable closure on standard industrial enclosures. The lever-operated toggle mechanism pulls the latch closed with progressive force, ensuring gasket compression and a secure seal. The over-center lock position prevents accidental release from vibration, and the substantial base plate provides solid mounting for reliable long-term performance.

Materials & Finish

Built from sturdy Cold-Rolled Carbon Steel (SPCC) with a Zinc Plated coating, the 5403-83-2 latch delivers strong, reliable latching performance with good corrosion resistance for typical industrial environments. The steel construction provides the tensile strength needed for secure latching under load, while the surface finish adds a layer of protection against oxidation and wear.

Performance & Specifications

The 5403-83-2 medium-duty latch delivers reliable latching performance for standard industrial enclosures and equipment access panels. The draw-latch mechanism provides solid pull-up force for gasket compression and secure closure, and the over-center lock position ensures the latch remains closed under vibration and normal operating loads. Under typical conditions, the latch maintains consistent performance over thousands of operating cycles. Working load: 20kg.

Typical Applications

The 5403-83-2 medium-duty latch is widely used across industrial and commercial applications for securing equipment enclosures, control cabinets, and access panels. Common applications include electrical distribution cabinets, industrial machine enclosures, network and server racks, HVAC equipment access doors, and industrial tool storage. The dependable latching performance and straightforward installation make it a standard choice for panel builders and enclosure manufacturers.

Installation & Usage

Proper installation of the 5403-83-2 latch is essential for dependable performance and long service life. Begin by marking the latch location on the door, taking into account the required clearance and ergonomic access height. Drill mounting holes and install the latch body securely using appropriate fasteners. Next, transfer the catch position to the frame using a marking tool or by carefully measuring the alignment. Install the catch or keeper plate, leaving room for initial adjustment. Close the latch and check engagement quality and pull-up force. Adjust the catch position as needed to achieve proper latching with adequate gasket compression (if applicable) and a positive over-center feel. Once adjusted, tighten all fasteners securely. Test the latch through multiple cycles to confirm consistent operation.

Why Choose NRH

With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.

Every Latch in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
