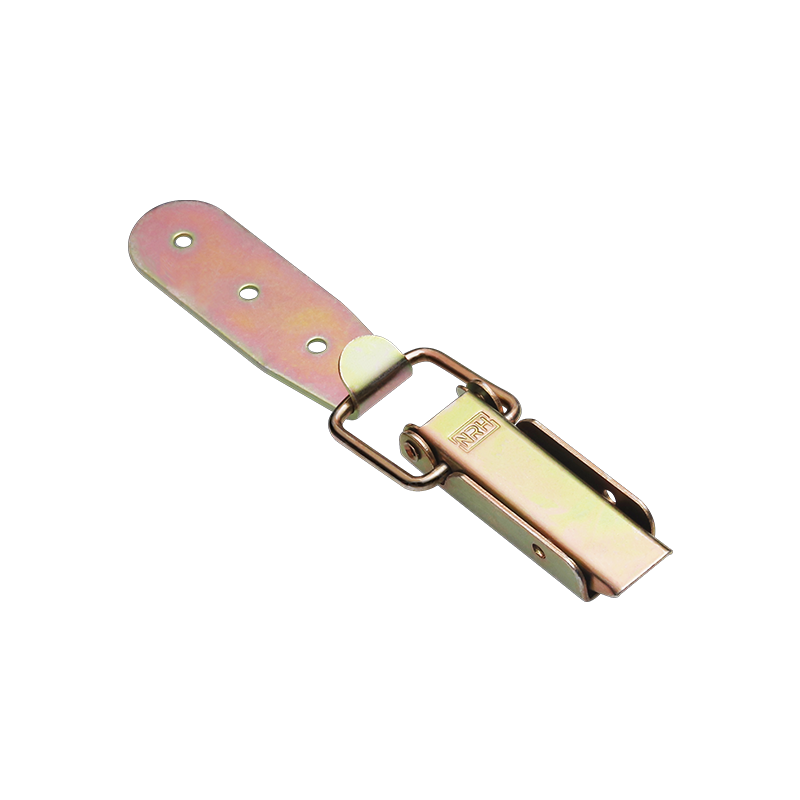

Latch 5403-83-1 3D Model

Product Overview

Versatile and dependable, the 5403-83-1 latch is built for medium-duty industrial applications. Its balanced construction ensures positive latching while maintaining ease of use for operators accessing equipment regularly.

Design & Construction

The toggle latch design of the 5403-83-1 delivers consistent, reliable closure for medium-duty applications. The stamped or formed steel construction provides good structural integrity, and the pivot points are sized for smooth operation and long service life. The adjustable catch allows for fine-tuning of latching tension to accommodate gasket compression and manufacturing tolerances.

Materials & Finish

Built from sturdy Cold-Rolled Carbon Steel (SPCC) with a Zinc Plated coating, the 5403-83-1 latch delivers strong, reliable latching performance with good corrosion resistance for typical industrial environments. The steel construction provides the tensile strength needed for secure latching under load, while the surface finish adds a layer of protection against oxidation and wear.

Performance & Specifications

Engineered for dependable industrial use, the 5403-83-1 latch provides secure closure with good mechanical advantage for drawing panels tightly together. The latch mechanism is designed for smooth, positive operation with a clear engagement point that gives operators confidence the latch is properly secured. Rated working load: 20kg. Performance ratings assume proper installation and use within recommended parameters.

Typical Applications

Found in manufacturing facilities, data centers, food processing plants, pharmaceutical equipment, and commercial building systems, the 5403-83-1 latch provides reliable closure for a wide variety of equipment. It is frequently specified for use on industrial control panels, automation equipment enclosures, generator set access doors, and utility cabinets where secure, accessible closure is essential for equipment protection and operator safety.

Installation & Usage

Installation of the 5403-83-1 medium-duty latch requires attention to alignment and mounting integrity to ensure reliable long-term performance. Start by determining the proper latch location on your enclosure, considering both functional requirements and ergonomic access. Position the latch body on the door or movable panel, mark the mounting holes, and drill or punch appropriately sized holes. Secure the latch body using suitable fasteners for your panel thickness and material. Next, position the catch or strike plate on the stationary frame, carefully aligning it with the latch mechanism to ensure proper engagement. Install the catch, then test the latch operation. Adjust the catch position if needed to achieve the correct pull-up force and positive over-center lock. For enclosures with gaskets, verify that sufficient compression is achieved when the latch is fully closed. Periodically check mounting fasteners for tightness during service.

Why Choose NRH

With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.

Every Latch in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
