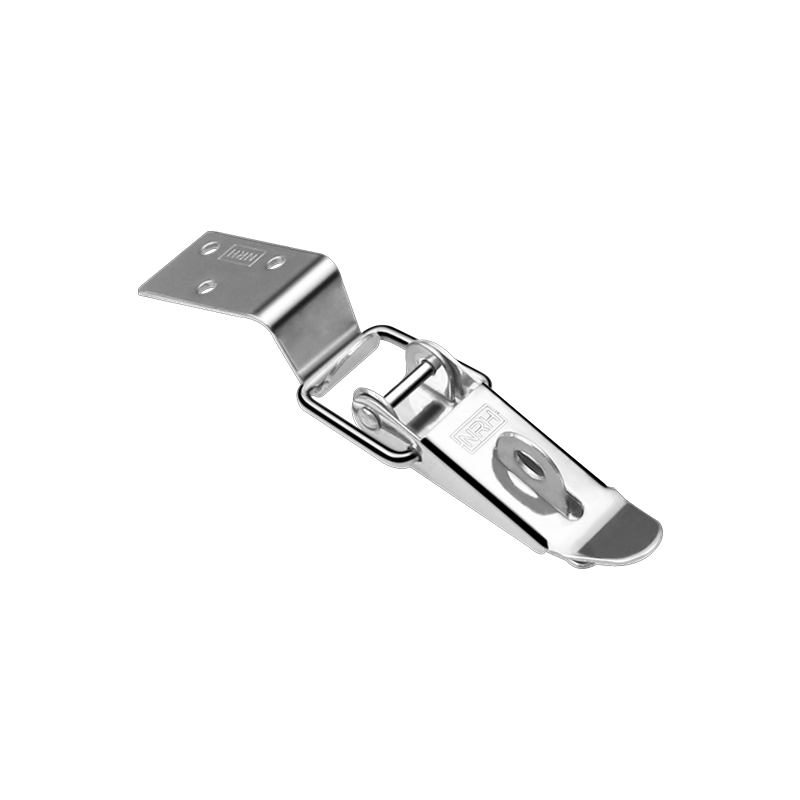

Latch 5311-103k 3D Model

Product Overview

The 5311-103k heavy-duty latch delivers robust, secure latching performance for demanding industrial applications and heavy enclosures. Engineered to withstand significant forces and harsh operating conditions, it provides reliable closure when equipment integrity is critical.

Design & Construction

This heavy-duty latch is constructed with industrial-grade components for maximum durability and holding strength. The reinforced lever mechanism provides significant mechanical advantage for compressing thick gaskets and drawing heavy panels together. All load-bearing surfaces are sized and reinforced to prevent deformation under load, and the over-center lock design provides a wide safety margin against accidental release.

Materials & Finish

The 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC) build of this latch provides outstanding corrosion resistance along with good mechanical strength. Stainless steel construction eliminates concerns about rust and degradation, making the latch suitable for hygienic environments, outdoor installations, and applications where regular washdowns are required.

Performance & Specifications

Built for heavy-duty industrial service, the 5311-103k latch provides powerful, reliable closure for equipment where secure latching is critical. The heavy-duty toggle mechanism generates significant pull-up force for compressing thick gaskets and drawing heavy panels into proper alignment. All load-bearing components are oversized and reinforced for maximum durability. Rated working load: 40kg.

Typical Applications

The 5311-103k heavy-duty latch is essential for heavy equipment enclosures, transportation cases, large industrial machinery, and outdoor equipment where secure closure under demanding conditions is critical. It is commonly used on heavy construction equipment access panels, railway equipment enclosures, military and defense equipment cases, and large generator housings. The robust construction ensures reliable latching even when subjected to vibration, shock loads, and harsh environmental conditions.

Installation & Usage

Heavy-duty latches such as the 5311-103k demand careful, professional installation for safe, reliable performance in demanding applications. Start by evaluating the mounting structure to ensure it can handle the rated latching and pull-up forces without yielding or fatigue failure. Add reinforcement plates or structural backing where needed, especially on thinner panel materials. Carefully position and mark both the latch body and catch locations, maintaining precise alignment for proper engagement. Drill or machine mounting holes for heavy-duty fasteners, then install both components with appropriate hardware and backing support. Adjust the catch position to achieve the desired tension and over-center lock, then thoroughly test the installation. Create a maintenance and inspection schedule to verify tightness, wear, and proper latching performance at regular intervals throughout the service life.

Why Choose NRH

With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.

Every Latch in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
