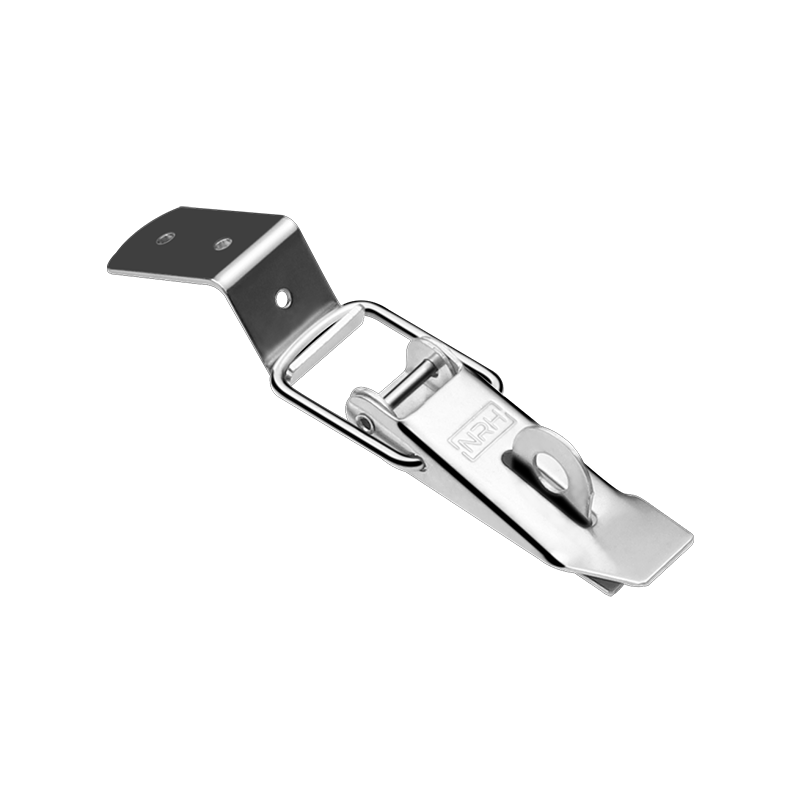

Latch 5301-112k 3D Model

Product Overview

The 5301-112k heavy-duty latch delivers robust, secure latching performance for demanding industrial applications and heavy enclosures. Engineered to withstand significant forces and harsh operating conditions, it provides reliable closure when equipment integrity is critical.

Design & Construction

Engineered for heavy-duty service, the 5301-112k latch features a reinforced draw-latch mechanism built to handle substantial loads and harsh operating conditions. The thick-gauge steel base and heavy-duty toggle linkage are sized for maximum strength, while the oversized pivot pins ensure smooth operation under high mechanical stress. The robust hook and catch geometry provides wide engagement surfaces for secure, dependable latching even under shock and vibration.

Materials & Finish

The 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC) build of this latch provides outstanding corrosion resistance along with good mechanical strength. Stainless steel construction eliminates concerns about rust and degradation, making the latch suitable for hygienic environments, outdoor installations, and applications where regular washdowns are required.

Performance & Specifications

The 5301-112k heavy-duty latch delivers substantial latching force for heavy enclosures, transportation equipment, and demanding industrial applications. The reinforced mechanism is built to handle high loads and harsh conditions, with heavy-gauge components that resist deformation and maintain performance over extended service life. The over-center lock provides a wide safety margin against accidental release, even under significant vibration and shock loads. Working load: 35kg.

Typical Applications

Primary applications include heavy industrial machinery guards and access doors, transportation and shipping containers, off-road vehicle equipment enclosures, mining equipment panels, and large outdoor telecom shelters. Wherever equipment must stay securely closed despite vibration, temperature extremes, and rough handling, the 5301-112k heavy-duty latch provides the dependable performance required. It is also widely used in the aerospace and defense industries for ground support equipment and shelter systems.

Installation & Usage

Heavy-duty latches such as the 5301-112k demand careful, professional installation for safe, reliable performance in demanding applications. Start by evaluating the mounting structure to ensure it can handle the rated latching and pull-up forces without yielding or fatigue failure. Add reinforcement plates or structural backing where needed, especially on thinner panel materials. Carefully position and mark both the latch body and catch locations, maintaining precise alignment for proper engagement. Drill or machine mounting holes for heavy-duty fasteners, then install both components with appropriate hardware and backing support. Adjust the catch position to achieve the desired tension and over-center lock, then thoroughly test the installation. Create a maintenance and inspection schedule to verify tightness, wear, and proper latching performance at regular intervals throughout the service life.

Why Choose NRH

With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.

Every Latch in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
