NRH Safety Toggle Clamp with Locking Feature | Heavy Duty Quick Release Clamp
Made to Order
The NRH 3101-180 is a professional-grade safety toggle clamp designed with a reliable locking mechanism that prevents accidental release during critical operations. Featuring a distinctive blue handle for easy identification and operation, this clamp is engineered from SUS304 stainless steel with a vibratory finishing surface that provides both durability and corrosion resistance. As a product from NRH Box Hardware, a specialist manufacturer since 1996, this safety clamp combines quick-release functionality with secure locking capability, making it ideal for applications where workpiece security is paramount.
Primary Applications:
This safety locking clamp is specifically designed for applications requiring both quick operation and secure holding:
-
Industrial Equipment & Machinery: Securing components in welding jigs, fabrication fixtures, CNC machine guards, and assembly stations where accidental release could be hazardous.
-
Transport & Shipping Cases: Providing locked security for ATA cases, flight cases, instrument transport boxes, and valuable cargo containers.
-
Military & Field Equipment: Ensuring tamper-resistant closure for military gear cases, communication equipment boxes, and tactical storage containers.
-
Automotive & Manufacturing: Used in production fixtures, quality control stations, and automotive repair jigs requiring secure workpiece positioning.
-
Woodworking & Carpentry: Ideal for woodworking fixtures, clamping stations, and assembly jigs where locked position prevents workpiece movement.
How It Works (Operating Principle):

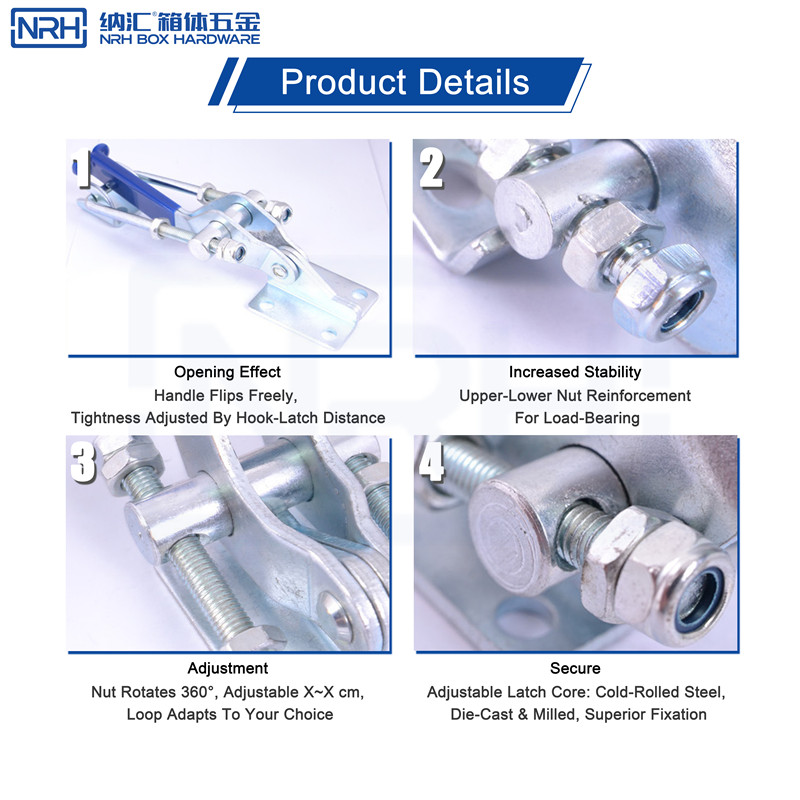

This clamp operates on an over-center toggle mechanism with a safety locking feature. The blue handle serves as the operational lever - pushing it down engages the clamping arm and activates the over-center locking action. The unique safety lock mechanism prevents the handle from being accidentally lifted once engaged, ensuring the workpiece remains securely held. To release, the lock must be deliberately disengaged before lifting the handle, providing an additional layer of operational safety.
Features & Specifications:
-
Safety Locking Mechanism: Built-in lock prevents accidental release, enhancing operational safety
-
Durable SUS304 Construction: Stainless steel material with vibratory finishing for corrosion resistance
-
Adjustable Length: Configurable length from 153mm to 180mm for versatile applications
-
High Clamping Force: Delivers 2942N (300kg) of secure holding power
-
Quick Release Blue Handle: Easy identification and efficient operation
-
Secure Mounting Options: Multiple mounting holes for stable installation
Technical Specifications:
|
Item
|
Specification
|
|---|---|
|
Brand
|
NRH Box Hardware
|
|
Model Number
|
3101-180
|
|
Product Name
|
Safety Toggle Clamp with Lock
|
|
Primary Material
|
SUS304 Stainless Steel
|
|
Surface Finish
|
Vibratory Finishing
|
|
Product Weight
|
249g
|
|
Clamping Force
|
2942N (300kg)
|
|
Adjustment Range
|
153mm - 180mm
|
|
Mounting Holes
|
4 × Φ6.5mm
|
|
Key Dimensions
|

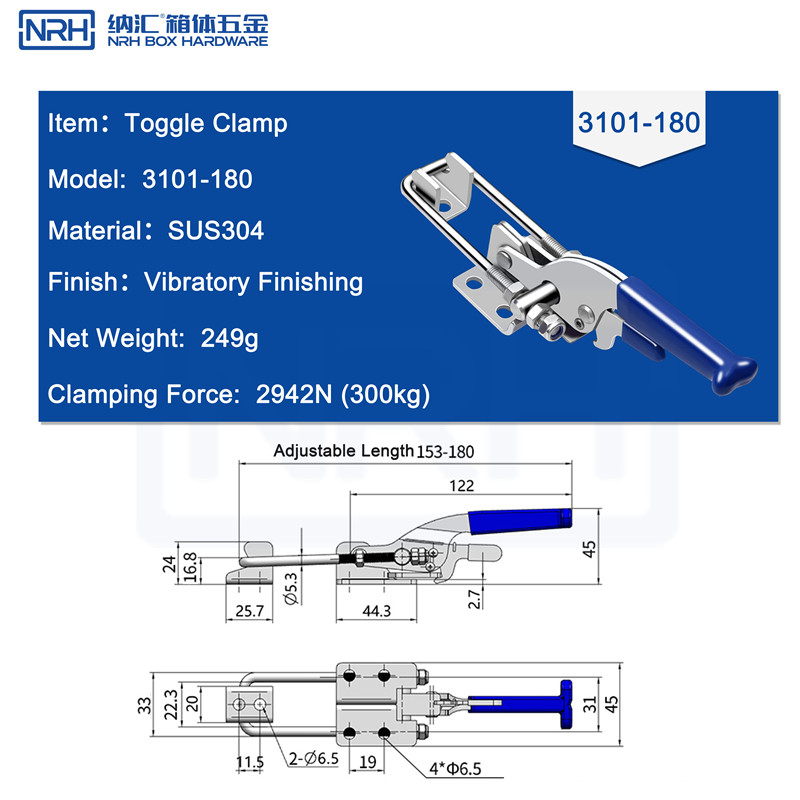

As per technical drawing: 122mm, 45mm, 24mm, 16.8mm, 5.3mm, 25.7mm, 44.3mm, 2.7mm, 33mm, 22.3mm, 11.5mm
|
|
Compliance
|
ISO 9001, SGS, REACH, RoHS, SVHC
|
|
Additional Info
|
Manufacturer Since 1996. OEM/ODM Services Available
|
| Brand | NRH |
|---|---|
| Country of Origin | China |
| Certifications | CE, ISO9001, UL, SGS, RoHS |
| Minimum Order Quantity | 1 |
| Production Lead Time | 7-30 days |
| Stock Status | Made to Order |

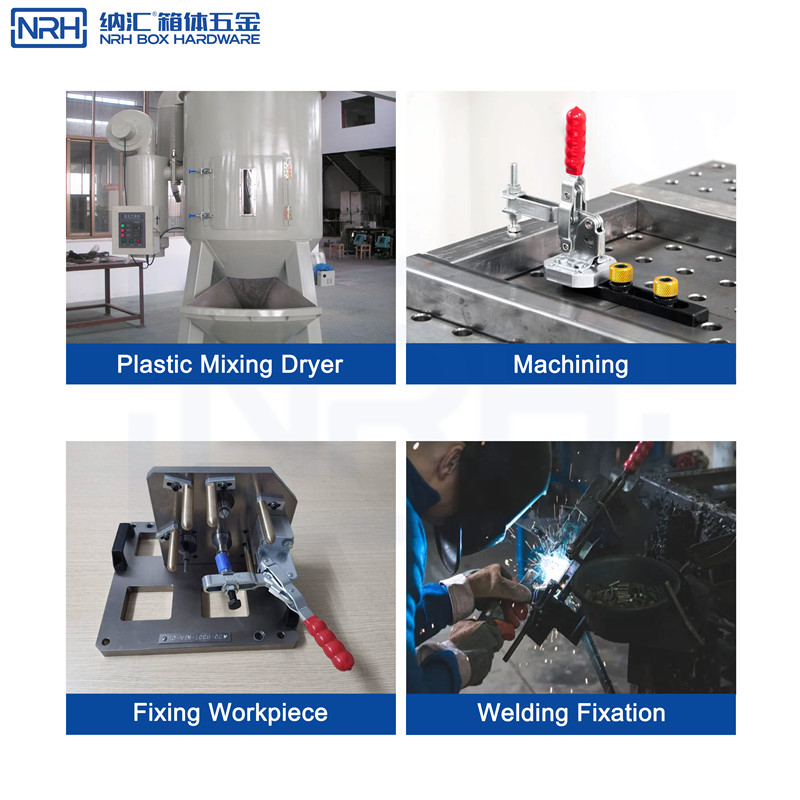

Toggle Clamps Applications
