NRH 5103-70 Toggle Latch | SUS304 Vibratory Finish 153kg Spring Assisted

NRH 5103-70 Toggle Latch - SUS304 Stainless Steel, Vibratory Finish, Spring-Assisted, 153kg Load

The NRH 5103-70 is a premium toggle latch engineered to securely clamp two panels or objects together in demanding industrial, outdoor, and hygienic environments. Manufactured from SUS304 stainless steel (the industry standard for corrosion resistance), this latch outperforms carbon steel alternatives in salt spray, humidity, and chemical exposure. The vibratory finishing process imparts a smooth, satin, burr‑free surface that is exceptionally easy to clean - critical for food processing, medical devices, and pharmaceutical equipment. With a net weight of only 36g yet an outstanding 1500N (153kg) tensile load, it offers one of the highest strength‑to‑weight ratios in its class. Overall length is 83.5mm with a latch body height of 70.5mm, and it mounts via 4×Φ4mm holes (refer to engineering drawing for exact positions). The integrated spring‑assisted over‑center mechanism ensures positive locking with tactile feedback and effortless release.

As a product of NRH Box Hardware (established since 1996), this latch is manufactured under a certified quality management system. Regarding international compliance (ISO 9001, REACH, RoHS, SVHC), these standards can be supported based on customer requirements and applicable costs - please contact us for specific certification needs. OEM and ODM services are available, including custom hole patterns, lever lengths, or finish modifications. Comprehensive 2D engineering drawings and 3D CAD models are provided upon request to streamline your product integration.

Why SUS304 Stainless Steel & Vibratory Finishing?

SUS304 (AISI 304) is the most widely used austenitic stainless steel, offering excellent resistance to oxidation, rust, and a wide range of chemicals. Unlike SPCC with chrome plating - which can chip or scratch - solid SUS304 retains its corrosion resistance even if the surface is abraded. The vibratory finishing process uses abrasive media in a vibrating bowl to uniformly deburr and smooth the surface, achieving a satin sheen without sharp edges. This makes the latch ideal for:

• Food, beverage, and pharmaceutical environments - where bacteria entrapment is a concern; the smooth surface is easy to sanitize.
• Marine and coastal applications - resistance to salt spray extends service life.
• Medical and cleanroom settings - non‑porous finish prevents particle shedding.
• Outdoor telecom and power cabinets - withstands UV, rain, and temperature cycling.

Primary Applications - Engineered for Reliability

This latch is specified in mission‑critical scenarios where failure is not an option:

• Industrial control panels & electrical enclosures - UL508A cabinets, PLC housings, variable frequency drive enclosures. The 1500N hold ensures door seals remain compressed against vibration.
• Medical devices & laboratory equipment - Sterilizers, diagnostic instrument cases, mobile medical carts. Stainless steel construction meets infection control guidelines.
• Food processing machinery - Mixing vat covers, inspection hatches, conveyor guards. The vibratory finish prevents product adhesion and simplifies washdown.
• Telecommunications outdoor cabinets - 5G node enclosures, fiber distribution hubs, base station shelters. Corrosion resistance ensures 20+ year service life.
• Transportation & marine cases - Flight cases for avionics, waterproof equipment boxes for naval use, truck toolboxes exposed to road salts.
• Military & field gear - Ruggedized instrument cases, communication equipment containers, weapon storage boxes - where durability and security are paramount.

How It Works - Over‑Center Toggle with Spring Assist

The latch employs a mechanical over‑center toggle mechanism supplemented by an internal spring. When the lever is pushed down, the linkage moves past its center point, locking the hook in position. The spring assists in taking up any slack and provides a crisp “snap” feeling that confirms secure engagement. The spring also compensates for minor gasket compression or temperature‑induced panel movement, maintaining a rattle‑free seal. To release, lift the lever - the spring helps pop the toggle past center, reducing operator effort. This design ensures consistent clamping force up to 153kg without requiring tools or adjustment after installation.

Features & Technical Benefits

• Superior corrosion resistance - SUS304 stainless steel (not just plated) + vibratory finish for long‑term protection even in wet or chemical environments.
• Exceptional load capacity - 1500N (153kg) tensile load - suitable for heavy lids, pressurized doors, or enclosures subject to shock and vibration.
• Ultra‑compact & lightweight - 83.5mm length, 70.5mm height, 36g weight - fits tight spaces without sacrificing strength.
• Spring‑assisted operation - Smooth, one‑handed use; positive tactile feedback; reduces wear on hinge points.
• Easy integration - 4×Φ4mm mounting holes on a standard pattern; 1.4mm material thickness allows self‑tapping screws or through‑bolt mounting.
• OEM/ODM flexibility - Custom lever shapes, hole sizes, or laser engraving of logos available. Low MOQ for custom variants.

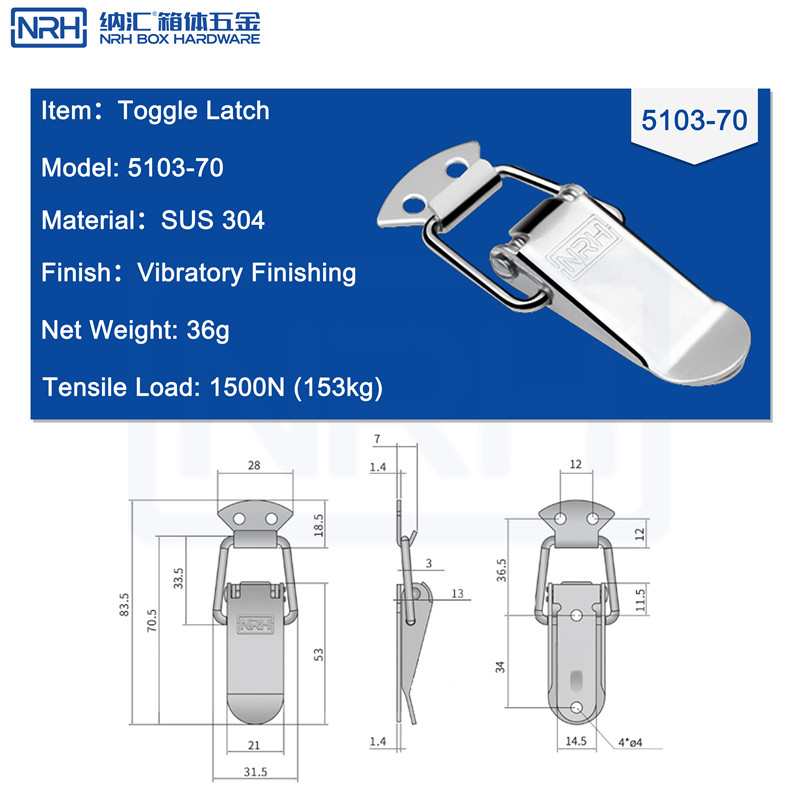

Technical Specifications (Based on Product Image)

• Brand: NRH Box Hardware
• Model Number: 5103-70
• Product Name: Toggle Latch (Spring-Assisted)
• Material: SUS304 Stainless Steel
• Finish: Vibratory Finishing
• Net Weight: 36g
• Tensile Load: 1500N (153kg)
• Key Dimensions: Overall Length: 83.5mm, Latch Body Height: 70.5mm, Mounting Plate Width: 33.5mm, Mounting Plate Length: 28mm, Hook Span: 36.5mm, Material Thickness: 1.4mm, Mounting Holes: 4×Φ4mm (approx; refer to drawing for exact tolerances)
• Compliance: ISO 9001, REACH, RoHS, SVHC (available upon request - contact us for details)
• Additional Info: Manufacturer Since 1996. OEM/ODM Services Available. 2D drawings and 3D CAD models on request.

Why Trust NRH

NRH Box Hardware has been designing and manufacturing industrial latches, hinges, and handles since 1996. Our products are used by leading brands in the medical, military, telecommunications, and food processing industries. The NRH 5103-70 is produced under a certified ISO 9001 quality management system, with every batch traceable. Compliance with REACH, RoHS, and SVHC is available upon request, ensuring your end products meet global environmental regulations. For engineers seeking a high‑strength, corrosion‑proof latching solution that will last decades, the NRH 5103-70 delivers unmatched value.
