NRH 5102-88 Toggle Latch | SUS304 Vibratory Finish 102kg Spring Assisted

NRH 5102-88 Toggle Latch - SUS304 Stainless Steel, Vibratory Finish, Spring-Assisted, 102kg Load

The NRH 5102-88 is a robust and reliable toggle latch designed to securely fasten two separate panels or doors together. Crafted from SUS304 stainless steel and finished with a smooth vibratory finishing, it offers superior corrosion resistance and a clean, easy‑to‑clean surface. The spring‑assisted mechanism ensures smooth operation and positive locking. Stamped with the “NRH” logo, this product represents the quality of a manufacturer with expertise since 1996. With a net weight of 61g and an exceptional 1000N (102kg) tensile load, it delivers high clamping force in a compact form factor (overall length 108mm).

Regarding international compliance (ISO 9001:2000, SGS, REACH, ROHS, SVHC), these standards can be supported based on customer requirements and applicable costs - please contact us for specific certification needs. OEM and ODM services are available for custom applications.

Key mounting details: overall length 108mm, with 4 mounting holes for secure installation. Detailed engineering drawings are available upon request.

Primary Applications

This versatile latch is engineered to join and secure two surfaces across a wide range of demanding industries:

• Military and defense: Field equipment cases, weapon storage containers, ruggedized communication boxes, and transport cases
• Aerospace and aviation: Flight cases for sensitive instruments, ground support equipment housings, and aircraft accessory panels
• Industrial machinery and enclosures: Access panels on CNC machines, electrical control cabinet doors, welding machine covers, and machinery guards
• Instrumentation and measurement: Test and measurement equipment cases, calibration device housings, and portable analyzer boxes
• Medical and laboratory equipment: Sterilization container lids, mobile cart drawers, and secure covers for sensitive instruments
• Transportation and logistics: Truck toolbox doors, shipping container access points, and protective cases for high‑value cargo
• Telecommunications and outdoor: Hinged doors on outdoor cabinets, network shelter panels, and field‑deployable equipment cases

How It Works - Operating Principle

This latch functions as a spring‑assisted toggle mechanism specifically designed to clamp two objects together. The base plate is mounted on one surface, while the pivoting lever with its hook engages a strike plate mounted on the opposing surface. When the lever is pressed down, the spring‑loaded action takes up slack, and the over‑center toggle mechanism pulls the two surfaces tightly together, creating a secure, rattle‑free joint. Lifting the lever releases the tension, allowing the surfaces to separate.

Features & Specifications

• Premium SUS304 construction: Stainless steel provides excellent corrosion resistance and durability for harsh environments
• Vibratory finish: Smooth, satin surface is easy to clean and resists scratches - ideal for hygiene‑sensitive applications
• Spring‑assisted clamping: Integrated spring ensures smooth operation and helps maintain consistent tension
• High strength‑to‑weight ratio: 61g net weight with an 1000N (102kg) tensile load - exceptional holding power
• Precision design: Detailed engineering drawings (overall length 108mm, 4 mounting holes) ensure accurate installation
• Trusted brand with compliance: Features the “NRH” stamp. Compliance available upon request. OEM/ODM supported

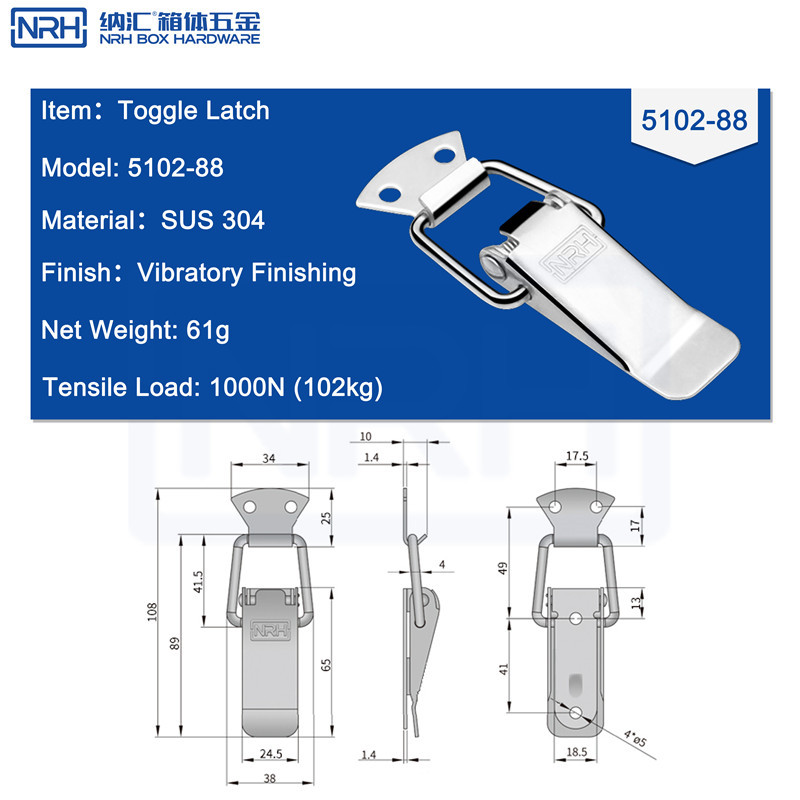

Technical Specifications (Based on Product Image)

• Brand: NRH Box Hardware
• Model Number: 5102-88
• Product Name: Toggle Latch
• Primary Material: SUS304 Stainless Steel
• Surface Finish: Vibratory Finishing
• Product Weight: 61g
• Tensile Load: 1000N (102kg)
• Key Dimensions: Overall Length: 108mm, Mounting Holes: 4 (refer to engineering drawing for exact positions and diameters)
• Compliance: ISO 9001:2000, SGS, REACH, ROHS, SVHC (available upon request - contact us for details)
• Additional Info: Manufacturer Since 1996. OEM/ODM Services Available. Detailed engineering drawings available on request.

Why Trust NRH

NRH Box Hardware has been producing industrial latches and hardware since 1996. The NRH 5102-88 is made under a certified quality management system. Compliance with ISO, SGS, REACH, ROHS, or SVHC is available upon request - please consult us for feasibility and pricing. Our long‑standing expertise in stainless steel toggle latches ensures a reliable, high‑strength fastening solution for military, aerospace, industrial, and medical applications.
