NRH R5104-59K-1 Toggle Latch with Lock Hole | Nickel-Plated SPCC Cabinet Latch
SKU: R5104-59K-1-FE-NI
In Stock
Quick Specifications
| SKU | R5104-59K-1-FE-NI |
|---|---|
| Weight | 28 g |
| Dimensions | 70x24x1 mm |
| Material | Cold-Rolled Carbon Steel (SPCC) |
| Load Capacity | 15 kg |
| Origin | China |
| Certification | CE, ISO9001, UL, SGS, RoHS |
| MOQ | 1 |
| Lead Time | 7-30 days |
| Sample | Available |
Unit Price
US $0.17
/ unit
Min. Order: 1
Factory Direct
ISO Certified
Global Shipping
NRH R5104-59K-1 Toggle Latch - SPCC Steel, Nickel Plating, with Lock Hole (Φ5mm), 15kg Load
The NRH R5104-59K-1 is a versatile and secure toggle latch designed with an integrated lock hole for added security. Crafted from SPCC steel with a durable nickel plating finish, this latch provides reliable closure with the option for padlock attachment. Weighing only 28g with a 147N (15kg) tensile load, it is a lightweight yet robust solution for various enclosures. Detailed engineering drawings ensure precise installation.
As a product of NRH Box Hardware (established since 1996), this latch is produced under a certified quality management system. Regarding international compliance (ISO 9001, SGS, REACH, RoHS, SVHC), these standards can be supported based on customer requirements and applicable costs - please contact us for specific certification needs. OEM and ODM services are available for custom applications.

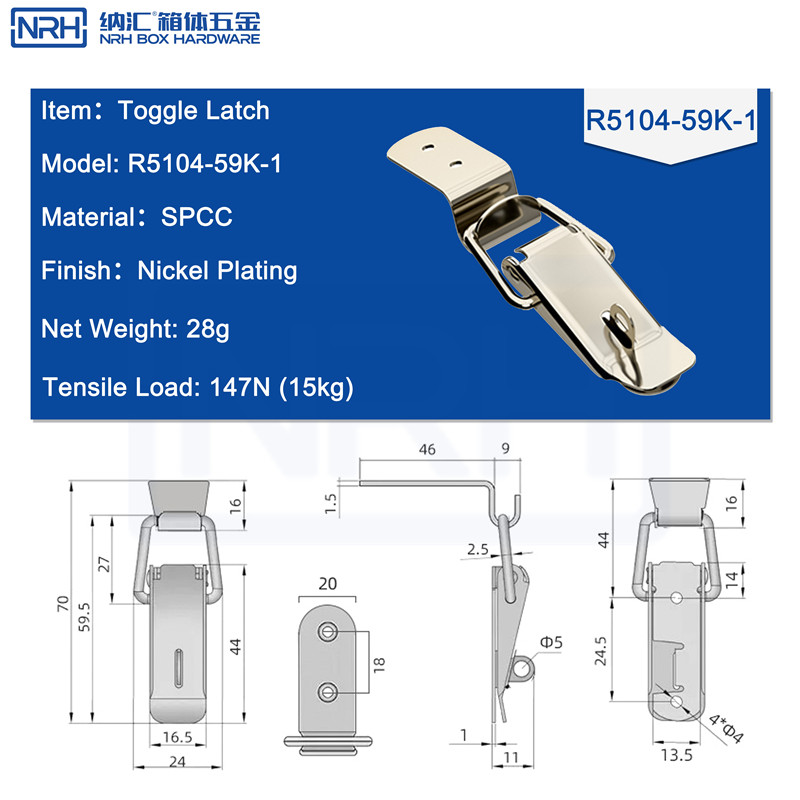

Key dimensions: overall height 70mm, length 59.5mm, width 24mm, with 4x Φ4mm mounting holes. Lock hole diameter: Φ5mm.
Primary Applications
This latch with lock hole is ideal for applications requiring both secure fastening and tamper resistance:
- Secure storage: Toolboxes, equipment cases, and storage cabinets where a padlock can be added
- Electrical and industrial panels: Control cabinet doors, network server racks, and machinery access panels
- Transport and logistics: Shipping containers, flight cases, and transport boxes for sensitive goods
- Communication enclosures: Outdoor telecom cabinets and field equipment boxes
How It Works - Operating Principle
This latch functions as a standard spring‑assisted toggle mechanism. The lever engages a hook with a strike plate, pulling two surfaces together. The key security feature is the integrated Φ5mm lock hole on the lever, which aligns with the base when closed, allowing a padlock or security seal to be inserted, preventing unauthorized opening.
Features & Specifications
- Integrated security feature: Dedicated Φ5mm lock hole for attaching a padlock or tamper‑evident seal
- Durable SPCC and nickel finish: SPCC steel with nickel plating for corrosion resistance and a clean appearance
- Lightweight and strong: Net weight 28g with a 147N (15kg) tensile load capacity
- Precision engineering: Detailed dimensions: height 70mm, length 59.5mm, width 24mm, 4x Φ4mm mounting holes
Technical Specifications
- Brand: NRH Box Hardware
- Model Number: R5104-59K-1
- Product Name: Toggle Latch
- Primary Material: SPCC Steel
- Surface Finish: Nickel Plating
- Lock Hole: Φ5mm
- Product Weight: 28g
- Tensile Load: 147N (15kg)
- Key Dimensions: Height: 70mm, Length: 59.5mm, Width: 24mm, Mounting Holes: 4 x Φ4mm
- Compliance: ISO 9001, SGS, REACH, RoHS, SVHC (available upon request - contact us for details)
- Additional Info: Manufacturer Since 1996. OEM/ODM Services Available.
Why Trust NRH
NRH Box Hardware has been producing industrial toggle latches and hardware since 1996. The NRH R5104-59K-1 is made under a certified quality management system. Compliance with ISO, SGS, REACH, RoHS, or SVHC is available upon request - please consult us for feasibility and pricing. Our long‑standing expertise in secure latches ensures a reliable fastening solution for storage, industrial panels, transport cases, and telecom enclosures.
| Brand | NRH |
|---|---|
| SKU | R5104-59K-1-FE-NI |
| Weight | 28 g |
| Dimensions | 70x24x1 mm |
| Material | Cold-Rolled Carbon Steel (SPCC) |
| Load Capacity | 15 kg |
| Country of Origin | China |
| Certifications | CE, ISO9001, UL, SGS, RoHS |
| Minimum Order Quantity | 1 |
| Production Lead Time | 7-30 days |
| Stock Status | In Stock |
Toggle Latches Applications
Widely used across industries - from industrial manufacturing to specialized fields, delivering reliable hardware solutions.
Manufacturing & Industrial
Latches for production line equipment enclosures, ensuring operational safety and secure closure.
Automotive & Transportation
Latches for transit cases, preventing loosening during long-distance road transport.
Electronics & Technology
Latches for electronic cabinets, providing dust-proof and tamper-resistant security.
Medical & Healthcare
Corrosion-resistant latches for medical device enclosures, meeting strict hygiene standards.
Construction & Engineering
Latches for toolboxes and outdoor equipment, built to withstand harsh weather conditions.
Aerospace
Lightweight, high-strength latches for aviation cases, meeting aerospace weight requirements.
Telecommunications
Security latches for telecom cabinets, preventing unauthorized access to critical infrastructure.
Marine & Offshore
316 stainless steel latches for marine enclosures, resisting saltwater corrosion in harsh sea conditions.
Energy & Power
Heavy-duty latches for power distribution cabinets, ensuring safe closure in high-voltage environments.
Defense & Military
MIL-SPEC latches for military cases, meeting rigorous defense-grade standards.
Logistics & Warehousing
Latches for shipping cases, reliable and durable through frequent loading and unloading cycles.
Security & Surveillance
Tamper-proof latches for surveillance cabinets, preventing unauthorized access to security equipment.
Rail & Transit
Fire-retardant latches for train equipment cabinets, meeting railway fire safety standards.
Oil & Gas
ATEX-certified explosion-proof latches for hazardous area enclosures.
Data Centers
Latches for server racks, providing secure access control for IT maintenance operations.
