NRH R5104-59-1 90° Toggle Latch | SPCC Nickel-Plated Spring Latch for Enclosures
Made to Order
The NRH R5104-59-1 is a robust 90-degree toggle latch engineered for securing cabinet doors, panels, and access points where a right-angle fastening solution is required. Constructed from durable SPCC steel and finished with a corrosion-resistant Nickel Plating, this latch offers reliable, spring-assisted operation at an economical price point. As a product from NRH Box Hardware, a specialist manufacturer since 1996, it meets high standards of quality and is backed by certifications including ISO 9001:2000, SGS, REACH, RoHS, and SVHC. With a net weight of 31g and a tensile load of 147N (15kg), it provides a dependable clamping force for a wide range of applications.
Primary Applications:
This 90-degree latch is designed for applications where panels meet at a perpendicular angle. It is ideal for:
-
Electrical Enclosures: Doors on industrial control panels, power distribution cabinets, and server racks.
-
Machinery & Equipment: Guards, covers, and access panels on manufacturing and processing machinery.
-
Transport Cases: Light to medium-duty carrying cases for tools, instruments, and electronic equipment.
-
Telecom Cabinets: Securing doors on outdoor and indoor network equipment cabinets.
-
Furniture & Storage: Locking mechanisms for industrial shelving, storage boxes, and specialized cabinets.
How It Works (Operating Principle):
This latch utilizes a spring-assisted toggle mechanism to clamp two surfaces together at a 90-degree angle. The base plate is mounted on one surface (e.g., the side of a cabinet), while the pivoting lever engages with a strike plate mounted on the perpendicular surface (e.g., the door). Pushing the lever down engages the spring and activates the over-center toggle action, pulling the door firmly shut against the frame. Lifting the lever releases the clamping force, allowing the door to open.
Features & Specifications:
-
Durable SPCC Construction: Offers good strength and formability for reliable performance.
-
Protective Nickel Plating: Provides a shiny, corrosion-resistant finish that enhances durability and appearance.
-
90-Degree Spring Clamping: The built-in spring ensures smooth operation and maintains tension for a secure, rattle-free closure on perpendicular panels.
-
Compact & Lightweight: Weighing just 31g, it delivers an effective 147N (15kg) tensile load capacity without adding significant weight.
-

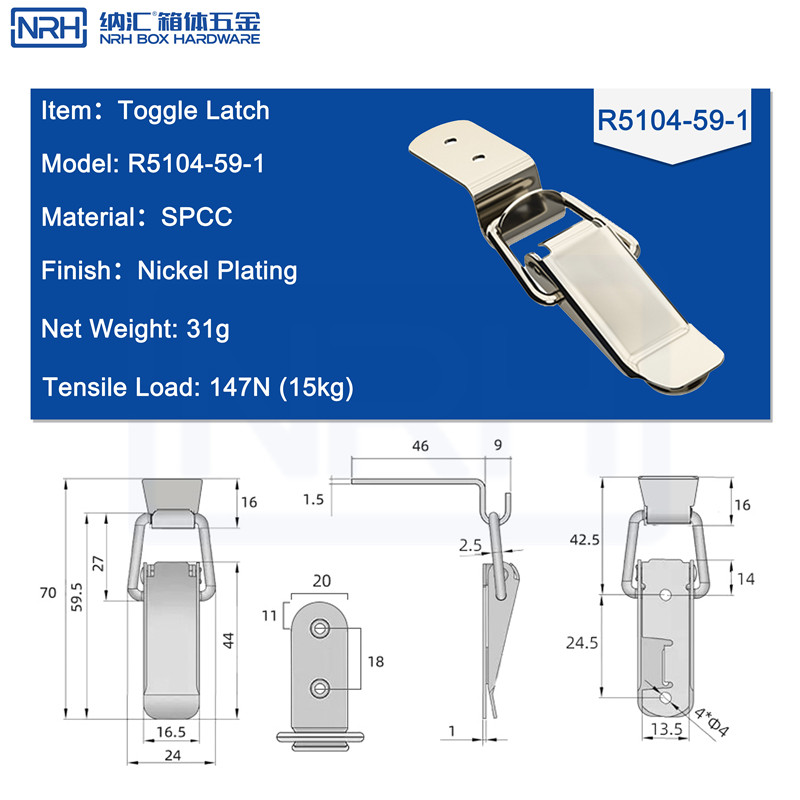

Precision Engineering: Detailed technical drawings ensure exact fitment. Key dimensions include an Overall Height of 70mm, Mounting Centers of 59.5mm, and mounting holes of Φ4mm.
-
Certified Quality & Brand Heritage: Features the “NRH” stamp. Manufactured under an ISO 9001:2000 certified system and complies with SGS, REACH, RoHS, and SVHC standards. OEM/ODM services are available.
Technical Specifications:
|
Item
|
Specification
|
|---|---|
|
Brand
|
NRH Box Hardware
|
|
Model Number
|
R5104-59-1
|
|
Product Name
|
Toggle Latch (90°)
|
|
Primary Material
|
SPCC Steel
|
|
Surface Finish
|
Nickel Plating
|
|
Product Weight
|
31g
|
|
Tensile Load
|
147N (15kg)
|
|
Key Dimensions
|
Overall Height: 70mm, Mounting Centers: 59.5mm, Width: 20mm, Various detailed lengths and hole positions as per drawing (e.g., 46mm, 42.5mm, 44mm, 24mm, etc.). Mounting Hole Diameter: Φ4mm (4 holes).
|
|
Compliance
|
ISO 9001:2000, SGS, REACH, RoHS, SVHC
|
|
Additional Info
|
Manufacturer Since 1996. OEM/ODM Services Available.
|
| Brand | NRH |
|---|---|
| Country of Origin | China |
| Certifications | CE, ISO9001, UL, SGS, RoHS |
| Minimum Order Quantity | 1 |
| Production Lead Time | 7-30 days |
| Stock Status | Made to Order |
Toggle Latches Applications
Widely used across industries - from industrial manufacturing to specialized fields, delivering reliable hardware solutions.
Manufacturing & Industrial
Latches for production line equipment enclosures, ensuring operational safety and secure closure.
Automotive & Transportation
Latches for transit cases, preventing loosening during long-distance road transport.
Electronics & Technology
Latches for electronic cabinets, providing dust-proof and tamper-resistant security.
Medical & Healthcare
Corrosion-resistant latches for medical device enclosures, meeting strict hygiene standards.
Construction & Engineering
Latches for toolboxes and outdoor equipment, built to withstand harsh weather conditions.
Aerospace
Lightweight, high-strength latches for aviation cases, meeting aerospace weight requirements.
Telecommunications
Security latches for telecom cabinets, preventing unauthorized access to critical infrastructure.
Marine & Offshore
316 stainless steel latches for marine enclosures, resisting saltwater corrosion in harsh sea conditions.
Energy & Power
Heavy-duty latches for power distribution cabinets, ensuring safe closure in high-voltage environments.
Defense & Military
MIL-SPEC latches for military cases, meeting rigorous defense-grade standards.
Logistics & Warehousing
Latches for shipping cases, reliable and durable through frequent loading and unloading cycles.
Security & Surveillance
Tamper-proof latches for surveillance cabinets, preventing unauthorized access to security equipment.
Rail & Transit
Fire-retardant latches for train equipment cabinets, meeting railway fire safety standards.
Oil & Gas
ATEX-certified explosion-proof latches for hazardous area enclosures.
Data Centers
Latches for server racks, providing secure access control for IT maintenance operations.
What is the minimum order quantity?
Our minimum order quantity is 1 units. For larger orders, please contact us for volume pricing.
What payment methods do you accept?
We accept T/T, L/C, PayPal, and Western Union. Payment terms can be negotiated based on order size and business relationship.
Do you offer custom OEM/ODM services?
Yes, we provide OEM and ODM services. Please contact our sales team to discuss your specific requirements.
What are the shipping options?
We offer global shipping via DHL, FedEx, UPS, and sea freight. Shipping costs are calculated based on destination and order quantity.
